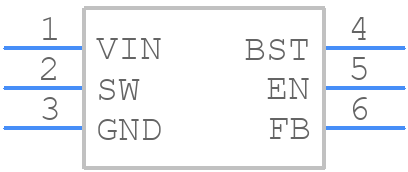

Part Symbol
-
Footprint
-

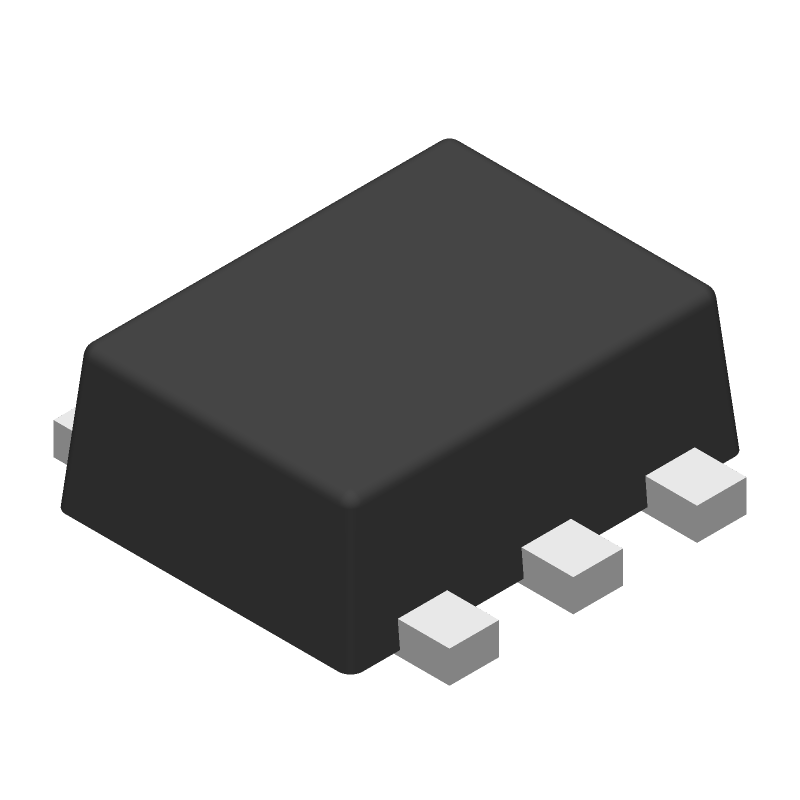

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS562207DRLR by Texas Instruments
Results Overview of TPS562207DRLR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS562207DRLR Information
TPS562207DRLR by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS562207DRLR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TPS562207DRLRCT-ND
|
DigiKey | IC REG BUCK ADJ 2A SOT563 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3984 In Stock |
|
$0.0921 / $0.2500 | Buy Now |
|
DISTI #
595-TPS562207DRLR
|
Mouser Electronics | Switching Voltage Regulators 4.3-V to 17-V input 2-A synchronous buc RoHS: Compliant | 14733 |
|
$0.0910 / $0.2500 | Buy Now |
|
DISTI #
TPS562207DRLR
|
TME | PMIC, DC/DC converter, Uin: 4.3÷17VDC, Uout: 0.804÷7VDC, 2A, SMD Min Qty: 5 | 0 |
|
$0.1860 / $0.2650 | RFQ |
|
|
LCSC | Step-down type 4.3V17V 2A 804mV7V SOT-563 DC-DC Converters ROHS | 1015 |
|
$0.0565 / $0.0666 | Buy Now |
|
|
Win Source Electronics | 4.3-V TO 17-V INPUT, 2-A SYNCHRO | 61000 |
|
$0.1085 / $0.1625 | Buy Now |
Part Details for TPS562207DRLR
TPS562207DRLR CAD Models
TPS562207DRLR Part Data Attributes
|
|
TPS562207DRLR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS562207DRLR
Texas Instruments
4.3-V to 17-V input, 2-A synchronous buck converter in SOT563 6-SOT-5X3 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOT-5X3, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2020-06-25 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 17 V | |
| Input Voltage-Min | 4.3 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-F6 | |
| JESD-609 Code | e3 | |
| Length | 1.6 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2 A | |
| Output Voltage-Max | 7 V | |
| Output Voltage-Min | 0.804 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSOF | |
| Package Equivalence Code | FL6,.04,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.6 mm | |
| Supply Current-Max (Isup) | 0.75 mA | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 580 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.2 mm |
Alternate Parts for TPS562207DRLR
This table gives cross-reference parts and alternative options found for TPS562207DRLR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS562207DRLR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS562207SDRLR | Texas Instruments | $0.2210 | 4.3-V to 17-V input, 2-A FCCM mode synchronous buck converter in SOT563 package 6-SOT-5X3 -40 to 125 | TPS562207DRLR vs TPS562207SDRLR |
| TPS562202DRLR | Texas Instruments | $0.2210 | 4.3-V to 17-V input, 2-A output, synchronous step-down voltage converter 6-SOT-5X3 -40 to 125 | TPS562207DRLR vs TPS562202DRLR |
| TPS562202SDRLR | Texas Instruments | $0.2215 | 4.3-V to 17-V input, 2-A, ECO mode synchronous buck converter in SOT563 package 6-SOT-5X3 -40 to 125 | TPS562207DRLR vs TPS562202SDRLR |
| AP65251WU-7 | Diodes Incorporated | Check for Price | Switching Regulator, | TPS562207DRLR vs AP65251WU-7 |
TPS562207DRLR Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TPS562207DRLR is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
-
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value. A 10uF to 22uF ceramic capacitor is recommended.
-
The minimum input capacitance required for the TPS562207DRLR is 1uF, but it's recommended to use a 2.2uF to 4.7uF ceramic capacitor for optimal performance.
-
The TPS562207DRLR is rated for operation up to 125°C, but it's essential to ensure that the device is properly cooled and the junction temperature is kept below 125°C to ensure reliability and prevent thermal shutdown.
-
The output voltage of the TPS562207DRLR can be calculated using the formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors used in the feedback network.
