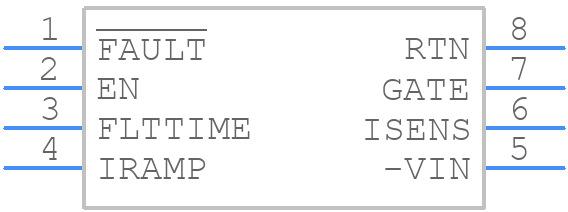

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS2391DGKRG4 by Texas Instruments
Results Overview of TPS2391DGKRG4 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPS2391DGKRG4 Information
TPS2391DGKRG4 by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS2391DGKRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-TPS2391DGKRG4
|
Mouser Electronics | Hot Swap Voltage Controllers Simple-48V Hot Swap Controller ALT 595-TPS2391DGKR RoHS: Compliant | 0 |
|
$1.7900 / $4.2500 | Order Now |
|
|
Vyrian | Other Function Semiconductors | 255 |
|
RFQ |
Part Details for TPS2391DGKRG4
TPS2391DGKRG4 CAD Models
TPS2391DGKRG4 Part Data Attributes
|
|
TPS2391DGKRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS2391DGKRG4
Texas Instruments
-36-V to -80-V hot swap controller with auto retry 8-VSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | MSOP | |
| Package Description | TSSOP, TSSOP8,.19 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | -36 V TO -80 V WIDE INPUT SUPPLY RANGE | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | HOT SWAP CONTROLLER | |
| Input Voltage-Max | -36 V | |
| Input Voltage-Min | -80 V | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 2 | |
| Neg Supply Voltage-Nom (Vsup) | -48 V | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 500 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max (Isup) | 1.5 mA | |
| Supply Voltage-Max (Vsup) | -36 V | |
| Supply Voltage-Min (Vsup) | -80 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +1.35V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for TPS2391DGKRG4
This table gives cross-reference parts and alternative options found for TPS2391DGKRG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS2391DGKRG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS2391DGKG4 | Texas Instruments | Check for Price | Simple -48V Hot Swap Controller 8-VSSOP -40 to 85 | TPS2391DGKRG4 vs TPS2391DGKG4 |
