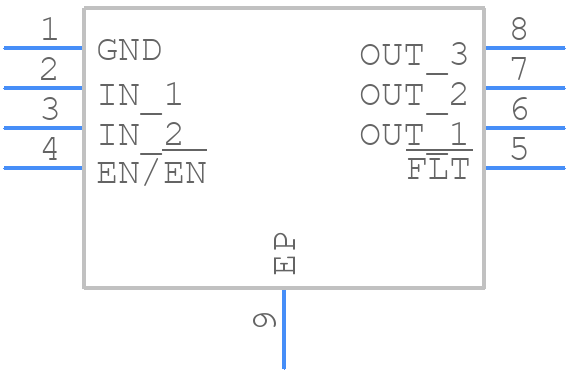

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS2065CDGN by Texas Instruments
Results Overview of TPS2065CDGN by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS2065CDGN Information
TPS2065CDGN by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS2065CDGN | Texas Instruments | Single Channel, Current-Limited USB Power Distribution Switch 8-MSOP-PowerPAD -40 to 85 | |
| TPS2065CDGNR | Texas Instruments | Single Channel, Current-Limited USB Power Distribution Switch 8-MSOP-PowerPAD -40 to 85 | |
| TPS2065CDGNR-2 | Texas Instruments | Single Channel, Current-Limited USB Power Distribution Switch 8-MSOP-PowerPAD -40 to 85 |
Price & Stock for TPS2065CDGN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-29508-5-ND
|
DigiKey | IC PWR SWITCH N-CHAN 1:1 8MSOP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
4175 In Stock |
|
$0.4666 / $1.0100 | Buy Now |
|
DISTI #
595-TPS2065CDGN
|
Mouser Electronics | Power Switch ICs - Power Distribution SGL CH CURRENT-LTD U SB PWR DISTR SWITCH A 595-TPS2065CDGNR RoHS: Compliant | 13801 |
|
$0.4380 / $1.0100 | Buy Now |
Part Details for TPS2065CDGN
TPS2065CDGN CAD Models
TPS2065CDGN Part Data Attributes
|
|
TPS2065CDGN
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS2065CDGN
Texas Instruments
1A loading, 4.5-5.5V, 86mΩ USB power switch, active-high, output discharge, reverse blocking 8-HVSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | MSOP | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.5 V | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
TPS2065CDGN Frequently Asked Questions (FAQ)
-
The maximum current rating of the TPS2065CDGN is 2A, but it can deliver up to 3A for short durations.
-
To ensure stability, a minimum of 10uF ceramic capacitor is recommended between the VIN and GND pins, and a 1uF ceramic capacitor between the VOUT and GND pins.
-
The minimum input voltage required for the TPS2065CDGN is 2.7V, but it's recommended to use a minimum of 3V for optimal performance.
-
The TPS2065CDGN is rated for operation up to 85°C, but it's recommended to derate the output current at higher temperatures to prevent overheating.
-
The output voltage of the TPS2065CDGN can be adjusted by using a resistive divider network between the VOUT and ADJ pins, with a minimum of 1kΩ resistor between the ADJ pin and GND.
