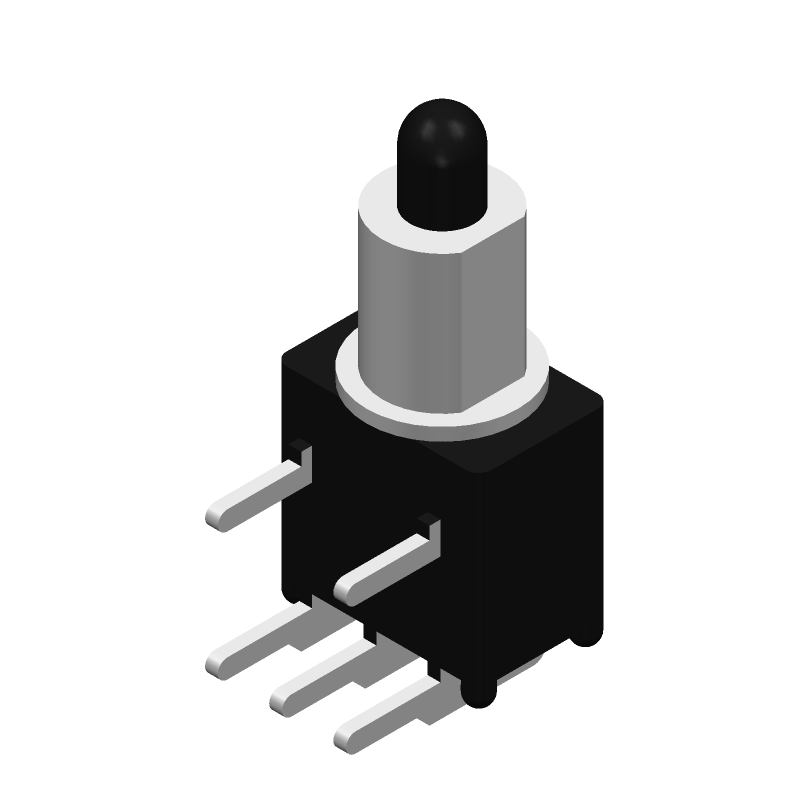

Part Details for TPB11CGRA004 by TE Connectivity
Results Overview of TPB11CGRA004 by TE Connectivity
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPB11CGRA004 Information
TPB11CGRA004 by TE Connectivity is an Other Switch.
Other Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for TPB11CGRA004
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
16M2482
|
Newark | Switch, Pushbutton, Spst-No, 20V, Product Range:Tp Series, Contact Configuration:Spst, Switch Operation:Momentary, Pushbutton Actuator Style:Round Raised, Actuator/Cap Colour:Black, Contact Voltage Vac:20V, Contact Voltage Vdc:20V Rohs Compliant: Yes |Alcoswitch Te Connectivity TPB11CGRA004 RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$4.4200 | Buy Now |
|
DISTI #
506-TPB11CGRA004
|
Mouser Electronics | Pushbutton Switches SPST NO MOM R/A RoHS: Compliant | 1014 |
|
$4.4200 / $6.2300 | Buy Now |
|
|
Onlinecomponents.com | Switch Push Button OFF Mom OFF SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Loose Piece RoHS: Compliant |
60083 In Stock |
|
$4.2690 / $4.8760 | Buy Now |
|
DISTI #
17481921
|
Verical | Switch Push Button OFF Mom OFF SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Thru-Hole PC Pins Bulk Min Qty: 12 Package Multiple: 1 | Americas - 53849 |
|
$4.1700 / $5.4500 | Buy Now |
|
DISTI #
69731351
|
Verical | Switch Push Button OFF Mom OFF SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Thru-Hole PC Pins Bulk Min Qty: 12 Package Multiple: 1 | Americas - 4000 |
|
$4.1700 / $5.4500 | Buy Now |
|
DISTI #
69896438
|
Verical | Switch Push Button OFF Mom OFF SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Thru-Hole PC Pins Bulk Min Qty: 25 Package Multiple: 25 Date Code: 2132 | Americas - 2225 |
|
$5.3333 / $6.3459 | Buy Now |
|
DISTI #
1825097-6
|
TTI | Pushbutton Switches SWITCH PUSHBUTTON RoHS: Compliant pbFree: Pb-Free Min Qty: 2 Package Multiple: 1 Container: Bulk |
Americas - 644 In Stock |
|
$4.9200 | Buy Now |
|
DISTI #
TPB11CGRA004
|
IBS Electronics | TPB11CGRA004 by TE CONNECTIVITY / ALCOSWITCH is a SPST NO momentary pushbutton switch with right-angle mounting, designed for reliable performance in various applications. Min Qty: 25 Package Multiple: 1 | 60083 |
|
$5.1500 / $6.3076 | Buy Now |
|
DISTI #
000000000002136873
|
Sager | Pushbutton Switches SPST NO MOM R/A | 0 |
|
Buy Now | |
|
|
Master Electronics | Switch Push Button OFF Mom OFF SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Loose Piece RoHS: Compliant |
60083 In Stock |
|
$4.2690 / $4.8760 | Buy Now |
Part Details for TPB11CGRA004
TPB11CGRA004 CAD Models
TPB11CGRA004 Part Data Attributes
|
|
TPB11CGRA004
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
TPB11CGRA004
TE Connectivity
Switch, SPST, Momentary, 0.4A, 20VDC, Panel Mount
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | not_compliant | |
| Samacsys Manufacturer | TE Connectivity | |
| Actuator Angle | ||
| Actuator Color | BLACK | |
| Actuator Length | 0.134 inch | |
| Actuator Material | POLYETHYLENE | |
| Actuator Type | PUSHBUTTON | |
| Additional Feature | UL | |
| Body Breadth | 5.2324 mm | |
| Body Height | 9.5758 mm | |
| Body Length or Diameter | 8.128 mm | |
| Bushing Diameter | 0.236 inch | |
| Bushing Length | 0.216 inch | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD | |
| Contact Current(AC)-Max | 0.4 A | |
| Contact Current(DC)-Max | 0.4 A | |
| Contact (DC) Max Power Rating R Load | 0.4VA@20VDC | |
| Contact Function | OFF-(ON) | |
| Contact Resistance | 0.02 mΩ | |
| Contact Timing | BREAK-BEFORE-MAKE | |
| Contact Voltage(DC)-Max | 20 V | |
| Dielectric Withstand Volts | 1000VRMS V | |
| Electrical Life | 100000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | GOLD OVER NICKEL | |
| Housing Material | POLYETHYLENE | |
| Insulation Resistance | 1000000000 Ω | |
| Mounting Feature | PANEL MOUNT | |
| Number of Independent Keys | 1 | |
| Operating Force-Max | 3.92 N | |
| Operating Temperature-Max | 65 °C | |
| Operating Temperature-Min | -30 °C | |
| PCB Hole Count | 4 | |
| Packing Method | BULK | |
| Sealing | EPOXY TERMINAL SEALED | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
