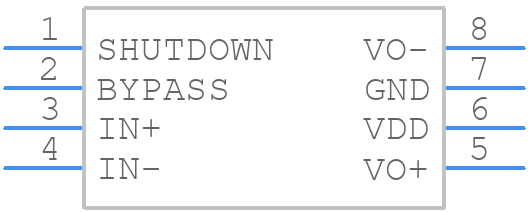

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPA301DRG4 by Texas Instruments
Results Overview of TPA301DRG4 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
Price & Stock for TPA301DRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 892 |
|
RFQ |
Part Details for TPA301DRG4
TPA301DRG4 CAD Models
TPA301DRG4 Part Data Attributes
|
|
TPA301DRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPA301DRG4
Texas Instruments
350-mW, mono, Class-AB audio amplifier 8-SOIC -40 to 85
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP8,.25 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Bandwidth-Nom | 20 kHz | |
| Consumer IC Type | AUDIO AMPLIFIER | |
| Harmonic Distortion | 0.5% | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Power-Nom | 0.7 W | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 1.5 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for TPA301DRG4
This table gives cross-reference parts and alternative options found for TPA301DRG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPA301DRG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPA301DR | Texas Instruments | $0.4096 | 350-mW, mono, Class-AB audio amplifier 8-SOIC -40 to 85 | TPA301DRG4 vs TPA301DR |
| TPA301D | Texas Instruments | $0.8544 | 350-mW, mono, Class-AB audio amplifier 8-SOIC -40 to 85 | TPA301DRG4 vs TPA301D |
| TPA301DG4 | Texas Instruments | Check for Price | 350-mW Mono Class-AB Audio Amplifier 8-SOIC -40 to 85 | TPA301DRG4 vs TPA301DG4 |
| LM386MX-1 | National Semiconductor Corporation | Check for Price | IC 0.325 W, 1 CHANNEL, AUDIO AMPLIFIER, PDSO8, SOIC-8, Audio/Video Amplifier | TPA301DRG4 vs LM386MX-1 |
| LM386D | Samsung Semiconductor | Check for Price | Audio Amplifier, 0.65W, 1 Channel(s), 1 Func, Bipolar, PDSO8, SOP-8 | TPA301DRG4 vs LM386D |
| NJM387D | New Japan Radio Co Ltd | Check for Price | Video Preamplifier, 2 Channel(s), Bipolar, PDIP8, 0.300 INCH, PLASTIC, DIP-8 | TPA301DRG4 vs NJM387D |
| LM387N | NXP Semiconductors | Check for Price | IC VIDEO PREAMPLIFIER, PDIP8, Audio/Video Amplifier | TPA301DRG4 vs LM387N |
| NJM2070M | New Japan Radio Co Ltd | Check for Price | Audio Amplifier, 0.5W, 1 Channel(s), 1 Func, Bipolar, PDSO8, DMP-8 | TPA301DRG4 vs NJM2070M |
| LM386M-1 | National Semiconductor Corporation | Check for Price | IC 0.325 W, 1 CHANNEL, AUDIO AMPLIFIER, PDSO8, SOIC-8, Audio/Video Amplifier | TPA301DRG4 vs LM386M-1 |
| LM386MMX-1 | National Semiconductor Corporation | Check for Price | IC 0.325 W, 1 CHANNEL, AUDIO AMPLIFIER, PDSO8, 0.118 INCH, MSOP-8, Audio/Video Amplifier | TPA301DRG4 vs LM386MMX-1 |
