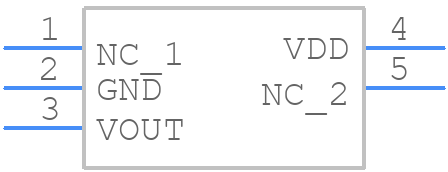

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMP235AEDCKTQ1 by Texas Instruments
Results Overview of TMP235AEDCKTQ1 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
TMP235AEDCKTQ1 Information
TMP235AEDCKTQ1 by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for TMP235AEDCKTQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TMP235AEDCKTQ1CT-ND
|
DigiKey | LOW-POWER HIGH-ACCURACY ANALOG O Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
37286 In Stock |
|
$0.4985 / $0.9100 | Buy Now |
|
|
Vyrian | Sensors & Transducers | 19941 |
|
RFQ |
Part Details for TMP235AEDCKTQ1
TMP235AEDCKTQ1 CAD Models
TMP235AEDCKTQ1 Part Data Attributes
|
|
TMP235AEDCKTQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMP235AEDCKTQ1
Texas Instruments
Automotive Grade ±1.5°C 2.3V to 5.5V analog output temperature sensor with +10 mV/°C gain 5-SC70 -40 to 150
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2019-05-09 | |
| Samacsys Manufacturer | Texas Instruments | |
| Accuracy-Max (Cel) | 1.5 Cel | |
| Body Breadth | 1.25 mm | |
| Body Height | 0.9 mm | |
| Body Length or Diameter | 2 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 5 | |
| Operating Current-Max | 0.012 mA | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Nom | 500 µA | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape/Style | RECTANGULAR | |
| Screening Level | AEC-Q100 | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Termination Type | SOLDER |
