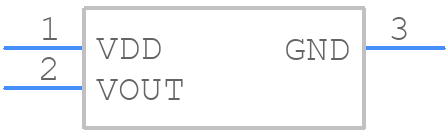

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMP235A4DBZR by Texas Instruments
Results Overview of TMP235A4DBZR by Texas Instruments
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
TMP235A4DBZR Information
TMP235A4DBZR by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TMP235A4DBZR | Texas Instruments | Precision Analog Output Temperature Sensor 3-SOT-23 -40 to 150 |
Price & Stock for TMP235A4DBZR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-51838-1-ND
|
DigiKey | LOW-POWER HIGH-ACCURACY ANALOG O Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
12561 In Stock |
|
$0.1529 / $0.3200 | Buy Now |
|
DISTI #
595-TMP235A4DBZR
|
Mouser Electronics | Board Mount Temperature Sensors 1C analog temperatur e sensor 10 mV/C 3- A 595-TMP235A4DBZT RoHS: Compliant | 8824 |
|
$0.1640 / $0.3200 | Buy Now |
|
DISTI #
J56:1989_13165099
|
Arrow Electronics | Temperature Sensor Analog 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2506 | Europe - 21000 |
|
$0.1471 / $0.1653 | Buy Now |
|
DISTI #
V72:2272_22716679
|
Arrow Electronics | Temperature Sensor Analog 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2230 Container: Cut Strips | Americas - 2696 |
|
$0.1452 / $0.2630 | Buy Now |
|
DISTI #
63510636
|
Verical | Temperature Sensor Analog 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 52 Package Multiple: 1 Date Code: 2230 | Americas - 2696 |
|
$0.1452 / $0.2129 | Buy Now |
|
|
Quest Components | ANALOG VOLTAGE OUTPUT SENSOR, 2CEL, CMOS, RECTANGULAR, 3 PIN, SURFACE MOUNT | 325 |
|
$0.1320 / $0.1980 | Buy Now |
|
|
Cytech Systems Limited | LOW-POWER HIGH-ACCURACY ANALOG O | 9000 |
|
RFQ | |
|
|
LCSC | SOT-23 Temperature Sensors ROHS | 1230 |
|
$0.1669 / $0.3000 | Buy Now |
|
|
Vyrian | Sensors & Transducers | 48720 |
|
RFQ | |
|
|
Win Source Electronics | LOW-POWER HIGH-ACCURACY ANALOG O / Temperature Sensor Analog, Local -40°C ~ 150°C 10mV/°C SOT-23-3 | 76530 |
|
$0.1171 / $0.1512 | Buy Now |
Part Details for TMP235A4DBZR
TMP235A4DBZR CAD Models
TMP235A4DBZR Part Data Attributes
|
|
TMP235A4DBZR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMP235A4DBZR
Texas Instruments
1C analog temperature sensor, 10 mV/C 3-SOT-23 -40 to 150
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2018-08-26 | |
| Samacsys Manufacturer | Texas Instruments | |
| Accuracy-Max (Cel) | 2 Cel | |
| Additional Feature | SHORT CIRCUIT PROTECTION | |
| Body Breadth | 1.3 mm | |
| Body Height | 0.95 mm | |
| Body Length or Diameter | 2.92 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 3 | |
| Operating Current-Max | 0.012 mA | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Termination Type | SOLDER |
Alternate Parts for TMP235A4DBZR
This table gives cross-reference parts and alternative options found for TMP235A4DBZR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TMP235A4DBZR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TMP235A4DCKT | Texas Instruments | $0.2260 | 1C analog temperature sensor, 10 mV/C 5-SC70 -40 to 150 | TMP235A4DBZR vs TMP235A4DCKT |
| TMP235A4DBZT | Texas Instruments | $0.2529 | 1C analog temperature sensor, 10 mV/C 3-SOT-23 -40 to 150 | TMP235A4DBZR vs TMP235A4DBZT |
| S-8110AMP | Seiko Epson Corporation | Check for Price | Analog Voltage Output Sensor, 5Cel, Rectangular, Surface Mount, SOT-23, 3 PIN | TMP235A4DBZR vs S-8110AMP |
| S-8110AMP | Seiko Instruments Inc | Check for Price | Analog Voltage Output Sensor, 1.27V Min, 1.35V Max, CMOS, Rectangular, 3 Pin, Surface Mount, PLASTIC PACKAGE, SC-82, 4 PIN | TMP235A4DBZR vs S-8110AMP |
TMP235A4DBZR Frequently Asked Questions (FAQ)
-
The typical power consumption of the TMP235A4DBZR is 10 μA, making it suitable for battery-powered applications.
-
The TMP235A4DBZR has an accuracy of ±1°C from -20°C to 100°C, and ±2°C from -40°C to 125°C, making it suitable for most industrial and commercial applications.
-
The response time of the TMP235A4DBZR is typically 10 seconds, allowing for fast and accurate temperature measurements.
-
Yes, the TMP235A4DBZR is compatible with both 3.3V and 5V systems, making it a versatile temperature sensor for various applications.
-
No, the TMP235A4DBZR does not require any external components, making it a simple and easy-to-use temperature sensor.
