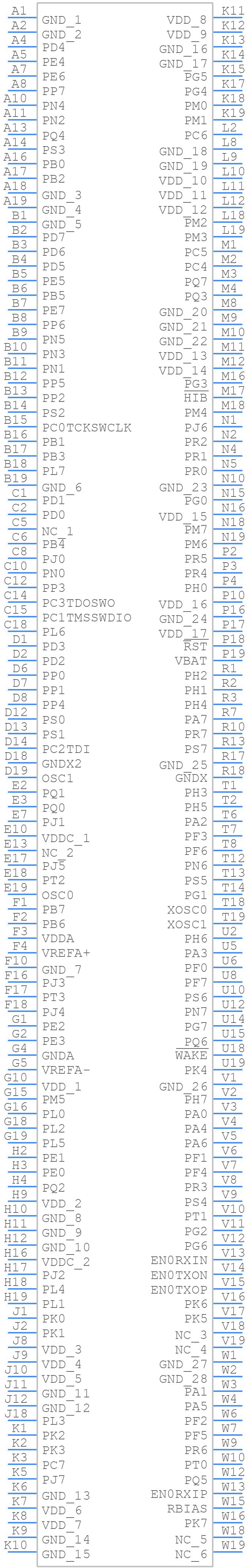

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TM4C129XNCZADI3R by Texas Instruments
Results Overview of TM4C129XNCZADI3R by Texas Instruments
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TM4C129XNCZADI3R Information
TM4C129XNCZADI3R by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TM4C129XNCZADI3R | Texas Instruments | IoT enabled High performance 32-bit ARM® Cortex®-M4F based MCU 212-NFBGA -40 to 85 |
Price & Stock for TM4C129XNCZADI3R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-43661-1-ND
|
DigiKey | IC MCU 32BIT 1MB FLASH 212NFBGA Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1449 In Stock |
|
$14.9887 / $23.2800 | Buy Now |
|
DISTI #
595-TM4C129XNCZADI3R
|
Mouser Electronics | ARM Microcontrollers - MCU Tiva C Series Microc ontroller A 595-TM4C129XNCZADI3 RoHS: Compliant | 615 |
|
$14.9800 / $23.2000 | Buy Now |
|
DISTI #
V72:2272_07402881
|
Arrow Electronics | MCU 32-bit ARM Cortex M4F 1MB Flash 3.3V 212-Pin NFBGA T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2426 Container: Cut Strips | Americas - 86 |
|
$14.6400 / $23.0300 | Buy Now |
|
DISTI #
83638744
|
Verical | MCU 32-bit ARM Cortex M4F 1MB Flash 3.3V 212-Pin NFBGA T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2426 | Americas - 86 |
|
$14.6400 / $23.0300 | Buy Now |
|
|
Bristol Electronics | 4108 |
|
RFQ | ||
|
|
Chip-Germany GmbH | RoHS: Not Compliant | 2988 |
|
RFQ | |
|
|
Cytech Systems Limited | IC MCU 32BIT 1MB FLASH 212NFBGA | 1000 |
|
RFQ | |
|
|
LCSC | ARM-MSeries 120MHz NFBGA-212 Microcontrollers (MCU/MPU/SOC) ROHS | 4 |
|
$14.0744 / $14.5045 | Buy Now |
|
|
Vyrian | Peripheral ICs | 2138 |
|
RFQ | |
|
|
Win Source Electronics | IC MCU 32BIT 1MB FLASH 212NFBGA | 10200 |
|
$8.4373 / $10.8974 | Buy Now |
Part Details for TM4C129XNCZADI3R
TM4C129XNCZADI3R CAD Models
TM4C129XNCZADI3R Part Data Attributes
|
|
TM4C129XNCZADI3R
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TM4C129XNCZADI3R
Texas Instruments
32-bit Arm Cortex-M4F based MCU with 120-MHz, 1-MB Flash, 256-KB RAM, USB, ENET MAC+PHY, LCD, AES 212-NFBGA -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | NFBGA-212 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Address Bus Width | 28 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | CORTEX-M4F | |
| Clock Frequency-Max | 25 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | 32 | |
| Format | FLOATING POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PBGA-B212 | |
| JESD-609 Code | e1 | |
| Length | 10 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 32 | |
| Number of External Interrupts | ||
| Number of I/O Lines | 140 | |
| Number of Serial I/Os | 3 | |
| Number of Terminals | 212 | |
| Number of Timers | 8 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (bytes) | 262144 | |
| RAM (words) | 256 | |
| ROM (words) | 1048576 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1 mm | |
| Speed | 120 MHz | |
| Supply Current-Max | 133.4 mA | |
| Supply Voltage-Max | 1.32 V | |
| Supply Voltage-Min | 1.2 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
