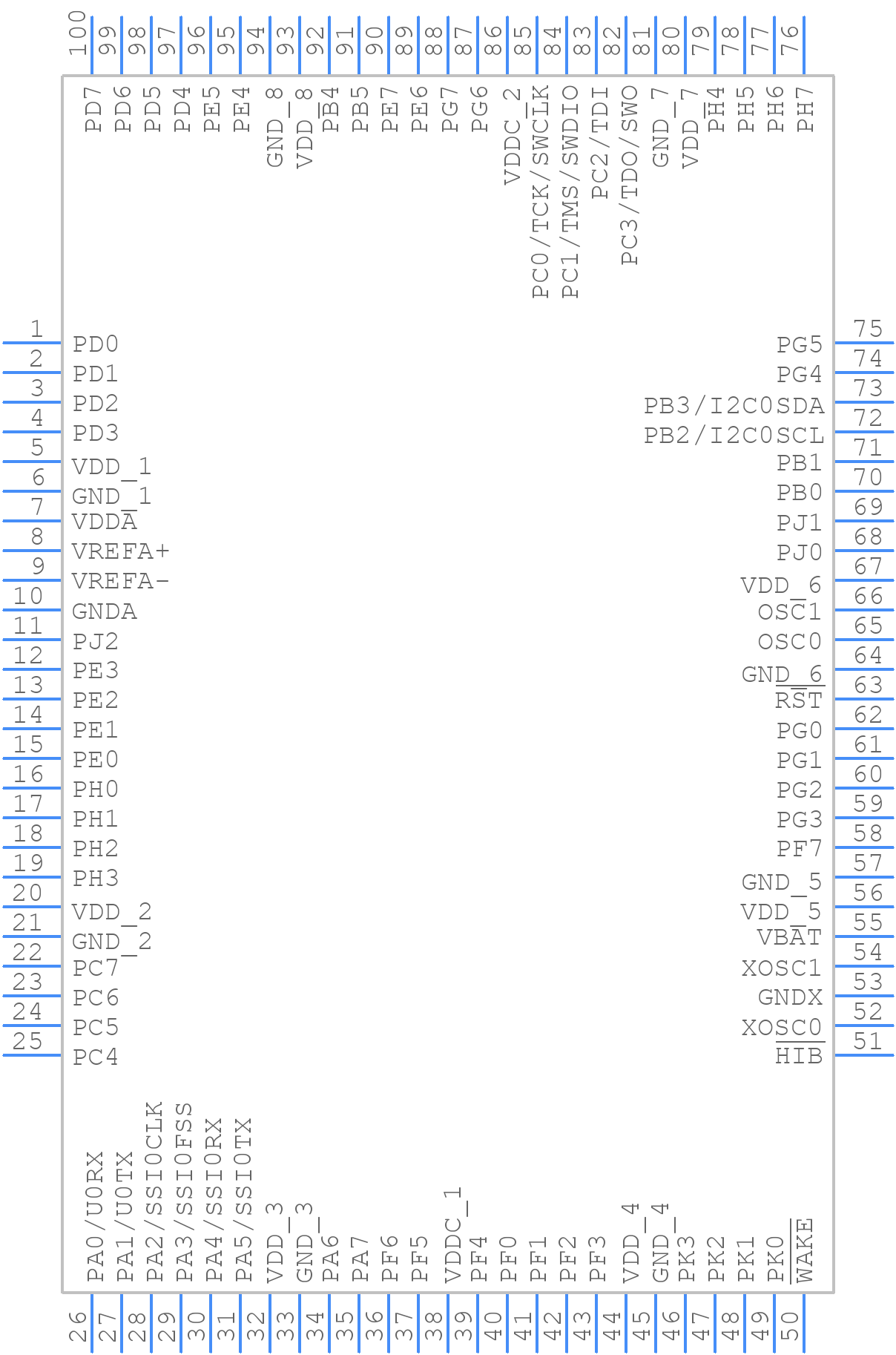

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TM4C1231D5PZIR by Texas Instruments
Results Overview of TM4C1231D5PZIR by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
TM4C1231D5PZIR Information
TM4C1231D5PZIR by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TM4C1231D5PZIR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TM4C1231D5PZIRCT-ND
|
DigiKey | IC MCU 32BIT 64KB FLASH 100LQFP Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$4.6817 / $7.8900 | Buy Now |
|
DISTI #
595-TM4C1231D5PZIR
|
Mouser Electronics | ARM Microcontrollers - MCU Tiva C Series MCU A 595-TM4C1231D5PZI RoHS: Compliant | 974 |
|
$4.5400 / $9.4700 | Buy Now |
|
|
LCSC | ARM-MSeries 80MHz LQFP-100(14x14) Microcontrollers (MCU/MPU/SOC) ROHS | 5 |
|
$8.4293 / $8.7353 | Buy Now |
Part Details for TM4C1231D5PZIR
TM4C1231D5PZIR CAD Models
TM4C1231D5PZIR Part Data Attributes
|
|
TM4C1231D5PZIR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TM4C1231D5PZIR
Texas Instruments
32-bit Arm Cortex-M4F based MCU with 80-MHz, 64-kb Flash, 24-kb RAM, CAN, RTC, 100-pin LQFP 100-LQFP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | LQFP-100 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| CPU Family | CORTEX-M4F | |
| Clock Frequency-Max | 25 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G100 | |
| JESD-609 Code | e4 | |
| Length | 14 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 69 | |
| Number of Terminals | 100 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP100,.63SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 24576 | |
| ROM (words) | 65536 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 80 MHz | |
| Supply Voltage-Max | 1.32 V | |
| Supply Voltage-Min | 1.2 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 14 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for TM4C1231D5PZIR
This table gives cross-reference parts and alternative options found for TM4C1231D5PZIR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TM4C1231D5PZIR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TM4C1231D5PZI | Texas Instruments | $4.1501 | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 64-kb Flash, 24-kb RAM, CAN, RTC, 100-pin LQFP 100-LQFP -40 to 85 | TM4C1231D5PZIR vs TM4C1231D5PZI |
| TM4C1231D5PZI7 | Texas Instruments | $4.1501 | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 64-kb Flash, 24-kb RAM, CAN, RTC, 100-pin LQFP 100-LQFP -40 to 85 | TM4C1231D5PZIR vs TM4C1231D5PZI7 |
| LM4F122C4QCFIG | Texas Instruments | Check for Price | 32-BIT, FLASH, 80MHz, RISC MICROCONTROLLER, PQFP100, ROHS COMPLIANT, PLASTIC, LQFP-100 | TM4C1231D5PZIR vs LM4F122C4QCFIG |
| TM4C1231D5PZI7R | Texas Instruments | Check for Price | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 64-kb Flash, 24-kb RAM, CAN, RTC, 100-pin LQFP 100-LQFP -40 to 85 | TM4C1231D5PZIR vs TM4C1231D5PZI7R |
TM4C1231D5PZIR Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the TM4C1231D5PZIR is 80 MHz, but it can be overclocked to 120 MHz with careful consideration of power consumption and thermal management.
-
The pin muxing on the TM4C1231D5PZIR can be configured using the PinMux utility in the TI Resource Explorer or by writing to the appropriate registers in the System Control Module (SYSCTL).
-
The maximum amount of current that can be sourced or sunk by the GPIO pins on the TM4C1231D5PZIR is 4 mA per pin, but this can be increased to 8 mA per pin by using the GPIO Output Buffer Enable (GPIO_OBE) register.
-
The internal oscillator on the TM4C1231D5PZIR can be enabled by setting the OSCSRC bit in the System Control RCGC1 register (SYSCTL_RCGC1_R) to 1. The oscillator frequency can be adjusted using the RCGC1 register.
-
The NMI pin on the TM4C1231D5PZIR is used to trigger a non-maskable interrupt, which can be used to reset the device or trigger a specific interrupt handler. It is typically connected to a push-button or a watchdog timer.
