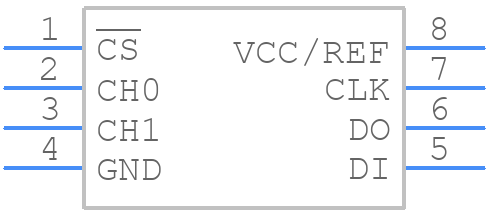

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLV0832CP by Texas Instruments
Results Overview of TLV0832CP by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
TLV0832CP Information
TLV0832CP by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for TLV0832CP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-TLV0832CP
|
Mouser Electronics | Analog to Digital Converters - ADC 8bit A/D RoHS: Compliant | 107 |
|
$4.3700 / $9.2200 | Buy Now |
|
DISTI #
86045141
|
Verical | 2-Channel Single ADC SAR 31ksps 8-bit Serial 8-Pin PDIP Tube RoHS: Compliant Min Qty: 72 Package Multiple: 1 Date Code: 1301 | Americas - 6290 |
|
$4.1750 / $5.2125 | Buy Now |
|
DISTI #
86033719
|
Verical | 2-Channel Single ADC SAR 31ksps 8-bit Serial 8-Pin PDIP Tube RoHS: Compliant Min Qty: 72 Package Multiple: 1 | Americas - 5300 |
|
$4.1750 / $5.2125 | Buy Now |
|
DISTI #
86045542
|
Verical | 2-Channel Single ADC SAR 31ksps 8-bit Serial 8-Pin PDIP Tube RoHS: Compliant Min Qty: 72 Package Multiple: 1 Date Code: 9701 | Americas - 3650 |
|
$4.1750 / $5.2125 | Buy Now |
|
DISTI #
86030811
|
Verical | 2-Channel Single ADC SAR 31ksps 8-bit Serial 8-Pin PDIP Tube RoHS: Compliant Min Qty: 72 Package Multiple: 1 Date Code: 0401 | Americas - 3050 |
|
$4.1750 / $5.2125 | Buy Now |
|
DISTI #
86034303
|
Verical | 2-Channel Single ADC SAR 31ksps 8-bit Serial 8-Pin PDIP Tube RoHS: Compliant Min Qty: 72 Package Multiple: 1 Date Code: 0601 | Americas - 2833 |
|
$4.1750 / $5.2125 | Buy Now |
|
DISTI #
86045170
|
Verical | 2-Channel Single ADC SAR 31ksps 8-bit Serial 8-Pin PDIP Tube RoHS: Compliant Min Qty: 72 Package Multiple: 1 Date Code: 0001 | Americas - 500 |
|
$4.1750 / $5.2125 | Buy Now |
|
|
Rochester Electronics | TLV0832 8-Bit 44.7 kSPS ADC Serial Out, Muxed Twin Ch. w/SE or Differential Option, 2 Ch. RoHS: Compliant Status: Active Min Qty: 1 | 21623 |
|
$3.3400 / $4.1700 | Buy Now |
Part Details for TLV0832CP
TLV0832CP CAD Models
TLV0832CP Part Data Attributes
|
|
TLV0832CP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLV0832CP
Texas Instruments
8-Bit 44.7 kSPS ADC Serial Out, Muxed Twin Ch. w/SE or Differential Option, 2 Ch. 8-PDIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | DIP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 3.6 V | |
| Analog Input Voltage-Min | -0.05 V | |
| Conversion Time-Max | 32 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e4 | |
| Length | 9.59 mm | |
| Linearity Error-Max (EL) | 0.0977% | |
| Number of Analog In Channels | 2 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.0447 MHz | |
| Seated Height-Max | 5.08 mm | |
| Supply Current-Max | 2.5 mA | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
