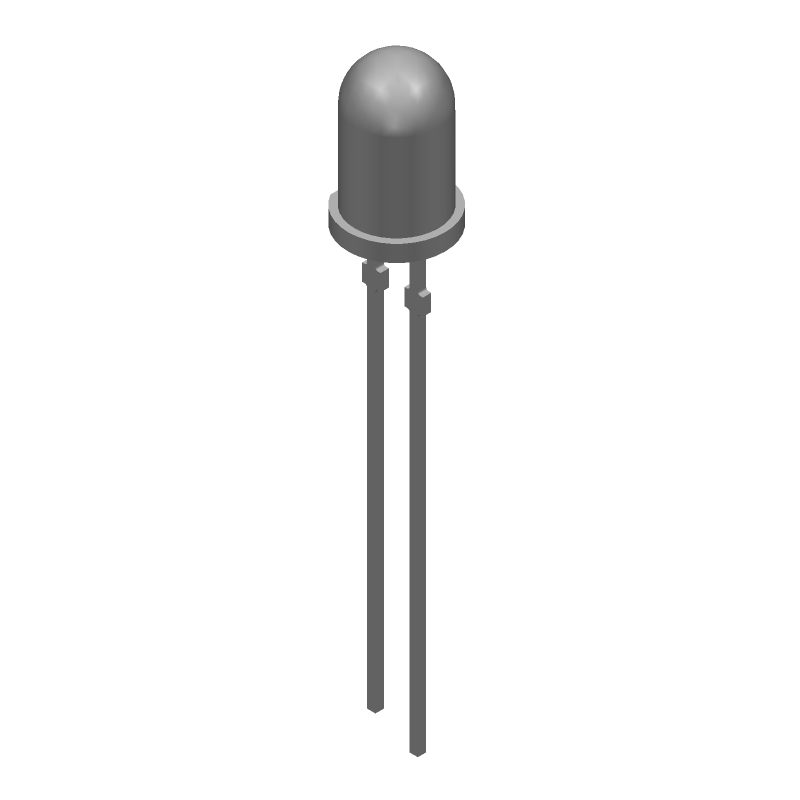

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLUR5400 by Vishay Intertechnologies
Results Overview of TLUR5400 by Vishay Intertechnologies
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
TLUR5400 Information
TLUR5400 by Vishay Intertechnologies is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for TLUR5400
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33C1439
|
Newark | Led, Red, T-1 3/4 (5Mm), 15Mcd, 630Nm, Led Color:Red, Led Mounting:Through Hole, Bulb Size:T-1 3/4 (5Mm), Forward Current If:20Ma, Forward Voltage:2V, Wavelength Typ:630Nm, Luminous Intensity:15Mcd, Viewing Angle:30°, Product Range:-Rohs Compliant: Yes |Vishay TLUR5400 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 215 |
|
$0.0280 | Buy Now |
|
DISTI #
33C1439
|
Avnet Americas | 5MM LED RED TINT. DIFF-e3 - Bulk (Alt: 33C1439) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 38 Weeks, 1 Days Container: Bulk | 215 Partner Stock |
|
$0.1400 | Buy Now |
|
DISTI #
TLUR5400
|
Avnet Americas | 5MM LED RED TINT. DIFF-e3 - Bulk (Alt: TLUR5400) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 32 Weeks, 0 Days Container: Bulk | 0 |
|
$0.0647 / $0.0701 | Buy Now |
|
DISTI #
78-TLUR5400
|
Mouser Electronics | Single Color LEDs Red Tinted Diffused RoHS: Compliant | 3627 |
|
$0.0860 / $0.3200 | Buy Now |
|
DISTI #
V99:2348_09169396
|
Arrow Electronics | LED Uni-Color Red 640nm 2-Pin T-1 3/4 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 32 Weeks Date Code: 2103 | Americas - 986 |
|
$0.0858 / $0.3194 | Buy Now |
|
DISTI #
58815850
|
Verical | LED Uni-Color Red 640nm 2-Pin T-1 3/4 RoHS: Compliant Min Qty: 84 Package Multiple: 1 Date Code: 2103 | Americas - 986 |
|
$0.0858 / $0.1966 | Buy Now |
|
DISTI #
TLUR5400
|
TTI | Single Color LEDs Red Tinted Diffused RoHS: Compliant pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Bulk | Americas - 0 |
|
$0.0960 | Buy Now |
|
DISTI #
TLUR5400
|
TME | LED, 5mm, red, 4÷15mcd, 30°, Front: convex, 2÷3VDC, No.of term: 2 Min Qty: 1 | 1648 |
|
$0.0760 / $0.3220 | Buy Now |
|
DISTI #
TLUR5400
|
EBV Elektronik | 5MM LED RED TINT DIFFe3 (Alt: TLUR5400) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 33 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for TLUR5400
TLUR5400 CAD Models
TLUR5400 Part Data Attributes
|
|
TLUR5400
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
TLUR5400
Vishay Intertechnologies
Single Color LED, Red, Tinted Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | ROHS COMPLIANT PACKAGE-2 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 32 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Color | RED | |
| Color@Wavelength | Red | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.02 A | |
| Forward Voltage-Max | 2 V | |
| JESD-609 Code | e2 | |
| Lens Type | TINTED DIFFUSED | |
| Luminous Intensity-Nom | 15.0 mcd | |
| Mounting Feature | RADIAL MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 8.7 mm | |
| Packing Method | BULK | |
| Peak Wavelength | 640 nm | |
| Shape | ROUND | |
| Size | 5 mm | |
| Surface Mount | NO | |
| T-code | T-1 3/4 | |
| Terminal Finish | Tin/Silver (Sn/Ag) | |
| Terminal Pitch | 2.54 mm | |
| Viewing Angle | 60 deg |
Alternate Parts for TLUR5400
This table gives cross-reference parts and alternative options found for TLUR5400. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLUR5400, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLUR5400 | Telefunken Microelectronics Gmbh | Check for Price | Visible LED, Diffused, | TLUR5400 vs TLUR5400 |
TLUR5400 Frequently Asked Questions (FAQ)
-
A recommended PCB layout for optimal thermal performance would be to use a large copper area on the top and bottom layers, connected by multiple thermal vias, to dissipate heat efficiently. Additionally, keeping the component away from other heat sources and using a thermal pad or heat sink can further improve thermal performance.
-
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink or thermal pad to reduce the junction temperature, and ensure good airflow around the component. It's also crucial to follow proper soldering and assembly techniques to prevent thermal interface resistance.
-
The TLUR5400 is not hermetically sealed, so it's essential to take precautions when using it in high-humidity environments. Moisture can affect the device's reliability and performance. Consider using conformal coating, potting, or encapsulation to protect the device from moisture. Additionally, ensure the PCB is designed with moisture-resistant materials and follow proper assembly and handling procedures.
-
The TLUR5400 is a surface-mount device, and its reliability in high-vibration environments depends on the PCB design and assembly quality. Ensure the PCB is designed with vibration-resistant materials, and the component is properly secured using underfill or potting material. Additionally, follow proper soldering and assembly techniques to prevent mechanical stress on the component.
-
To troubleshoot issues with the TLUR5400, start by verifying the PCB design and assembly quality. Check for soldering defects, incorrect component orientation, or inadequate thermal management. Use thermal imaging or temperature measurement tools to identify hotspots. Analyze the circuit operation and ensure that the device is operated within its recommended specifications. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
