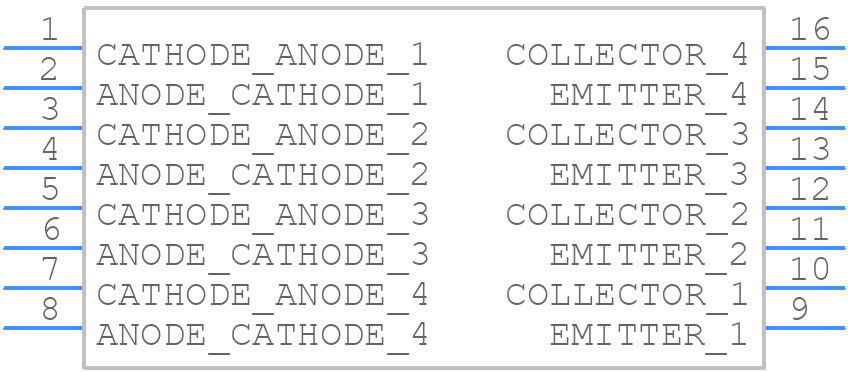

Part Symbol
-

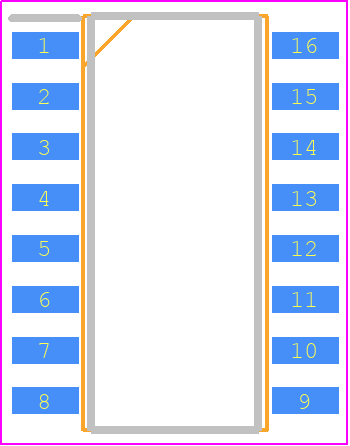

Footprint
-

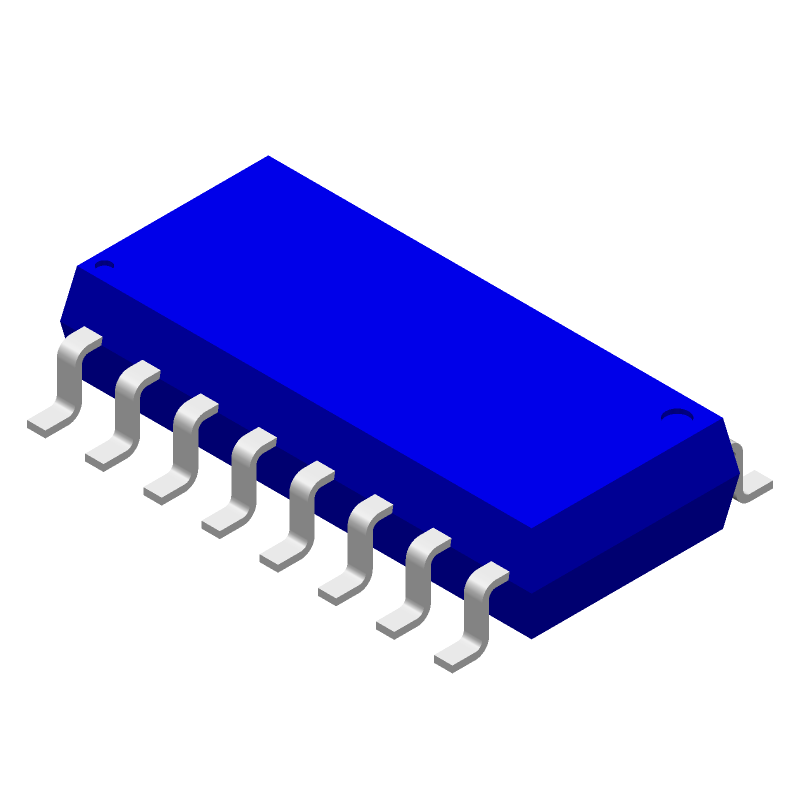

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLP292-4 by Toshiba America Electronic Components
Results Overview of TLP292-4 by Toshiba America Electronic Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Automotive
TLP292-4 Information
TLP292-4 by Toshiba America Electronic Components is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for TLP292-4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78Y6806
|
Newark | Optocoupler, Phototrans, 3.75Kv, Soic-16, No. Of Channels:4 Channel, Optocoupler Case Style:Soic, No. Of Pins:16Pins, Forward Current If Max:50Ma, Isolation Voltage:3.75Kv, Ctr Min:50%, Collector Emitter Voltage V(Br)Ceo:80V, Productrohs Compliant: Yes |Toshiba TLP292-4 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 7970 |
|
$0.6340 / $1.5900 | Buy Now |
|
|
Win Source Electronics | OPTOISOLATOR 3.75KV TRANS SO16 | 67000 |
|
$1.1319 / $1.6979 | Buy Now |
Part Details for TLP292-4
TLP292-4 CAD Models
TLP292-4 Part Data Attributes
|
|
TLP292-4
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TLP292-4
Toshiba America Electronic Components
Optical Semiconductor Devices - Photocouplers and Photorelays, Transistor Output Device
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | SOP-16 | |
| Reach Compliance Code | unknown | |
| ECCN Code | 3A001.A.2.C | |
| HTS Code | 8541.49.80.00 | |
| Samacsys Manufacturer | Toshiba | |
| Additional Feature | UL RECOGNIZED | |
| Coll-Emtr Bkdn Voltage-Min | 80 V | |
| Configuration | SEPARATE, 4 CHANNELS | |
| Current Transfer Ratio-Min | 50% | |
| Dark Current-Max | 80 nA | |
| Forward Current-Max | 0.05 A | |
| Forward Voltage-Max | 1.4 V | |
| Isolation Voltage-Max | 3750 V | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 4 | |
| On-State Current-Max | 0.05 A | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER | |
| Surface Mount | YES |
