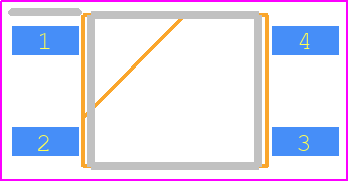

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLP184(SE(T by Toshiba America Electronic Components
Results Overview of TLP184(SE(T by Toshiba America Electronic Components
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
TLP184(SE(T Information
TLP184(SE(T by Toshiba America Electronic Components is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for TLP184(SE(T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78Y6757
|
Newark | Optocoupler, Phototrans, 3.75Kv, Smdip-4, No. Of Channels:1 Channel, Optocoupler Case Style:Surface Mount Dip, No. Of Pins:4Pins, Forward Current If Max:50Ma, Isolation Voltage:3.75Kv, Ctr Min:50%, Collector Emitter Voltage Rohs Compliant: Yes |Toshiba TLP184(SE(T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 125 |
|
$0.0520 | Buy Now |
|
DISTI #
17091002
|
Verical | Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin SO Magazine RoHS: Compliant Min Qty: 250 Package Multiple: 250 | Americas - 250 |
|
$0.2262 | Buy Now |
|
DISTI #
69687386
|
Verical | Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin SO Magazine RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2301 | Americas - 5 |
|
$13.2960 | Buy Now |
|
DISTI #
TLP184-SE-T
|
TME | Optocoupler, SMD, Ch: 1, OUT: transistor, Uinsul: 3.75kV, Uce: 80V Min Qty: 1 | 0 |
|
$0.2300 / $0.7180 | RFQ |
|
DISTI #
IRCOUP2540
|
Rutronik | COUPLER SO6 AC 50-600% 5mA 80V RoHS: Compliant Min Qty: 125 Package Multiple: 125 Container: Tube |
Stock DE - 5000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.1743 / $0.1988 | Buy Now |
|
DISTI #
TLP184(SE(T
|
EBV Elektronik | Optocoupler DCIN 1CH Transistor DCOUT 4Pin SO (Alt: TLP184(SE(T) RoHS: Compliant Min Qty: 125 Package Multiple: 125 Lead time: 17 Weeks, 0 Days | EBV - 3875 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 125 | 3125 |
|
$0.5846 / $0.6333 | Buy Now |
|
|
Vyrian | Optoelectronics | 2523 |
|
RFQ |
Part Details for TLP184(SE(T
TLP184(SE(T CAD Models
TLP184(SE(T Part Data Attributes
|
|
TLP184(SE(T
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TLP184(SE(T
Toshiba America Electronic Components
AC Input-Transistor Output Optocoupler, 1-Element, 3750V Isolation
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | SOP-6 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8541.40.80.00 | |
| Samacsys Manufacturer | Toshiba | |
| Additional Feature | UL APPROVED | |
| Coll-Emtr Bkdn Voltage-Min | 80 V | |
| Configuration | SINGLE | |
| Current Transfer Ratio-Nom | 50% | |
| Dark Current-Max | 80 nA | |
| Forward Current-Max | 0.05 A | |
| Isolation Voltage-Max | 3750 V | |
| Number of Elements | 1 | |
| Operating Temperature-Max | 110 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER |
