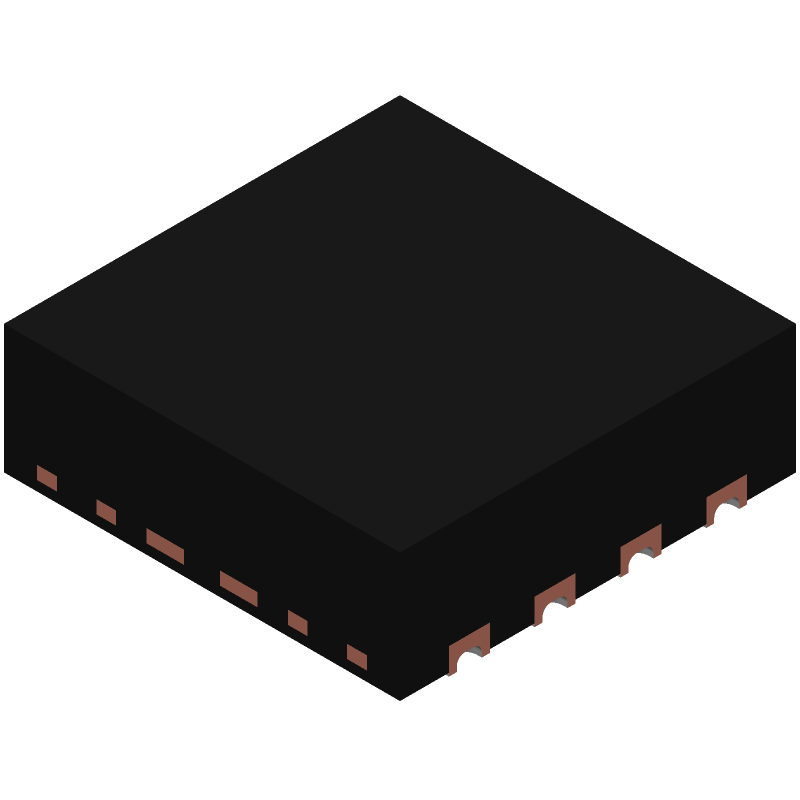

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLIN2029ADRBRQ1 by Texas Instruments
Results Overview of TLIN2029ADRBRQ1 by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Smart Cities
Automotive
TLIN2029ADRBRQ1 Information
TLIN2029ADRBRQ1 by Texas Instruments is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for TLIN2029ADRBRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TLIN2029ADRBRQ1CT-ND
|
DigiKey | IC TRANSCEIVER HALF 1/1 8SON Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3270 In Stock |
|
$0.4668 / $1.0400 | Buy Now |
|
DISTI #
595-TLIN2029ADRBRQ1
|
Mouser Electronics | LIN Transceivers Fault protected loca l interconnect netwo RoHS: Compliant | 2476 |
|
$0.4540 / $1.0400 | Buy Now |
|
|
LCSC | 1 transceiver 1 SON-8(3x3) LIN Transceivers ROHS | 34 |
|
$0.9639 / $1.7213 | Buy Now |
Part Details for TLIN2029ADRBRQ1
TLIN2029ADRBRQ1 CAD Models
TLIN2029ADRBRQ1 Part Data Attributes
|
|
TLIN2029ADRBRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLIN2029ADRBRQ1
Texas Instruments
Fault protected local interconnect network (LIN) transceiver with dominant state timeout 8-SON -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | VSON-8 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Texas Instruments | |
| Data Rate | 20 Mbps | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.12,25 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max | 5 mA | |
| Supply Voltage-Nom | 12 V | |
| Surface Mount | YES | |
| Telecom IC Type | LIN TRANSCEIVER | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
