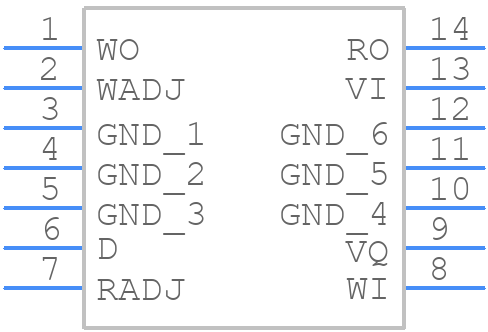

Part Symbol
-

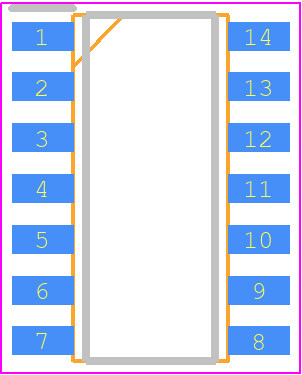

Footprint
-

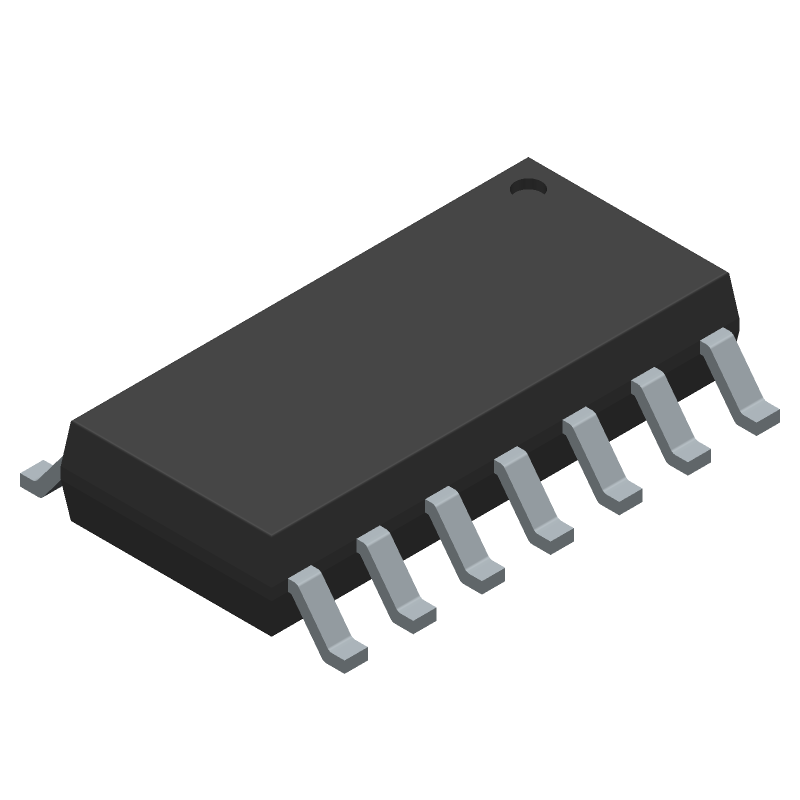

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLE4278GXUMA1 by Infineon Technologies AG
Results Overview of TLE4278GXUMA1 by Infineon Technologies AG
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
TLE4278GXUMA1 Information
TLE4278GXUMA1 by Infineon Technologies AG is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TLE4278GXUMA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TLE4278GXUMA1CT-ND
|
DigiKey | IC REG LIN 5V 200MA PG-DSO-14-30 Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Limited Supply - Call |
|
$1.1257 / $2.2500 | Buy Now |
|
DISTI #
86045407
|
Verical | LDO Regulator Pos 5V 0.2A Automotive AEC-Q100 14-Pin DSO T/R RoHS: Compliant Min Qty: 212 Package Multiple: 1 Date Code: 1801 | Americas - 18282 |
|
$1.1031 / $1.7750 | Buy Now |
|
DISTI #
86045900
|
Verical | LDO Regulator Pos 5V 0.2A Automotive AEC-Q100 14-Pin DSO T/R RoHS: Compliant Min Qty: 212 Package Multiple: 1 Date Code: 1701 | Americas - 7205 |
|
$1.1031 / $1.7750 | Buy Now |
|
|
Rochester Electronics | TLE4278 - Linear Voltage Regulator RoHS: Compliant Status: Not Recommended for New Designs Min Qty: 1 | 25487 |
|
$0.8825 / $1.4200 | Buy Now |
|
DISTI #
TLE4278GXUMA1
|
IBS Electronics | FIXED LDO VOLTAGE REGULATOR 5.5V TO 45V 250MV DROPOUT 5VOUT 150MAOUT SOIC-14 Min Qty: 2500 Package Multiple: 1 | 0 |
|
$1.2870 | Buy Now |
|
DISTI #
SP000305157
|
EBV Elektronik | LDO Regulator Pos 5V 02A 14Pin DSO (Alt: SP000305157) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 71 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Win Source Electronics | IC REG LDO 5V 0.15A 14DSO | 30000 |
|
$0.5941 / $0.7672 | Buy Now |
Part Details for TLE4278GXUMA1
TLE4278GXUMA1 CAD Models
TLE4278GXUMA1 Part Data Attributes
|
|
TLE4278GXUMA1
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
TLE4278GXUMA1
Infineon Technologies AG
Fixed Positive LDO Regulator, 5V, 0.5V Dropout, PDSO14, PLASTIC, SO-14
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Part Package Code | SOIC | |
| Package Description | PLASTIC, SO-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Date Of Intro | 1998-11-01 | |
| Samacsys Manufacturer | Infineon | |
| Dropout Voltage1-Max | 0.5 V | |
| Dropout Voltage1-Nom | 0.25 V | |
| Input Voltage-Max | 45 V | |
| Input Voltage-Min | 5.5 V | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 8.75 mm | |
| Load Regulation-Max | -0.005% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.2 A | |
| Output Voltage1-Max | 5.2 V | |
| Output Voltage1-Min | 4.8 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Voltage Tolerance-Max | 4% | |
| Width | 4 mm |
