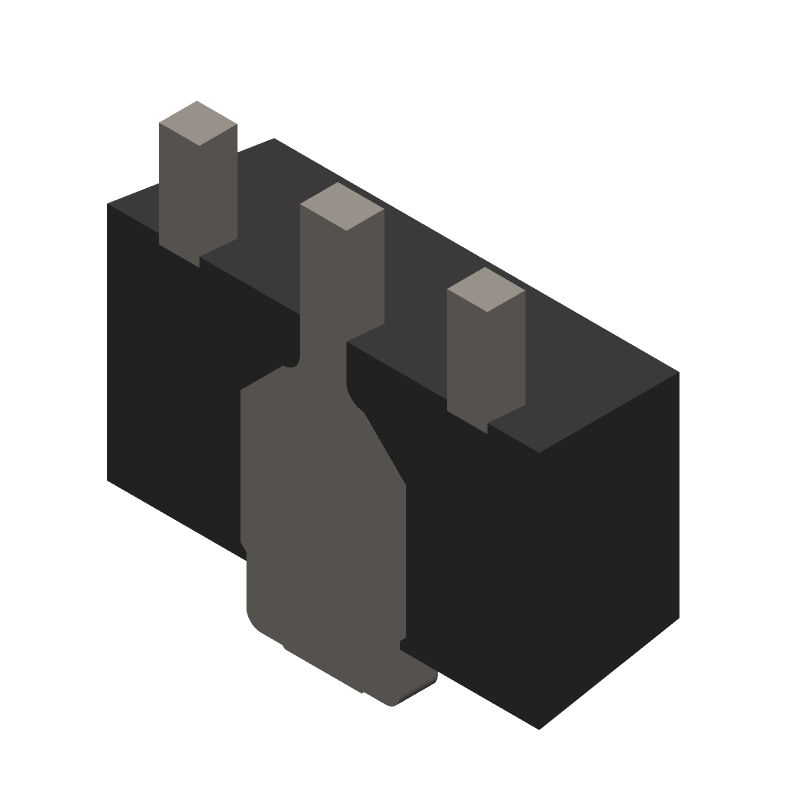

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL431ACPK by Texas Instruments
Results Overview of TL431ACPK by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
TL431ACPK Information
TL431ACPK by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TL431ACPK
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-17037-1-ND
|
DigiKey | IC VREF SHUNT ADJ 1% SOT89-3 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3149 In Stock |
|
$0.0570 / $0.1700 | Buy Now |
|
DISTI #
595-TL431ACPK
|
Mouser Electronics | Voltage References Adjustable Precision Shunt Regulator A 595-TL431ACP RoHS: Compliant | 1787 |
|
$0.0590 / $0.1700 | Buy Now |
|
|
Bristol Electronics | 400 |
|
RFQ | ||
|
|
Bristol Electronics | 336 |
|
RFQ | ||
|
|
Rochester Electronics | TL431 - Adjustable precision shunt regulator RoHS: Compliant Status: Active Min Qty: 1 | 1411 |
|
$0.0452 / $0.0729 | Buy Now |
|
DISTI #
TL431ACPK
|
TME | IC: voltage reference source, 2.495V, ±1%, SOT89, 100mA Min Qty: 1 | 0 |
|
$0.0720 / $0.4160 | RFQ |
|
|
Cytech Systems Limited | IC VREF SHUNT ADJ 1% SOT89-3 | 1000 |
|
RFQ | |
|
|
LCSC | 2.495V36V 1% 100mA Adjustable SOT-89-3 Voltage Reference ROHS | 3375 |
|
$0.1020 / $0.1625 | Buy Now |
Part Details for TL431ACPK
TL431ACPK CAD Models
TL431ACPK Part Data Attributes
|
|
TL431ACPK
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TL431ACPK
Texas Instruments
Adjustable precision shunt regulator 3-SOT-89 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-89 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUT VOLTAGE ADJUSTABLE FROM 2.495V TO 36V | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PSSO-F3 | |
| JESD-609 Code | e3 | |
| Length | 4.5 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 0.1 A | |
| Output Voltage-Max | 2.52 V | |
| Output Voltage-Min | 2.47 V | |
| Output Voltage-Nom | 2.495 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSOF | |
| Package Equivalence Code | TO-243 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.6 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 92 ppm/°C | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Pitch | 1.5 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | YES | |
| Voltage Tolerance-Max | 1% | |
| Width | 2.5 mm |
Alternate Parts for TL431ACPK
This table gives cross-reference parts and alternative options found for TL431ACPK. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TL431ACPK, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TL431IDBZR | Texas Instruments | $0.1282 | Adjustable precision shunt regulator 3-SOT-23 -40 to 85 | TL431ACPK vs TL431IDBZR |
| TL431IPK | Texas Instruments | $0.1325 | Adjustable precision shunt regulator 3-SOT-89 -40 to 85 | TL431ACPK vs TL431IPK |
| TL431BIPK | Texas Instruments | $0.2152 | Adjustable precision shunt regulator 3-SOT-89 -40 to 85 | TL431ACPK vs TL431BIPK |
| TL431IDBZT | Texas Instruments | $0.3809 | Adjustable precision shunt regulator 3-SOT-23 -40 to 85 | TL431ACPK vs TL431IDBZT |
| TL431IP | NXP Semiconductors | Check for Price | IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.495 V, PDIP8, 0.300 INCH, PLASTIC, MO-001AN, SOT-97-1, DIP-8, Voltage Reference | TL431ACPK vs TL431IP |
| TL431IPKG3 | Texas Instruments | Check for Price | Adjustable precision shunt regulator 3-SOT-89 -40 to 85 | TL431ACPK vs TL431IPKG3 |
| TL431-AB3-R | Unisonic Technologies Co Ltd | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PSSO3, SOT-89, 3 PIN | TL431ACPK vs TL431-AB3-R |
| TL431IDBZR | NXP Semiconductors | Check for Price | IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 2.495 V, PDSO3, PLASTIC, TO-236AB, SOT-23, 3 PIN, Voltage Reference | TL431ACPK vs TL431IDBZR |
| LM431SCCML | Fairchild Semiconductor Corporation | Check for Price | Two Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PSSO3, SOT-89, 3 PIN | TL431ACPK vs LM431SCCML |
| TL431IPKG3 | Rochester Electronics LLC | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PSSO3, GREEN, PLASTIC, SOT-89, 3 PIN | TL431ACPK vs TL431IPKG3 |
TL431ACPK Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for TL431ACPK is -40°C to 125°C.
-
Yes, TL431ACPK can be used as a voltage regulator, but it's primarily designed as a programmable shunt regulator. It's not suitable for high-current applications.
-
Choose resistor values based on the desired output voltage and the reference voltage (2.5V). Use the formula: R1/R2 = (Vout - 2.5V) / 2.5V. Ensure the resistors are of suitable wattage and tolerance.
-
The cathode (K) pin is the output pin of the TL431ACPK. It's connected to the load and provides the regulated voltage.
-
No, it's not recommended to use multiple TL431ACPK devices in parallel to increase the current output. The device is not designed for high-current applications, and paralleling devices may lead to instability and reduced reliability.
