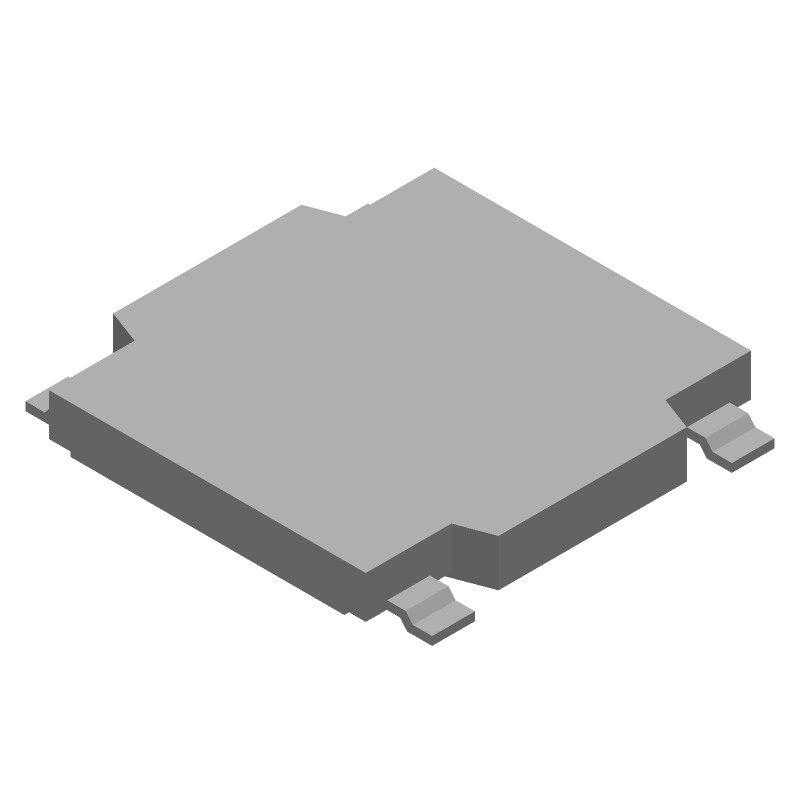

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL3315NF100Q by E-Switch Inc
Results Overview of TL3315NF100Q by E-Switch Inc
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
TL3315NF100Q Information
TL3315NF100Q by E-Switch Inc is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for TL3315NF100Q
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15N9519
|
Newark | Switch, Tactile, Spst, 50Ma, 15Vdc, Product Range:Tl3315 Series, Actuator Orientation:Top Actuated, Switch Mounting:Surface Mount, Actuator Style:Round Button, Actuating Force:100Gf, Contact Rating:50Ma At 15Vdc, Ip Rating:- Rohs Compliant: Yes |E-Switch TL3315NF100Q RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 889672 |
|
$0.0550 | Buy Now |
|
DISTI #
33AK2842
|
Newark | Tactile Sw, Spst-No-Dm, 0.05A/15V, 100Gf, Product Range:Tl3315 Series, Actuator Orientation:Top Actuated, Switch Mounting:Surface Mount, Actuator Style:Snap Dome, Actuating Force:100Gf, Contact Rating:50Ma At 15Vdc, Ip Rating:- Rohs Compliant: Yes |E-Switch TL3315NF100Q RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0970 | Buy Now |
|
DISTI #
612-TL3315NF100Q
|
Mouser Electronics | Tactile Switches LOPRO 100GF SMD RoHS: Compliant | 20642 |
|
$0.0820 / $0.1500 | Buy Now |
|
DISTI #
72482392
|
RS | Tactile Switch, TL3315, SPST-NO, OFF-(ON), Top Actuated, 0.05A, 15VDC, Gull Win Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Bulk | 9911 |
|
$0.2740 / $0.3910 | Buy Now |
|
DISTI #
75635170
|
RS | Tactile Switch, TL3315, SPST-NO, OFF-(ON), Top Actuated, 0.05A, 15VDC, Gull Win Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Bulk | 0 |
|
$0.2740 / $0.3910 | RFQ |
|
|
Future Electronics | TL3315 Series SPST 1 N Round Button J-Bend SMT Low Profile Tactile Switch RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Container: Cut Tape/Mini-Reel | 448Cut Tape/Mini-Reel |
|
$0.1290 / $0.3150 | Buy Now |
|
|
Future Electronics | TL3315 Series SPST 1 N Round Button J-Bend SMT Low Profile Tactile Switch RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 5000 Lead time: 16 Weeks Container: Reel | 0Reel |
|
$0.0577 / $0.0595 | Buy Now |
|
DISTI #
71279528
|
Verical | Switch Tactile N.O. SPST Flush Round Button Gull Wing 0.05A 15VDC 0.98N SMD Min Qty: 910 Package Multiple: 1 | Americas - 889672 |
|
$0.0724 / $0.0831 | Buy Now |
|
DISTI #
69079924
|
Verical | Switch Tactile N.O. SPST Flush Round Button Gull Wing 0.05A 15VDC 0.98N SMD Min Qty: 5000 Package Multiple: 5000 Date Code: 2050 | Americas - 15000 |
|
$0.0846 / $0.1032 | Buy Now |
|
DISTI #
87354542
|
Verical | Switch Tactile N.O. SPST Flush Round Button Gull Wing 0.05A 15VDC 0.98N SMD Min Qty: 650 Package Multiple: 1 | Americas - 7270 |
|
$0.1132 | Buy Now |
Part Details for TL3315NF100Q
TL3315NF100Q CAD Models
TL3315NF100Q Part Data Attributes
|
|
TL3315NF100Q
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
TL3315NF100Q
E-Switch Inc
Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 15VDC, 1.27N, Solder Terminal, Surface Mount-straight
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Travel | 0.2 mm | |
| Body Breadth | 4.5 mm | |
| Body Height | 0.55 mm | |
| Body Length or Diameter | 4.5 mm | |
| Center Contact Plating | SILVER | |
| Circuit Configuration | 1X1 | |
| Contact Current(DC)-Max | 0.05 A | |
| Contact (DC) Max Rating R Load | 0.05A@15VDC | |
| Contact Resistance | 0.2 mΩ | |
| Contact Voltage(DC)-Max | 15 V | |
| Dielectric Withstand Volts | 250VAC V | |
| Electrical Life | 1000000 Cycle(s) | |
| End Contact Plating | SILVER | |
| Insulation Resistance | 50000000 Ω | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Number of Switches | 1 | |
| Operating Force-Max | 1.27 N | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Packing Method | TR | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | KEYPAD SWITCH | |
| Terminal Finish | Silver (Ag) | |
| Termination Type | SOLDER |
TL3315NF100Q Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
-
The TL3315NF100Q is designed to withstand vibrations up to 10G (10 Hz to 2 kHz). However, it's recommended to perform additional testing and validation for specific high-vibration applications.
-
E-Switch recommends using a mild detergent and deionized water for cleaning. Avoid using harsh chemicals, ultrasonic cleaning, or high-pressure washing, as they may damage the component.
-
The TL3315NF100Q is designed for indoor use. For outdoor or harsh environmental applications, it's recommended to use a conformal coating or potting compound to protect the component from moisture and contaminants.
-
The TL3315NF100Q is rated for operation from -40°C to 85°C (-40°F to 185°F). Operating the component outside this range may affect its performance and reliability.
