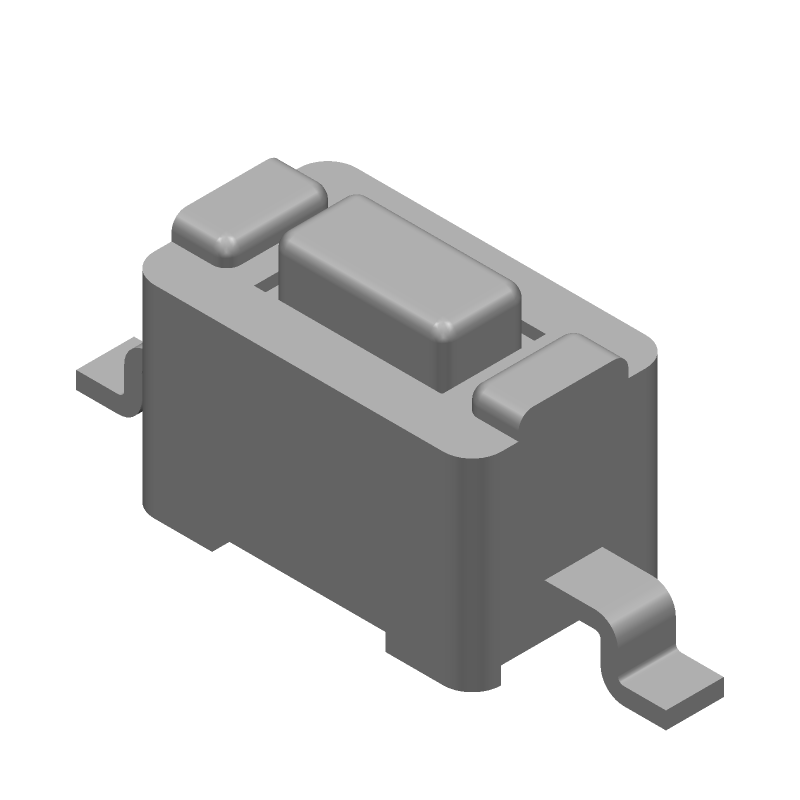

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL3302AF180QG by E-Switch Inc
Results Overview of TL3302AF180QG by E-Switch Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
TL3302AF180QG Information
TL3302AF180QG by E-Switch Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for TL3302AF180QG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15N4505
|
Newark | Switch, Tactile Spst 50Ma, Smd Gull Wing, Product Range:Tl3302 Series, Actuator Orientation:Top Actuated, Switch Mounting:Surface Mount, Actuator Style:Rectangular Button, Actuating Force:180Gf, Contact Rating:50Ma At 12Vdc Rohs Compliant: Yes |E-Switch TL3302AF180QG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1241 |
|
$0.2690 | Buy Now |
|
DISTI #
14P9512
|
Newark | Switch, Tactile Spst 50Ma, Smd Gull Wing, Full Reel, Product Range:Tl3302 Series, Actuator Orientation:Top Actuated, Switch Mounting:Surface Mount, Actuator Style:Rectangular Button, Actuating Force:180Gf, Ip Rating:- Rohs Compliant: Yes |E-Switch TL3302AF180QG RoHS: Compliant Min Qty: 1800 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3860 / $0.4230 | Buy Now |
|
DISTI #
EG2528CT-ND
|
DigiKey | SWITCH TACTILE SPST-NO 0.05A 12V Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
19951 In Stock |
|
$0.3038 / $0.7000 | Buy Now |
|
DISTI #
612-TL3302A
|
Mouser Electronics | Tactile Switches 6.0X4.3MM 180G RoHS: Compliant | 1826 |
|
$0.2950 / $0.5500 | Buy Now |
|
DISTI #
74853020
|
RS | Tactile Switch, SPST-NO, OFF-(ON), 50 mA, 12V DC, Gull Wing, TL3302 Series Min Qty: 1800 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Bulk | 0 |
|
$0.8360 / $0.9080 | RFQ |
|
DISTI #
87361453
|
Verical | Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.05A 12VDC 1.77N SMD T/R Min Qty: 118 Package Multiple: 1 | Americas - 1450 |
|
$0.5936 | Buy Now |
|
DISTI #
69079869
|
Verical | Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.05A 12VDC 1.77N SMD T/R Min Qty: 1434 Package Multiple: 1434 | Americas - 1434 |
|
$0.3587 / $0.5084 | Buy Now |
|
DISTI #
32350483
|
Verical | Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.05A 12VDC 1.77N SMD T/R Min Qty: 186 Package Multiple: 1 | Americas - 1241 |
|
$0.3932 / $0.4393 | Buy Now |
|
DISTI #
TL3302AF180QG
|
TME | Microswitch TACT, SPST-NO, Pos: 2, 0.05A/12VDC, SMT, 1.77N, 4.3mm Min Qty: 5 | 1505 |
|
$0.4320 / $0.6260 | Buy Now |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 139 |
|
$0.5000 / $0.7700 | Buy Now |
Part Details for TL3302AF180QG
TL3302AF180QG CAD Models
TL3302AF180QG Part Data Attributes
|
|
TL3302AF180QG
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
TL3302AF180QG
E-Switch Inc
Pushbutton Switch, SPST, On-off, Vertical, 0.05A, 50VDC, Solder Terminal, Surface Mount-straight
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Material | POLYPHENYLENE SULFIDE | |
| Actuator Type | PUSHBUTTON | |
| Additional Feature | PACKAGE REEL | |
| Body Breadth | 3.5052 mm | |
| Body Height | 3.9116 mm | |
| Body Length or Diameter | 5.9944 mm | |
| Center Contact Material | PHOSPHOR BRONZE | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 0.05 A | |
| Contact (DC) Max Rating R Load | 0.05A@50VDC | |
| Contact Function | ON-OFF | |
| Contact Resistance | 0.02 mΩ | |
| Contact Timing | SNAP ACTION | |
| Contact Voltage(DC)-Max | 50 V | |
| Dielectric Withstand Volts | 1000VAC V | |
| Electrical Life | 100000 Cycle(s) | |
| End Contact Material | PHOSPHOR BRONZE | |
| End Contact Plating | SILVER | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | POLYPHENYLENE SULPHIDE | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | KEYPAD SWITCH | |
| Terminal Finish | Silver (Ag) | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
TL3302AF180QG Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for the TL3302AF180QG is -40°C to 85°C.
-
Yes, the TL3302AF180QG is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
-
The maximum operating voltage for the TL3302AF180QG is 12V.
-
Yes, the TL3302AF180QG should be handled with care to prevent damage to the switch contacts. It is recommended to use anti-static packaging and handling procedures to prevent ESD damage.
-
The typical actuation force for the TL3302AF180QG is around 1.5N to 2.5N, depending on the specific application and usage.
