TL16C550DPTR by: Texas Instruments

Asynchronous Communications Element With Autoflow Control 48-LQFP 0 to 70

Part Details for TL16C550DPTR by Texas Instruments

Results Overview of TL16C550DPTR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TL16C550DPTR Information

TL16C550DPTR by Texas Instruments is a Serial IO/Communication Controller.
Serial IO/Communication Controllers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for TL16C550DPTR

Part # Distributor Description Stock Price Buy
DISTI # 296-TL16C550DPCT-ND
DigiKey IC ASYNC COMM ELEMENT 48-LQFP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2616
In Stock
  • 1 $3.6500
  • 10 $2.7490
  • 25 $2.5244
  • 100 $2.2771
  • 250 $2.1593
  • 500 $2.0882
  • 1,000 $1.8013
$1.8013 / $3.6500 Buy Now
DISTI # 2156-TL16C550DPTR-ND
DigiKey IC ASYNC COMM ELEMENT 48-LQFP Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 626
In Stock
  • 153 $1.9700
$1.9700 Buy Now
DISTI # 595-TL16C550DPTR
Mouser Electronics UART Interface IC Async Communications Element A 595-TL16C550DPT RoHS: Compliant 528
  • 1 $3.6500
  • 10 $2.7500
  • 25 $2.5300
  • 100 $2.2800
  • 250 $2.1600
  • 500 $2.0900
  • 1,000 $1.8000
$1.8000 / $3.6500 Buy Now
DISTI # 86031306
Verical UART 1-CH 16byte FIFO 2.5V/3.3V/5V 48-Pin LQFP T/R RoHS: Compliant Min Qty: 167 Package Multiple: 1 Date Code: 1201 Americas - 626
  • 167 $2.2500
  • 500 $2.1250
  • 1,000 $2.0125
  • 10,000 $1.8875
$1.8875 / $2.2500 Buy Now
Quest Components   110
  • 1 $3.3840
  • 36 $1.8612
  • 82 $1.6920
$1.6920 / $3.3840 Buy Now
Rochester Electronics TL16C550D Asynchronous Communications Element With Autoflow Control RoHS: Compliant Status: Active Min Qty: 1 626
  • 25 $1.8900
  • 100 $1.8000
  • 500 $1.7000
  • 1,000 $1.6100
  • 10,000 $1.5100
$1.5100 / $1.8900 Buy Now

Part Details for TL16C550DPTR

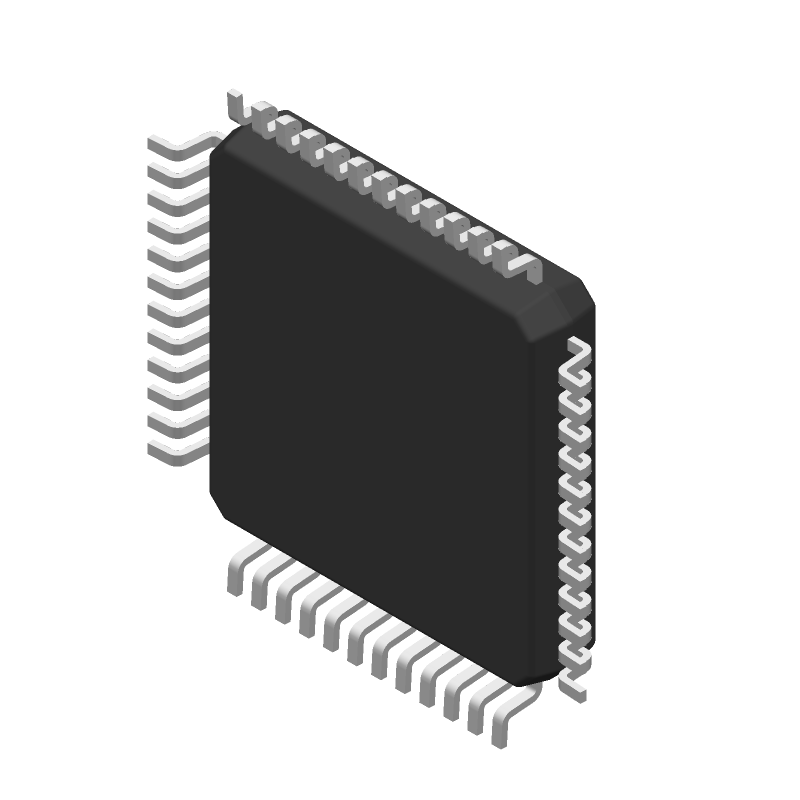

TL16C550DPTR CAD Models

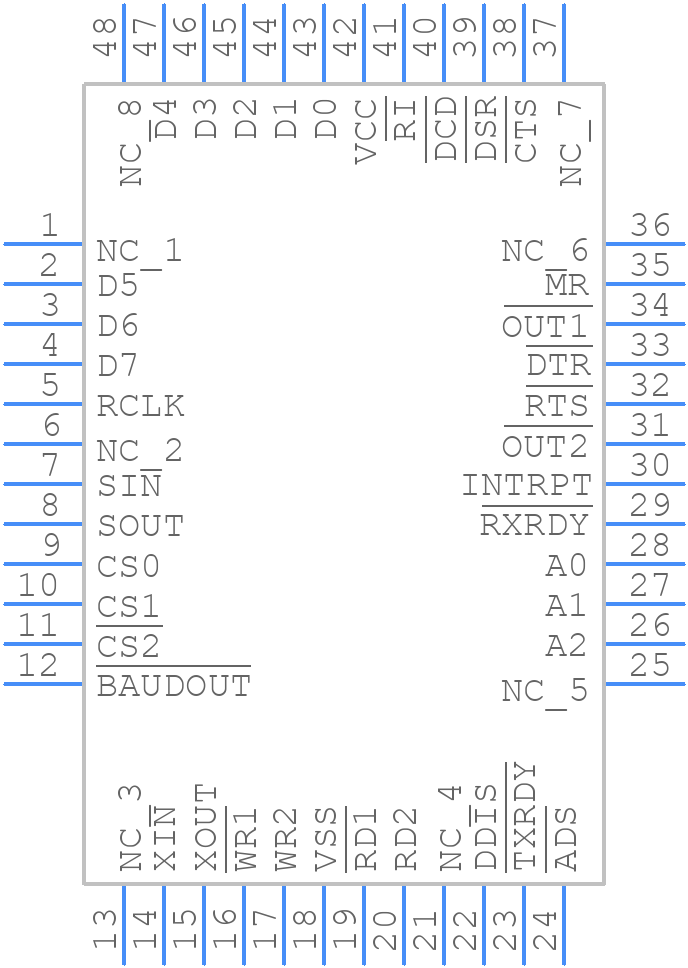

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TL16C550DPTR Part Data Attributes

Parametric Data
TL16C550DPTR Texas Instruments
Buy Now Datasheet
Compare Parts:
TL16C550DPTR Texas Instruments Asynchronous Communications Element With Autoflow Control 48-LQFP 0 to 70
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code QFP
Package Description GREEN, PLASTIC, LQFP-48
Pin Count 48
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Additional Feature ALSO OPERATES AT 2.5V/3.3V SUPPLY
Address Bus Width 3
Boundary Scan NO
Clock Frequency-Max 24 MHz
Communication Protocol ASYNC, BIT
Data Transfer Rate-Max 0.1875 MBps
External Data Bus Width 8
JESD-30 Code S-PQFP-G48
JESD-609 Code e4
Length 7 mm
Low Power Mode NO
Moisture Sensitivity Level 3
Number of Serial I/Os 1
Number of Terminals 48
Operating Temperature-Max 70 °C
Operating Temperature-Min
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP48,.35SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Supply Current-Max 8 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 7 mm
uPs/uCs/Peripheral ICs Type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

Alternate Parts for TL16C550DPTR

This table gives cross-reference parts and alternative options found for TL16C550DPTR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TL16C550DPTR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
