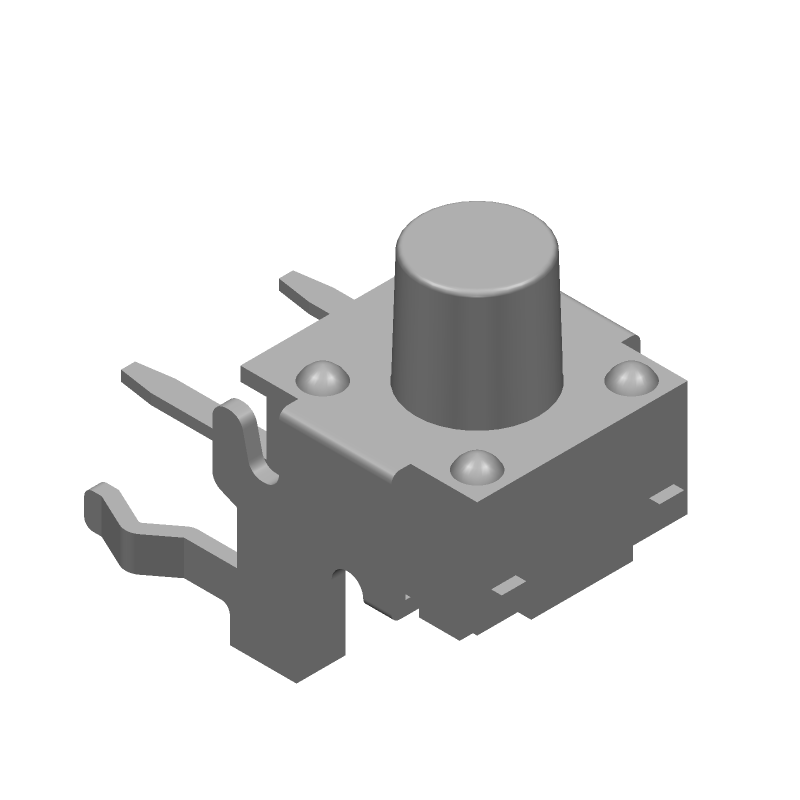

Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.94N, Solder Terminal, Through Hole-right Angle

Part Details for TL1105XF250Q by E-Switch Inc

Results Overview of TL1105XF250Q by E-Switch Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TL1105XF250Q Information

TL1105XF250Q by E-Switch Inc is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for TL1105XF250Q

Part # Distributor Description Stock Price Buy
DISTI # 15N9329
Newark Tactile Sw, Spst-No, 0.05A, 12Vdc, 250Gf, Product Range:Tl1105 Series, Actuator Orientation:Side Actuated, Switch Mounting:Through Hole, Right Angle, Actuator Style:Round Button, Actuating Force:250Gf, Contact Rating:50Ma At 12Vdc Rohs Compliant: Yes |E-Switch TL1105XF250Q RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2750
  • 1 $0.0520
  • 10 $0.0520
  • 25 $0.0520
  • 50 $0.0520
  • 100 $0.0520
  • 250 $0.0520
  • 500 $0.0520
  • 1,000 $0.0520
$0.0520 Buy Now
DISTI # EG4560-ND
DigiKey SWITCH TACTILE SPST-NO 0.05A 12V Min Qty: 1 Lead time: 15 Weeks Container: Bulk 2382
In Stock
  • 1 $0.3700
  • 10 $0.3190
  • 25 $0.2984
  • 100 $0.2671
  • 250 $0.2475
  • 500 $0.2336
  • 1,000 $0.2206
  • 3,000 $0.2021
  • 5,000 $0.1945
$0.1945 / $0.3700 Buy Now
DISTI # 612-TL1105XF250Q
Mouser Electronics Tactile Switches TACT, 50mA 12VDC, SPST-NO Off-(On), Through Hole, Right Angle PC Pin RoHS: Compliant 5525
  • 1 $0.3500
  • 10 $0.2880
  • 100 $0.2650
  • 250 $0.2500
  • 500 $0.2400
  • 1,000 $0.2290
  • 2,000 $0.2130
  • 5,000 $0.2040
  • 10,000 $0.2020
$0.2020 / $0.3500 Buy Now
DISTI # 36510585
Verical Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 2.45N Thru-Hole Min Qty: 962 Package Multiple: 1 Americas - 2750
  • 962 $0.0786
  • 1,000 $0.0760
  • 2,500 $0.0738
$0.0738 / $0.0786 Buy Now
DISTI # TL1105XF250Q
TME Microswitch TACT, SPST-NO, Pos: 2, 0.05A/50VDC, THT, 2.45N, 5.85mm Min Qty: 10000 0
  • 10,000 $0.2700
$0.2700 RFQ

Part Details for TL1105XF250Q

TL1105XF250Q CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TL1105XF250Q Part Data Attributes

Parametric Data
TL1105XF250Q E-Switch Inc
Buy Now Datasheet
Compare Parts:
TL1105XF250Q E-Switch Inc Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.94N, Solder Terminal, Through Hole-right Angle
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer E-SWITCH INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.40
Samacsys Manufacturer E-Switch
Actuator Color RED
Actuator Travel 0.25 mm
Body Breadth 7 mm
Body Color BLACK
Body Height 6.5 mm
Body Length or Diameter 7.2 mm
Center Contact Plating SILVER
Circuit Configuration 1X1
Contact Current(DC)-Max 0.05 A
Contact (DC) Max Rating R Load 0.05A@12VDC
Contact Resistance 0.1 mΩ
Contact Voltage(DC)-Max 12 V
Dielectric Withstand Volts 250VAC V
Electrical Life 100000 Cycle(s)
End Contact Plating SILVER
Insulation Resistance 100000000 Ω
JESD-609 Code e4
Mounting Feature THROUGH HOLE-RIGHT ANGLE
Number of Switches 1
Operating Force-Max 2.94 N
Operating Temperature-Max 70 °C
Operating Temperature-Min -20 °C
PCB Hole Count 4
Surface Mount NO
Switch Action MOMENTARY
Switch Function SPST
Switch Type KEYPAD SWITCH
Terminal Finish Silver (Ag)
Terminal Length 0.138 inch
Terminal Material BRASS
Termination Type SOLDER
