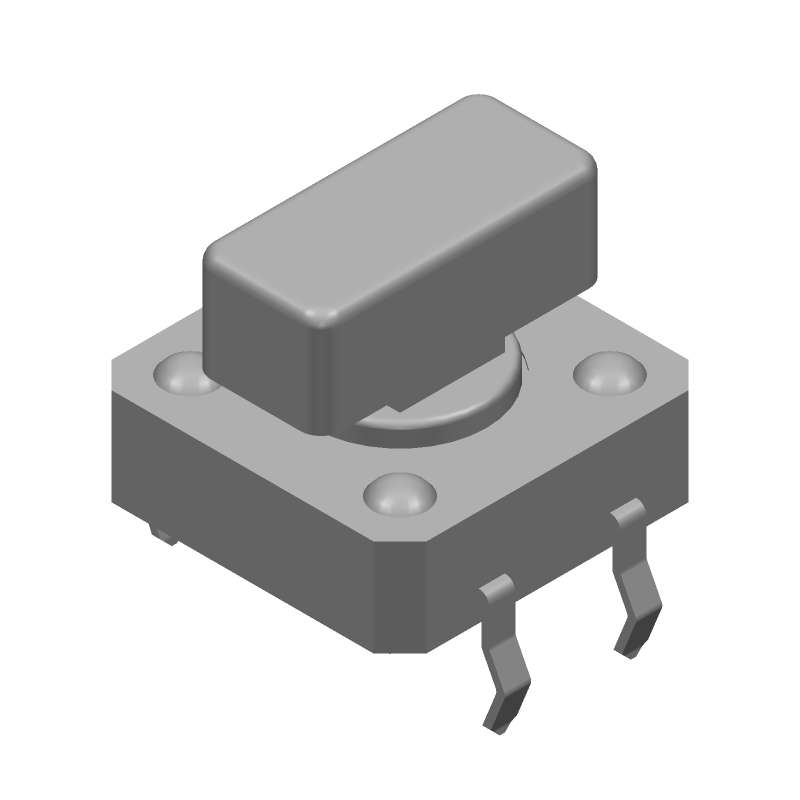

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL1100F260Q5JBLU by E-Switch Inc
Results Overview of TL1100F260Q5JBLU by E-Switch Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
TL1100F260Q5JBLU Information
TL1100F260Q5JBLU by E-Switch Inc is a Special Switch.
Special Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for TL1100F260Q5JBLU
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15N9256
|
Newark | Ea Rohs Compliant: Yes |E-Switch TL1100F260Q5JBLU RoHS: Compliant Min Qty: 192 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.5900 / $0.6920 | Buy Now |
|
DISTI #
TL1100F260Q5JBLU-ND
|
DigiKey | SWITCH TACTILE SPST-NO 0.05A 12V Min Qty: 192 Lead time: 15 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.5876 | Buy Now |
|
DISTI #
612-TL1100F260Q5JBLU
|
Mouser Electronics | Tactile Switches Thru hole 12mmx12mm BLUE Cap RoHS: Compliant | 0 |
|
$0.4870 / $0.8400 | Order Now |
|
DISTI #
74852675
|
RS | Tactile Switch, SPST-NO, OFF-(ON), 50 mA, 12V DC, PC Pin, TL1100 Series Min Qty: 192 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Bulk | 0 |
|
$0.9460 | RFQ |
Part Details for TL1100F260Q5JBLU
TL1100F260Q5JBLU CAD Models
TL1100F260Q5JBLU Part Data Attributes
|
|
TL1100F260Q5JBLU
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
TL1100F260Q5JBLU
E-Switch Inc
Special Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.22 inch | |
| Actuator Material | POLYBUTYLENE TEREPHTHALATE | |
| Actuator Travel | 0.3048 mm | |
| Actuator Type | PUSHBUTTON | |
| Body Breadth | 11.9888 mm | |
| Body Height | 3.9116 mm | |
| Body Length or Diameter | 11.9888 mm | |
| Center Contact Material | PHOSPHOR BRONZE | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 0.05 A | |
| Contact (DC) Max Rating R Load | 0.05A@12VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 12 V | |
| Dielectric Withstand Volts | 250VAC V | |
| Electrical Life | 100000 Cycle(s) | |
| End Contact Material | PHOSPHOR BRONZE | |
| End Contact Plating | SILVER | |
| Housing Material | POLYBUTYLENE TEREPHTHALATE | |
| Insulation Resistance | 100000000 Ω | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| PCB Hole Count | 4 | |
| Surface Mount | NO | |
| Switch Function | SPST | |
| Terminal Finish | Silver (Ag) | |
| Terminal Length | 0.138 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
