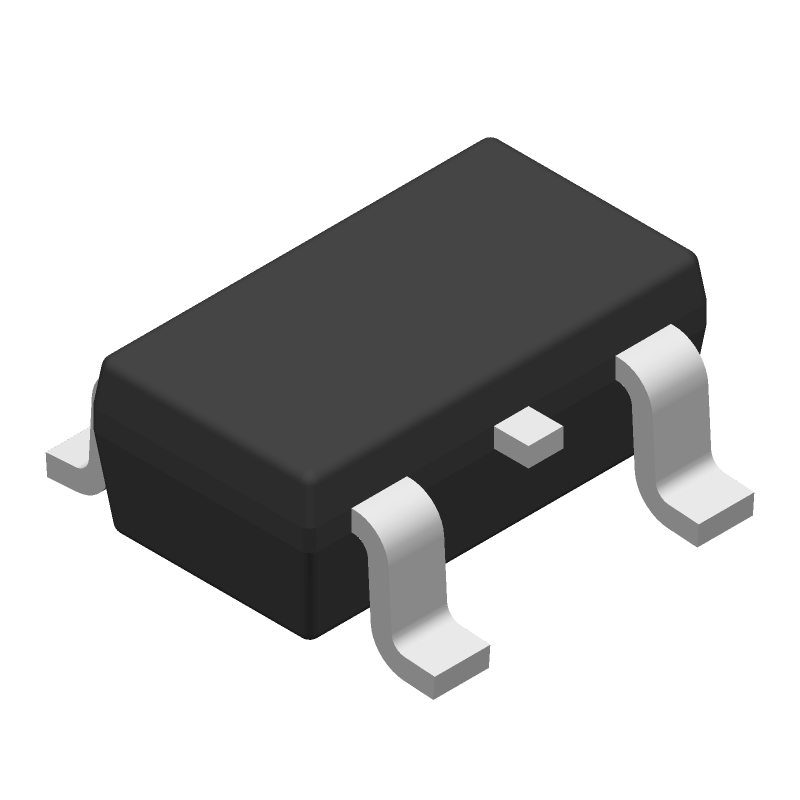

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL081HIDBVR by Texas Instruments
Results Overview of TL081HIDBVR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TL081HIDBVR Information
TL081HIDBVR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TL081HIDBVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TL081HIDBVRCT-ND
|
DigiKey | IC OPAMP JFET 1 CIRCUIT SOT23-5 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
8638 In Stock |
|
$0.0630 / $0.1800 | Buy Now |
|
DISTI #
595-TL081HIDBVR
|
Mouser Electronics | Operational Amplifiers - Op Amps Single 40-V 5.25-M Hz 4-mV offset volt RoHS: Compliant | 9978 |
|
$0.0660 / $0.1800 | Buy Now |
|
DISTI #
TL081HIDBVR
|
TME | IC: operational amplifier, 3MHz, Ch: 1, SOT23-5, 4.5÷40VDC Min Qty: 1 | 966 |
|
$0.0650 / $0.5130 | Buy Now |
|
|
Ameya Holding Limited | 261855 |
|
RFQ | ||
|
|
Vyrian | Amplifiers | 74410 |
|
RFQ |
Part Details for TL081HIDBVR
TL081HIDBVR CAD Models
TL081HIDBVR Part Data Attributes
|
|
TL081HIDBVR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TL081HIDBVR
Texas Instruments
Single, 40-V, 5.25-MHz, 4-mV offset voltage, 20-V/µs, In to V+ op amp with -40°C to 125°C operation 5-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.005 µA | |
| Bias Current-Max (IIB) @25C | 0.00012 µA | |
| Common-mode Reject Ratio-Min | 100 dB | |
| Common-mode Reject Ratio-Nom | 105 dB | |
| Frequency Compensation | NO | |
| Input Offset Current-Max (IIO) | 0.00025 µA | |
| Input Offset Voltage-Max | 4000 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Seated Height-Max | 1.45 mm | |
| Slew Rate-Nom | 20 V/us | |
| Supply Current-Max | 1.125 mA | |
| Supply Voltage Limit-Max | 42 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 5250 | |
| Voltage Gain-Min | 562341 | |
| Wideband | NO | |
| Width | 1.6 mm |
Alternate Parts for TL081HIDBVR
This table gives cross-reference parts and alternative options found for TL081HIDBVR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TL081HIDBVR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TL081HIDCKR | Texas Instruments | Check for Price | Single, 40-V, 5.25-MHz, 4-mV offset voltage, 20-V/µs, In to V+ op amp with -40°C to 125°C operation 5-SC70 -40 to 125 | TL081HIDBVR vs TL081HIDCKR |
| TL081HIDR | Texas Instruments | Check for Price | Single, 40-V, 5.25-MHz, 4-mV offset voltage, 20-V/µs, In to V+ op amp with -40°C to 125°C operation 8-SOIC -40 to 125 | TL081HIDBVR vs TL081HIDR |
TL081HIDBVR Frequently Asked Questions (FAQ)
-
The maximum power supply voltage for the TL081HIDBVR is ±18V.
-
Yes, the TL081HIDBVR has a bandwidth of 3 MHz and a slew rate of 13 V/μs, making it suitable for high-frequency applications.
-
The input impedance of the TL081HIDBVR is typically 2 MΩ, but it can be as high as 10 MΩ for some applications.
-
Yes, the TL081HIDBVR can be used in single-supply applications, but it requires a voltage divider or other level-shifting circuitry to bias the input signals.
-
No, the TL081HIDBVR is not radiation-hardened and is not suitable for use in high-radiation environments.
