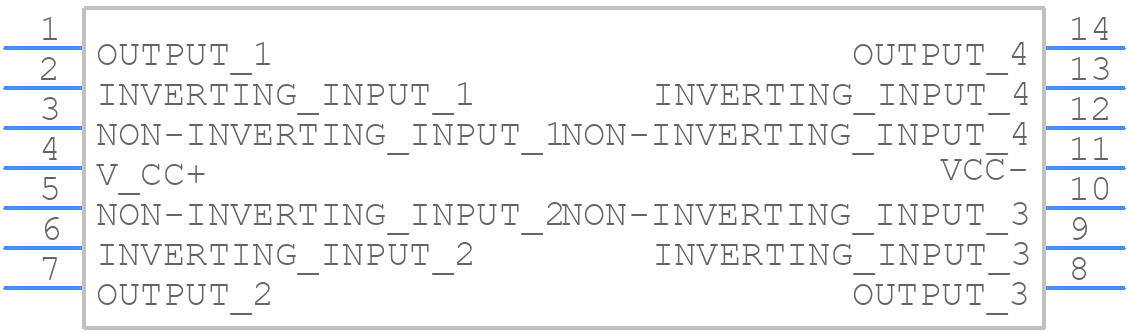

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL064CDT by STMicroelectronics
Results Overview of TL064CDT by STMicroelectronics
- Distributor Offerings: (27 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
TL064CDT Information
TL064CDT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TL064CDT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AH2993
|
Newark | Op-Amp, 1Mhz, 70Deg C, Soic-14, No. Of Channels:4Channels, Gain Bandwidth Product:1Mhz, Supply Voltage Range:6V To 36V, Ic Case/Package:Soic, No. Of Pins:14Pins, Amplifier Type:General Purpose, Rail To Rail:-, Product Range:- Rohs Compliant: Yes |Stmicroelectronics TL064CDT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 4975 |
|
$0.1510 / $0.1650 | Buy Now |
|
DISTI #
45Y8661
|
Newark | Operational Amplifier, Quad, 1 Mhz, 4, 3.5 V/ S, 6V To 36V, Soic, 14 Rohs Compliant: Yes |Stmicroelectronics TL064CDT RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.1750 | Buy Now |
|
DISTI #
26AM5004
|
Newark | Std Amplifiers |Stmicroelectronics TL064CDT RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1300 | Buy Now |
|
DISTI #
497-2196-1-ND
|
DigiKey | IC OPAMP JFET 4 CIRCUIT 14SO Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
87710 In Stock |
|
$0.1750 / $0.4600 | Buy Now |
|
DISTI #
TL064CDT
|
Avnet Americas | OP Amp Quad GP ?18V 14-Pin SOIC T/R - Tape and Reel (Alt: TL064CDT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Reel | 7500 |
|
$0.1147 / $0.1298 | Buy Now |
|
DISTI #
TL064CDT
|
Avnet Americas | OP Amp Quad GP ?18V 14-Pin SOIC T/R - Tape and Reel (Alt: TL064CDT) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.1298 / $0.1386 | Buy Now |
|
DISTI #
511-TL064CDT
|
Mouser Electronics | Operational Amplifiers - Op Amps Quad Low Power JFET RoHS: Compliant | 4013 |
|
$0.1520 / $0.4600 | Buy Now |
|
DISTI #
E02:0323_00213926
|
Arrow Electronics | Op Amp Quad Low Power Amplifier ±18V 14-Pin SOIC T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks | Europe - 5000 |
|
$0.1772 | Buy Now |
|
DISTI #
V36:1790_06568468
|
Arrow Electronics | Op Amp Quad Low Power Amplifier ±18V 14-Pin SOIC T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 10 Weeks Date Code: 2345 | Americas - 5000 |
|
$0.1517 | Buy Now |
|
|
STMicroelectronics | Low input current (200pA), low power (200uA) 36V JFET Op-Amps, quad RoHS: Compliant Min Qty: 1 | 4013 |
|
$0.2200 / $0.4500 | Buy Now |
Part Details for TL064CDT
TL064CDT CAD Models
TL064CDT Part Data Attributes
|
|
TL064CDT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TL064CDT
STMicroelectronics
Low input current (200pA), low power (200uA) 36V JFET Op-Amps, quad
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | MICRO, PLASTIC, SO-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.01 µA | |
| Bias Current-Max (IIB) @25C | 0.0004 µA | |
| Common-mode Reject Ratio-Nom | 76 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 20000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 1.5 V/us | |
| Slew Rate-Nom | 3.5 V/us | |
| Supply Current-Max | 1 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Unity Gain BW-Nom | 1000 | |
| Voltage Gain-Min | 3000 | |
| Width | 3.9 mm |
Alternate Parts for TL064CDT
This table gives cross-reference parts and alternative options found for TL064CDT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TL064CDT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TL064CDR | Rochester Electronics LLC | Check for Price | QUAD OP-AMP, 20000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 | TL064CDT vs TL064CDR |
TL064CDT Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the TL064CDT is 500mW. However, this value can be derated based on the ambient temperature and the package type.
-
While the TL064CDT is an op-amp, it can be used as a comparator in a pinch. However, it's not recommended as it's not optimized for comparator applications and may not provide the best performance.
-
The input impedance of the TL064CDT is typically around 2MΩ, but this can vary depending on the specific application and operating conditions.
-
The TL064CDT is rated for operation up to 125°C, but the maximum junction temperature is 150°C. However, it's recommended to derate the device for high-temperature operation to ensure reliability.
-
The slew rate of the TL064CDT is 0.5V/μs, which is relatively slow compared to other op-amps. This can affect the device's ability to handle high-frequency signals.
