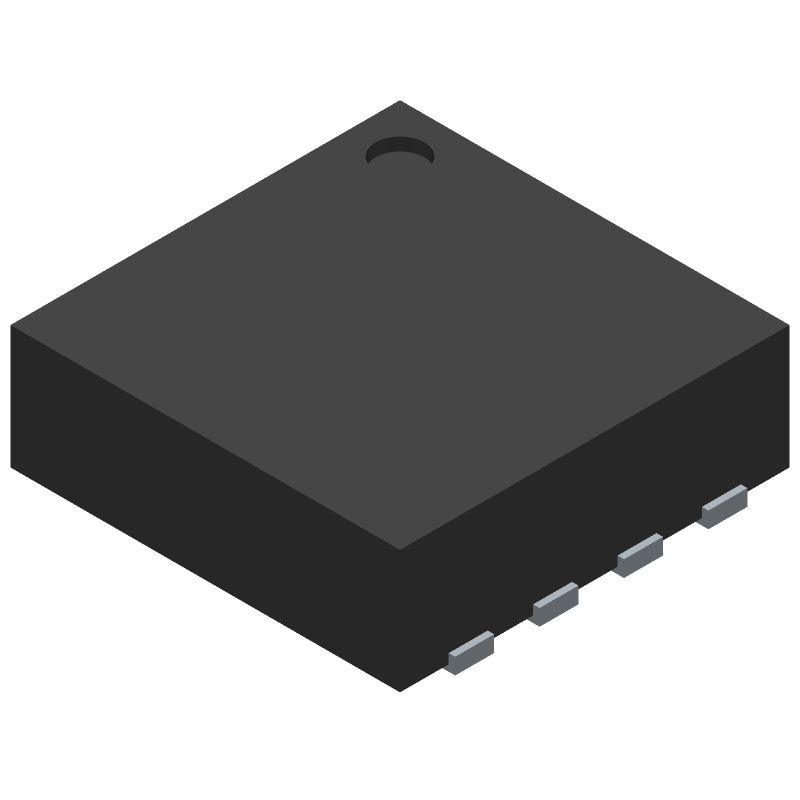

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TJA1057GTKZ by NXP Semiconductors
Results Overview of TJA1057GTKZ by NXP Semiconductors
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TJA1057GTKZ Information
TJA1057GTKZ by NXP Semiconductors is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for TJA1057GTKZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85AC2247
|
Newark | Can Transceiver, 5Mbps, -40 To 150Deg C, Ic Interface Type:Can, No. Of Tx Buffers:-, No. Of Rx Buffers:-, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, Interface Case Style:Soic, No. Of Pins:8Pins, Operating Temperature Rohs Compliant: Yes |Nxp TJA1057GTKZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4168 |
|
$0.4330 / $0.9210 | Buy Now |
|
DISTI #
568-TJA1057GTKZCT-ND
|
DigiKey | IC TRANSCEIVER HALF 1/1 8HVSON Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2052 In Stock |
|
$0.4151 / $0.9400 | Buy Now |
|
DISTI #
TJA1057GTKZ
|
Avnet Americas | CAN Interface, ISO 11898-2, CAN FD Transceiver, 5 Mbps, 4.75 V, 5.25 V, HVSON, 8 Pins - Tape and Reel (Alt: TJA1057GTKZ) Min Qty: 6000 Package Multiple: 6000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.3461 / $0.3709 | Buy Now |
|
DISTI #
771-TJA1057GTKZ
|
Mouser Electronics | CAN Interface IC High-speed CAN transceiver RoHS: Compliant | 22435 |
|
$0.4040 / $0.9400 | Buy Now |
|
DISTI #
87907472
|
Verical | CAN 5Mbps Normal/Silent 5V Automotive AEC-Q100 8-Pin HVSON EP T/R RoHS: Compliant Min Qty: 631 Package Multiple: 1 Date Code: 2201 | Americas - 6000 |
|
$0.4095 / $0.5945 | Buy Now |
|
DISTI #
79931276
|
Verical | CAN 5Mbps Normal/Silent 5V Automotive AEC-Q100 8-Pin HVSON EP T/R RoHS: Compliant Min Qty: 72 Package Multiple: 1 Date Code: 2402 | Americas - 5749 |
|
$0.4370 / $0.8640 | Buy Now |
|
|
Rochester Electronics | TJA1057GTK - HS-CAN Transceivers RoHS: Compliant Status: Active Min Qty: 1 | 6000 |
|
$0.3276 / $0.5284 | Buy Now |
|
DISTI #
TJA1057GTKZ
|
Avnet Silica | CAN Interface ISO 118982 CAN FD Transceiver 5 Mbps 475 V 525 V HVSON 8 Pins (Alt: TJA1057GTKZ) RoHS: Compliant Min Qty: 6000 Package Multiple: 6000 Lead time: 12 Weeks, 0 Days | Silica - 36000 |
|
Buy Now | |
|
DISTI #
TJA1057GTKZ
|
EBV Elektronik | CAN Interface ISO 118982 CAN FD Transceiver 5 Mbps 475 V 525 V HVSON 8 Pins (Alt: TJA1057GTKZ) RoHS: Compliant Min Qty: 6000 Package Multiple: 6000 Lead time: 12 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for TJA1057GTKZ
TJA1057GTKZ CAD Models
TJA1057GTKZ Part Data Attributes
|
|
TJA1057GTKZ
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
TJA1057GTKZ
NXP Semiconductors
TJA1057 - High-speed CAN transceiver SON 8-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SON | |
| Pin Count | 8 | |
| Manufacturer Package Code | SOT782-1 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | NXP | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Telecom IC Type | INTERFACE CIRCUIT |
TJA1057GTKZ Frequently Asked Questions (FAQ)
-
The TJA1057GTKZ supports cable lengths up to 40 meters, but this can vary depending on the specific application and cable characteristics.
-
The TJA1057GTKZ has a built-in common-mode filter that helps to reject common-mode noise and voltage, ensuring reliable data transmission.
-
The TJA1057GTKZ supports data rates up to 500 kbps, making it suitable for a wide range of automotive and industrial applications.
-
Yes, the TJA1057GTKZ is compatible with other CAN transceivers that comply with the ISO 11898-2 standard, ensuring interoperability in multi-vendor systems.
-
The TJA1057GTKZ has built-in fault-tolerant features, including bus fault detection and error detection, to ensure reliable data transmission and minimize errors.
