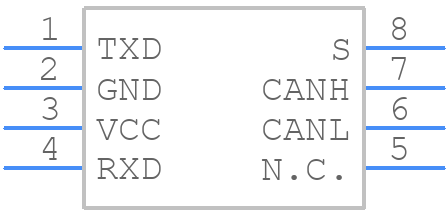

Part Symbol
-
Footprint
-

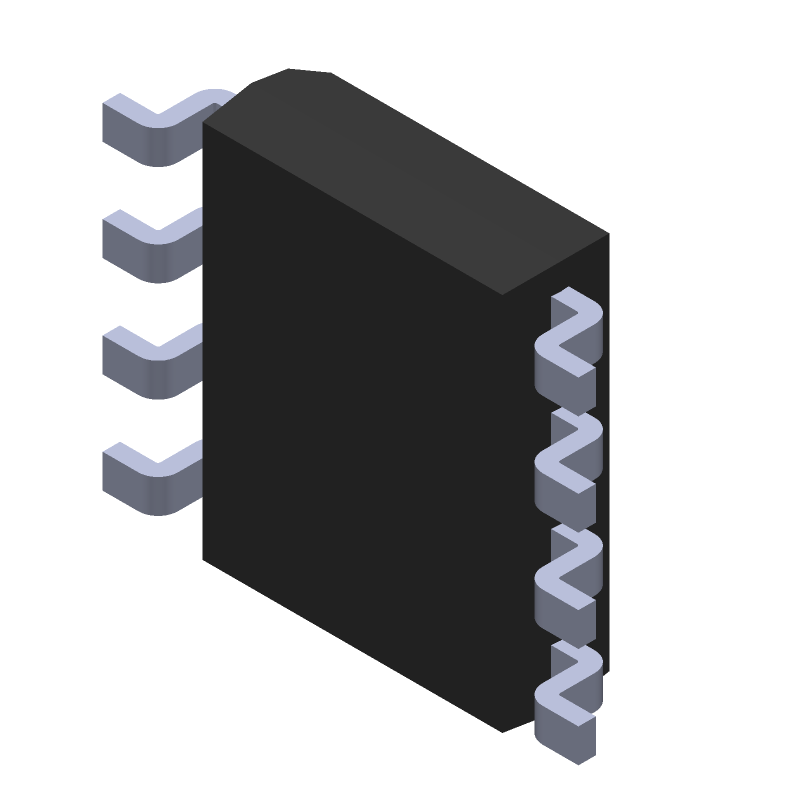

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TJA1057GTJ by NXP Semiconductors
Results Overview of TJA1057GTJ by NXP Semiconductors
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TJA1057GTJ Information
TJA1057GTJ by NXP Semiconductors is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for TJA1057GTJ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85Y0320
|
Newark | Can Transceiver, Aec-Q100, 5Mbps, Soic, Ic Interface Type:-, No. Of Tx Buffers:-, No. Of Rx Buffers:-, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, Interface Case Style:Soic, No. Of Pins:8Pins, Operating Temperature Min:-40°C, rohs Compliant: Yes |Nxp TJA1057GTJ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1681 |
|
$0.5660 / $0.9310 | Buy Now |
|
DISTI #
29Y8340
|
Newark | High-Speed Can Transceiver/ Reel Rohs Compliant: Yes |Nxp TJA1057GTJ RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.4020 / $0.5450 | Buy Now |
|
DISTI #
568-13280-1-ND
|
DigiKey | IC TRANSCEIVER HALF 1/1 8SO Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2040 In Stock |
|
$0.4224 / $0.9500 | Buy Now |
|
DISTI #
771-TJA1057GTJ
|
Mouser Electronics | CAN Interface IC High-speed CAN transceiver RoHS: Compliant | 7220 |
|
$0.4370 / $0.9500 | Buy Now |
|
DISTI #
V72:2272_06547352
|
Arrow Electronics | CAN 5Mbps Normal/Silent 5V Automotive AEC-Q100 8-Pin SO T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2349 Container: Cut Strips | Americas - 4445 |
|
$0.4248 / $0.4611 | Buy Now |
|
DISTI #
77264628
|
Verical | CAN 5Mbps Normal/Silent 5V Automotive AEC-Q100 8-Pin SO T/R RoHS: Compliant Min Qty: 70 Package Multiple: 1 Date Code: 2401 | Americas - 5904 |
|
$0.3650 / $0.4080 | Buy Now |
|
DISTI #
TJA1057GTJ
|
IBS Electronics | R-PDSO-G8 TJA1057 TAPE &, REEL (TR) CANBUS INTERFACE DRIVER 300MV 70MA 4.9MM 5MBPS Min Qty: 2500 Package Multiple: 1 | 0 |
|
$0.5070 / $0.5265 | Buy Now |
|
DISTI #
TJA1057GTJ
|
Avnet Silica | CAN 1Mbps Standby 525V 8Pin SO TR (Alt: TJA1057GTJ) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
TJA1057GTJ
|
EBV Elektronik | CAN 1Mbps Standby 525V 8Pin SO TR (Alt: TJA1057GTJ) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Win Source Electronics | IC TRANSCEIVER HALF 1/1 8SO / 1/1 Transceiver Half CANbus 8-SO | 33100 |
|
$0.4860 / $0.7290 | Buy Now |
Part Details for TJA1057GTJ
TJA1057GTJ CAD Models
TJA1057GTJ Part Data Attributes
|
|
TJA1057GTJ
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
TJA1057GTJ
NXP Semiconductors
TJA1057 - High-speed CAN transceiver SOIC 8-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SOIC | |
| Package Description | 3.90 MM, PLASTIC, MS-012, SOT96-1, SO-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | SOT96-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | NXP | |
| Data Rate | 5000 Mbps | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Transceivers | 1 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 70 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Telecom IC Type | INTERFACE CIRCUIT | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for TJA1057GTJ
This table gives cross-reference parts and alternative options found for TJA1057GTJ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TJA1057GTJ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX3058ASA+ | Maxim Integrated Products | $1.6354 | Interface Circuit, 1-Trnsvr, BICMOS, PDSO8, 0.150 INCH, SOIC-8 | TJA1057GTJ vs MAX3058ASA+ |
| AMIS42671ICAB1RG | onsemi | Check for Price | CAN transceiver, high speed, for long networks, SOIC-8 Narrow Body, 3000-REEL | TJA1057GTJ vs AMIS42671ICAB1RG |
| MAX13052ASA+T | Maxim Integrated Products | Check for Price | Interface Circuit, 1-Trnsvr, BICMOS, PDSO8, 0.150 INCH, LEAD FREE, MS-012AA, SOIC-8 | TJA1057GTJ vs MAX13052ASA+T |
| TJA1040T/N,118 | NXP Semiconductors | Check for Price | TJA1040 - High-speed CAN transceiver with standby mode SOIC 8-Pin | TJA1057GTJ vs TJA1040T/N,118 |
| PCA82C250T | NXP Semiconductors | Check for Price | IC DATACOM, INTERFACE CIRCUIT, PDSO8, 3.90 MM, PLASTIC, MS-012, SOT96-1, SOP-8, Network Interface | TJA1057GTJ vs PCA82C250T |
| AMIS42670ICAH2RG | onsemi | Check for Price | CAN Transceiver, High Speed, for long networks, SOIC 8, 3000-REEL | TJA1057GTJ vs AMIS42670ICAH2RG |
| MAX3058ASA-T | Maxim Integrated Products | Check for Price | Interface Circuit, 1-Trnsvr, BICMOS, PDSO8, 0.150 INCH, SOIC-8 | TJA1057GTJ vs MAX3058ASA-T |
| MAX13052ASA-T | Maxim Integrated Products | Check for Price | Interface Circuit, 1-Trnsvr, BICMOS, PDSO8, 0.150 INCH, MS-012AA, SOIC-8 | TJA1057GTJ vs MAX13052ASA-T |
| TJA1051T/3/1U | NXP Semiconductors | Check for Price | TJA1051 - High-speed CAN transceiver SOIC 8-Pin | TJA1057GTJ vs TJA1051T/3/1U |
| PCA82C251T/N,118 | NXP Semiconductors | Check for Price | IC DATACOM, INTERFACE CIRCUIT, PDSO8, 3.90 MM, PLASTIC, MS-012AA, SOT-96-1, SOP-8, Network Interface | TJA1057GTJ vs PCA82C251T/N,118 |
TJA1057GTJ Frequently Asked Questions (FAQ)
-
The TJA1057GTJ supports cable lengths up to 40 meters, depending on the specific application and cable characteristics.
-
The TJA1057GTJ has a built-in common-mode filter to reject common-mode voltages, ensuring reliable data transmission.
-
The TJA1057GTJ supports data rates up to 500 kbps, making it suitable for various automotive and industrial applications.
-
Yes, the TJA1057GTJ is compatible with other CAN transceivers that comply with the ISO 11898-2 standard.
-
The TJA1057GTJ has built-in fault detection and error handling mechanisms to ensure reliable data transmission and minimize errors.
