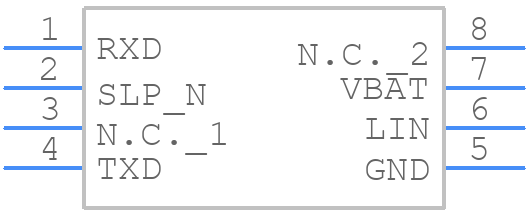

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TJA1029T,118 by NXP Semiconductors
Results Overview of TJA1029T,118 by NXP Semiconductors
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TJA1029T,118 Information
TJA1029T,118 by NXP Semiconductors is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for TJA1029T,118
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31AC7092
|
Newark | Lin Transceiver, Aec-Q100, 20Kbaud, Hvson, Msl:Msl 1 - Unlimited, Svhc:No Svhc (07-Jul-2017) Rohs Compliant: Yes |Nxp TJA1029T,118 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4715 |
|
$0.7130 / $0.9410 | Buy Now |
|
DISTI #
55W7345
|
Newark | Lin 2.2A/Sae J2602 Transceiver With Txd Dominant Timeout/ Reel Rohs Compliant: Yes |Nxp TJA1029T,118 RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.4880 / $0.6610 | Buy Now |
|
DISTI #
568-14410-1-ND
|
DigiKey | IC TRANSCEIVER 1/1 8SO Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1870 In Stock |
|
$0.4821 / $0.9400 | Buy Now |
|
DISTI #
TJA1029T,118
|
Avnet Americas | LIN Transceiver, 20 Kbaud, LIN 2.X, SAE J2602, 5V to 18V Supply, 3.3V/5V Out, AEC-Q100, SOIC-8 - Tape and Reel (Alt: TJA1029T,118) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Reel | 2500 |
|
$0.4271 / $0.4578 | Buy Now |
|
DISTI #
771-TJA1029T118
|
Mouser Electronics | LIN Transceivers LIN 2.2A/SAE J2602 transceiver with TXD dominant timeout RoHS: Compliant | 9583 |
|
$0.4870 / $0.9500 | Buy Now |
|
DISTI #
E02:0323_06653373
|
Arrow Electronics | LIN Transceiver 20kBd Automotive AEC-Q100 8-Pin SO T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks Date Code: 2440 | Europe - 47500 |
|
$0.4917 | Buy Now |
|
DISTI #
88032965
|
Verical | LIN Transceiver 20kBd Automotive AEC-Q100 8-Pin SO T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 2440 | Americas - 47500 |
|
$0.4948 | Buy Now |
|
DISTI #
79931392
|
Verical | LIN Transceiver 20kBd Automotive AEC-Q100 8-Pin SO T/R RoHS: Compliant Min Qty: 58 Package Multiple: 1 Date Code: 2405 | Americas - 2500 |
|
$0.5410 / $0.8640 | Buy Now |
|
|
Future Electronics | TJA1029 Series 18 V Surface Mount LIN 2.2A/SAE J2602 Transceiver - SOIC-8 Min Qty: 2500 Package Multiple: 2500 |
35000 null |
|
$0.4700 / $0.4900 | Buy Now |
|
DISTI #
TJA1029T,118
|
Avnet Silica | LIN Transceiver 20 Kbaud LIN 2X SAE J2602 5V to 18V Supply 33V5V Out AECQ100 SOIC8 (Alt: TJA1029T,118) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days | Silica - 5000 |
|
Buy Now |
Part Details for TJA1029T,118
TJA1029T,118 CAD Models
TJA1029T,118 Part Data Attributes
|
|
TJA1029T,118
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
TJA1029T,118
NXP Semiconductors
TJA1029 - LIN 2.2A/SAE J2602 transceiver with TXD dominant timeout SOIC 8-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SOIC | |
| Package Description | 3.90 MM, GREEN, PLASTIC, SOT96-1, MS-012, SO-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | SOT96-1 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | NXP | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Telecom IC Type | INTERFACE CIRCUIT | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
