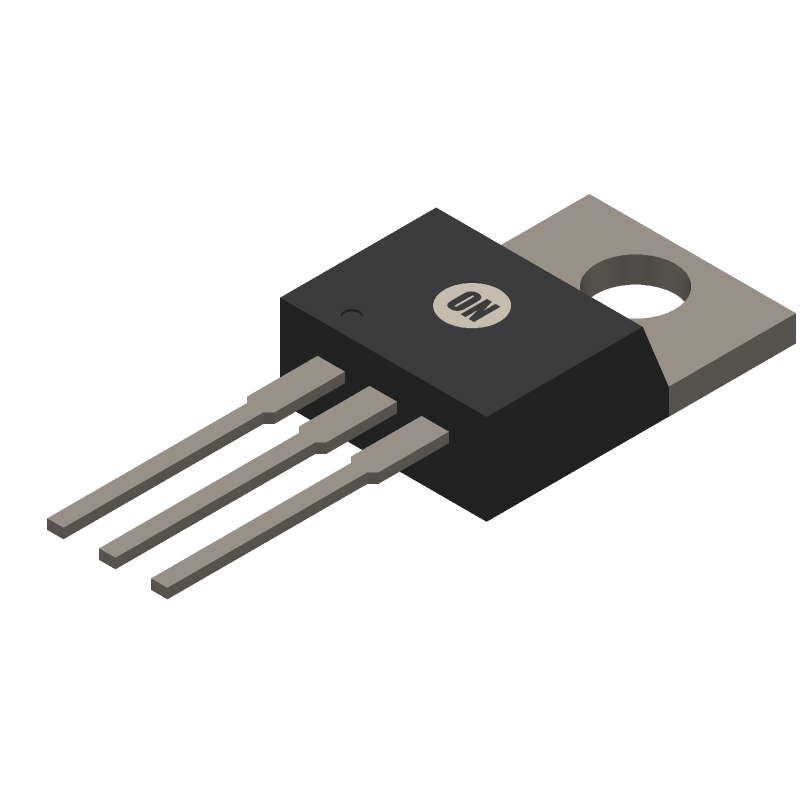

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TIP107G by onsemi
Results Overview of TIP107G by onsemi
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TIP107G Information
TIP107G by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for TIP107G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
82AC0253
|
Newark | Bip T0220 Pnp 8A 100V Rohs Compliant: Yes |Onsemi TIP107G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.4150 | Buy Now |
|
DISTI #
TIP107GOS-ND
|
DigiKey | TRANS PNP DARL 100V 8A TO-220 Min Qty: 1 Lead time: 11 Weeks Container: Tube |
3894 In Stock |
|
$0.4037 / $1.6500 | Buy Now |
|
DISTI #
TIP107G
|
Avnet Americas | Transistor Darlington PNP 100V 8A 3-Pin TO-220AB Rail - Rail/Tube (Alt: TIP107G) RoHS: Compliant Min Qty: 50 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Tube | 0 |
|
$0.3988 / $0.4365 | Buy Now |
|
DISTI #
863-TIP107G
|
Mouser Electronics | Darlington Transistors 8A 100V Bipolar Power PNP RoHS: Compliant | 4516 |
|
$0.4030 / $1.5600 | Buy Now |
|
DISTI #
V99:2348_07316837
|
Arrow Electronics | Trans Darlington PNP 100V 8A 2000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2418 | Americas - 69 |
|
$0.4099 / $0.7919 | Buy Now |
|
|
Onlinecomponents.com | ON Semi TIP107G PNP Darlington Transistor, 8 A 100 V HFE: 200, 3-Pin TO-220AB RoHS: Compliant |
600 In Stock |
|
$0.3898 / $0.4821 | Buy Now |
|
DISTI #
85946467
|
Verical | Trans Darlington PNP 100V 8A 2000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 150 Package Multiple: 50 Date Code: 2443 | Americas - 600 |
|
$0.5303 / $0.6267 | Buy Now |
|
|
Future Electronics | TIP Series 100 V 8 A PNP Medium Power Darlington Silicon Transistor TO-220AB Min Qty: 50 Package Multiple: 50 |
1050 null |
|
$0.3800 / $0.4200 | Buy Now |
|
DISTI #
TIP107G
|
TME | Transistor: PNP, bipolar, Darlington, 100V, 8A, 2W, TO220AB Min Qty: 1 | 90 |
|
$0.5060 / $1.0320 | Buy Now |
|
DISTI #
TIP107G
|
IBS Electronics | TIP107G by ONSEMI is a PNP Darlington transistor with 8 A current, 100 V voltage, and HFE of 200. It features a 3-pin TO-220AB package, ideal for medium power applications. Min Qty: 50 Package Multiple: 1 | 2650 |
|
$0.4940 / $0.5460 | Buy Now |
Part Details for TIP107G
TIP107G CAD Models
TIP107G Part Data Attributes
|
|
TIP107G
onsemi
Buy Now
Datasheet
|
Compare Parts:
TIP107G
onsemi
8.0 A, 100 V PNP Darlington Power Bipolar Junction Transistor, TO-220 3 LEAD STANDARD, 50-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-220 3 LEAD STANDARD | |
| Package Description | LEAD FREE, PLASTIC, CASE 221A-09, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 221A | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | LEADFORM OPTIONS ARE AVAILABLE | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 8 A | |
| Collector-Emitter Voltage-Max | 100 V | |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | |
| DC Current Gain-Min (hFE) | 200 | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Power Dissipation-Max (Abs) | 80 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 4 MHz |
Alternate Parts for TIP107G
This table gives cross-reference parts and alternative options found for TIP107G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TIP107G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TIP107 | Bourns Inc | Check for Price | Power Bipolar Transistor, 8A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, PLASTIC, TO-220, 3 PIN | TIP107G vs TIP107 |
| TIP107 | Baneasa SA | Check for Price | Power Bipolar Transistor, 8A I(C), 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | TIP107G vs TIP107 |
| TIP107 | Rectron Semiconductor | Check for Price | Power Bipolar Transistor, 8A I(C), 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | TIP107G vs TIP107 |
| TIP107 | onsemi | Check for Price | 8.0 A, 100 V PNP Darlington Bipolar Power Transistor, 1200-BLKBG | TIP107G vs TIP107 |
| TIP107 | Continental Device India Ltd | Check for Price | Power Bipolar Transistor, 8A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, PLASTIC PACKAGE-3 | TIP107G vs TIP107 |
| TIP107TU | Fairchild Semiconductor Corporation | Check for Price | PNP Epitaxial Silicon Darlington Transistor, TO-220, MOLDED, 3LEAD, JEDEC VARIATION AB, 1000/RAIL | TIP107G vs TIP107TU |
| TIP107 | Micro Commercial Components | Check for Price | Power Bipolar Transistor, 8A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, PLASTIC, TO-220, 3 PIN | TIP107G vs TIP107 |
| TIP107 | YAGEO Corporation | Check for Price | Power Bipolar Transistor, 8A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220AB, 3 PIN | TIP107G vs TIP107 |
| TIP107 | TT Electronics Resistors | Check for Price | Power Bipolar Transistor, 8A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220AB, 3 PIN | TIP107G vs TIP107 |
| TIP107 | General Transistor Corp | Check for Price | Power Bipolar Transistor, 8A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220AB, 3 PIN | TIP107G vs TIP107 |
TIP107G Frequently Asked Questions (FAQ)
-
The TIP107G can operate safely between -65°C to 150°C, but the recommended operating temperature range is -40°C to 125°C.
-
To ensure proper biasing, the base-emitter voltage (VBE) should be between 0.6V to 0.8V, and the collector-emitter voltage (VCE) should be at least 1V to 2V higher than the input voltage.
-
The TIP107G can handle a maximum continuous collector current (IC) of 5A, and a peak current of 10A for a short duration (less than 100ms).
-
To prevent overheating, ensure proper heat sinking, use a heat sink with a thermal resistance of less than 10°C/W, and keep the junction temperature (TJ) below 150°C.
-
Yes, the TIP107G can be used as a switch, but it's essential to ensure the base is properly driven to achieve a low saturation voltage (VCE(sat)) and minimize power losses.
