TGC4510-SM Information
TGC4510-SM by Qorvo is an RF/Microwave Up/Down Converter.
RF/Microwave Up/Down Converters are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for TGC4510-SM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2312-TGC4510-SMTR-ND
|
DigiKey | TGC4510-SM 18-26 GHZ UPCONVERTER Min Qty: 500 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$40.3750 | Buy Now |
|
DISTI #
772-TGC4510-SM
|
Mouser Electronics | Up-Down Converters 17.7-26.5GHz Atten. 30dB Typical RoHS: Compliant | 0 |
|
$40.3800 | Order Now |
Part Details for TGC4510-SM

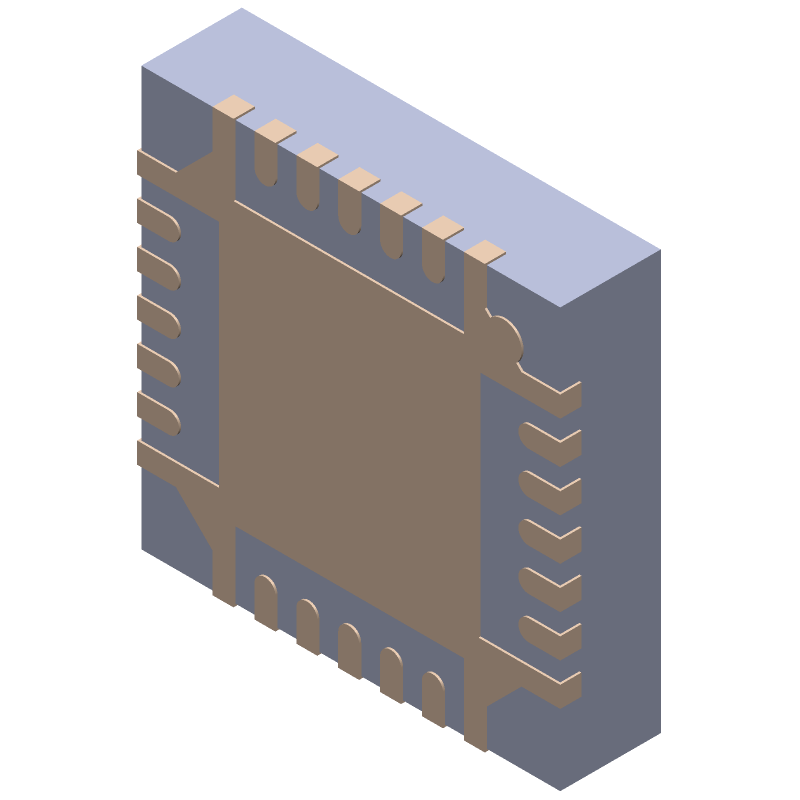

TGC4510-SM CAD Models
TGC4510-SM Part Data Attributes
|
|
TGC4510-SM
Qorvo
Buy Now
Datasheet
|
Compare Parts:
TGC4510-SM
Qorvo
Up Converter,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | QORVO INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Qorvo | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| IF Frequency-Max | 4000 MHz | |
| IF Frequency-Min | ||
| JESD-609 Code | e4 | |
| LO Tunable | YES | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| RF Output Frequency-Max | 26500 MHz | |
| RF Output Frequency-Min | 17700 MHz | |
| RF/Microwave Device Type | UP CONVERTER | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Up Conversion Gain-Min | 9.5 dB |
