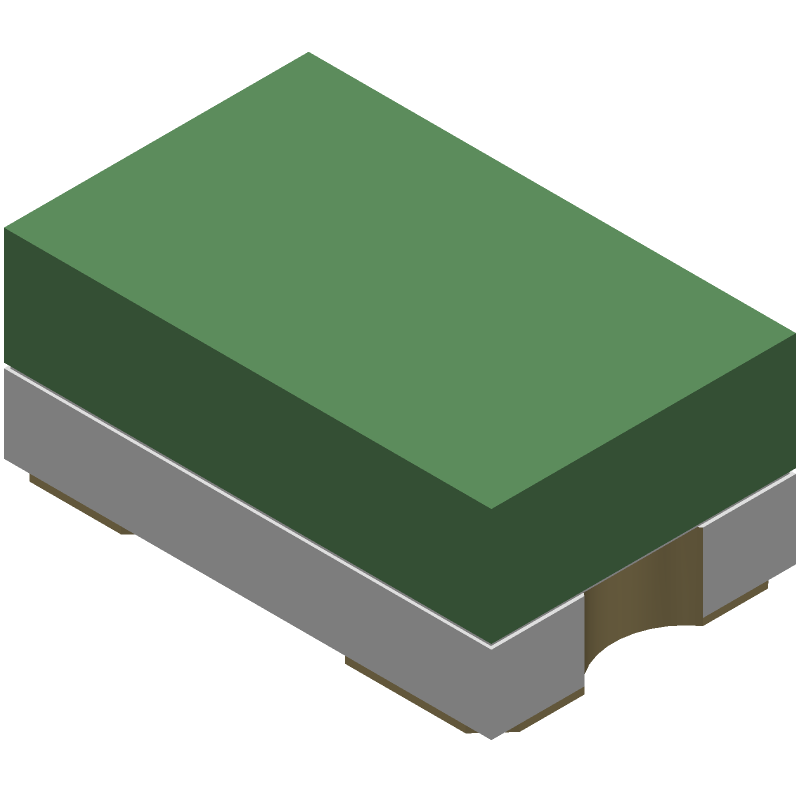

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TEMD6200FX01 by Vishay Intertechnologies
Results Overview of TEMD6200FX01 by Vishay Intertechnologies
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TEMD6200FX01 Information
TEMD6200FX01 by Vishay Intertechnologies is an Other Sensor/Transducer.
Other Sensors/Transducers are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for TEMD6200FX01
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64AH8997
|
Newark | Ambient Light Sensor, 0805, No. Of Pins:2Pins, Diode Case Style:0805, Wavelength Of Peak Sensitivity:540Nm, Angle Of Half Sensitivity ±:60°, Dark Current:100Pa, Operating Temperature Min:-40°C, Operating Temperature Max:100°C, Rohs Compliant: Yes |Vishay TEMD6200FX01 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4906 |
|
$0.4710 / $1.0000 | Buy Now |
|
DISTI #
28X3197
|
Newark | Diode, Photo, 540Nm, 60°, 0805, Full Reel, No. Of Pins:2Pins, Diode Case Style:0805, Wavelength Of Peak Sensitivity:540Nm, Angle Of Half Sensitivity ±:60°, Dark Current:100Pa, Operating Temperature Min:-40°C, Product Range:- Rohs Compliant: Yes |Vishay TEMD6200FX01 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3970 / $0.4510 | Buy Now |
|
DISTI #
TEMD6200FX01
|
Avnet Americas | PHOTO DIODE .PCB-SMD f.DAYLIGHT 550NM-e4 - Tape and Reel (Alt: TEMD6200FX01) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 39 Weeks, 0 Days Container: Reel | 0 |
|
$0.4013 | Buy Now |
|
DISTI #
782-TEMD6200FX01
|
Mouser Electronics | Ambient Light Sensors 16V 100mW 60Deg AEC-Q101 Qualified RoHS: Compliant | 7949 |
|
$0.4500 / $0.7800 | Buy Now |
|
DISTI #
V72:2272_09169447
|
Arrow Electronics | Light to Voltage Ambient Light Sensor 2-Pin SMD T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 39 Weeks Date Code: 2251 Container: Cut Strips | Americas - 1104 |
|
$0.4228 / $0.4909 | Buy Now |
|
DISTI #
65660513
|
Verical | Light to Voltage Ambient Light Sensor 2-Pin SMD T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 14 Package Multiple: 1 Date Code: 2251 | Americas - 1104 |
|
$0.4228 / $0.4809 | Buy Now |
|
DISTI #
TEMD6200FX01
|
TTI | Ambient Light Sensors 16V 100mW 60Deg AEC-Q101 Qualified RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.4020 / $0.4180 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
TEMD6200FX01
|
IBS Electronics | TEMD6200 SERIES 540 NM 60°, 40 NA (IRA ) AMBIENT LIGHT SENSOR 0805 Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.3120 / $0.3250 | Buy Now |
|
DISTI #
TEMD6200FX01
|
Avnet Asia | PHOTO DIODE .PCB-SMD f.DAYLIGHT 550NM-e4 (Alt: TEMD6200FX01) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 36 Weeks, 0 Days | 0 |
|
RFQ |
Part Details for TEMD6200FX01
TEMD6200FX01 CAD Models
TEMD6200FX01 Part Data Attributes
|
|
TEMD6200FX01
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
TEMD6200FX01
Vishay Intertechnologies
2 Pin, Plastic, SMD-2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SMD-2 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 39 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Body Breadth | 1.25 mm | |
| Body Height | 0.85 mm | |
| Body Length or Diameter | 2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC | |
| Package Shape/Style | RECTANGULAR | |
| Screening Level | AEC-Q101 | |
| Sensors/Transducers Type | AMBIENT LIGHT SENSOR | |
| Surface Mount | YES |
TEMD6200FX01 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
-
Handle the device by the body, avoiding touching the optical surface. Store the device in a clean, dry environment, away from direct sunlight and moisture. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
-
The recommended operating temperature range is -40°C to 100°C (-40°F to 212°F). Operating the device outside this range may affect its performance and lifespan.
-
Use a soft, dry cloth or a cotton swab with a mild soap solution to clean the optical surface. Avoid using harsh chemicals, abrasive materials, or ultrasonic cleaning, as they may damage the device.
-
The typical response time of the TEMD6200FX01 is around 10 ns. This value may vary depending on the specific application and operating conditions.
