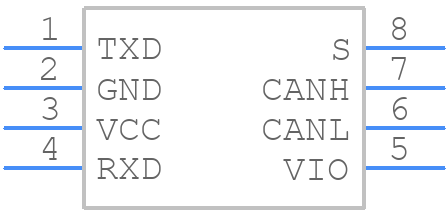

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TCAN1051GVDQ1 by Texas Instruments
Results Overview of TCAN1051GVDQ1 by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Financial Technology (Fintech)
Automotive
TCAN1051GVDQ1 Information
TCAN1051GVDQ1 by Texas Instruments is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for TCAN1051GVDQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-44166-5-ND
|
DigiKey | IC TRANSCEIVER HALF 1/1 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Tube |
1500 In Stock |
|
$0.9937 / $1.7200 | Buy Now |
|
DISTI #
595-TCAN1051GVDQ1
|
Mouser Electronics | CAN Interface IC Automotive Fault Pro tected CAN Transceiv A 595-TCAN1051GVDRQ1 RoHS: Compliant | 374 |
|
$0.9930 / $1.7200 | Buy Now |
|
|
Rochester Electronics | TCAN1051GV-Q1 Automotive Fault Protected CAN Transceiver With Flexible Data-Rate RoHS: Compliant Status: Active Min Qty: 1 | 5 |
|
$0.7591 / $1.2200 | Buy Now |
|
|
Win Source Electronics | IC TRANSCEIVER HALF 1/1 8SOIC / 1/1 Transceiver Half CANbus 8-SOIC | 21670 |
|
$1.1625 / $1.7436 | Buy Now |
Part Details for TCAN1051GVDQ1
TCAN1051GVDQ1 CAD Models
TCAN1051GVDQ1 Part Data Attributes
|
|
TCAN1051GVDQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TCAN1051GVDQ1
Texas Instruments
Automotive Fault Protected CAN Transceiver With Flexible Data-Rate 8-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOIC-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2016-03-31 | |
| Samacsys Manufacturer | Texas Instruments | |
| Data Rate | 5000 Mbps | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.905 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 180 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Telecom IC Type | INTERFACE CIRCUIT | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.895 mm |
Alternate Parts for TCAN1051GVDQ1
This table gives cross-reference parts and alternative options found for TCAN1051GVDQ1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TCAN1051GVDQ1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TCAN1051HGVDRQ1 | Texas Instruments | $0.7736 | Automotive Fault Protected CAN Transceiver With Flexible Data-Rate 8-SOIC -55 to 125 | TCAN1051GVDQ1 vs TCAN1051HGVDRQ1 |
| TCAN1042HGVDR | Texas Instruments | $0.8588 | Fault Protected CAN Transceiver With Flexible Data-Rate 8-SOIC -55 to 125 | TCAN1051GVDQ1 vs TCAN1042HGVDR |
| TCAN1051GVDRQ1 | Texas Instruments | Check for Price | Automotive Fault Protected CAN Transceiver With Flexible Data-Rate 8-SOIC -55 to 125 | TCAN1051GVDQ1 vs TCAN1051GVDRQ1 |
TCAN1051GVDQ1 Frequently Asked Questions (FAQ)
-
The maximum cable length supported by the TCAN1051GVDQ1 is 40 meters, assuming a 120-ohm twisted-pair cable with a maximum propagation delay of 5 ns/m.
-
To ensure EMC with the TCAN1051GVDQ1, follow proper PCB layout guidelines, use a common-mode choke, and add EMI filters to the CAN bus lines. Additionally, ensure that the device is properly shielded and grounded.
-
The recommended termination scheme for the TCAN1051GVDQ1 is a 120-ohm resistor at each end of the CAN bus, with a common-mode termination of 2 x 47 ohms to VCC or VSS.
-
The TCAN1051GVDQ1 has built-in error detection and fault handling mechanisms. Use the device's error counters and status registers to detect and respond to bus faults, and implement a fault-tolerant design to ensure system reliability.
-
The TCAN1051GVDQ1 supports data rates up to 1 Mbps, making it suitable for high-speed CAN applications.
