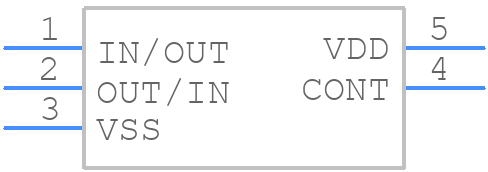

Part Symbol
-
Footprint
-

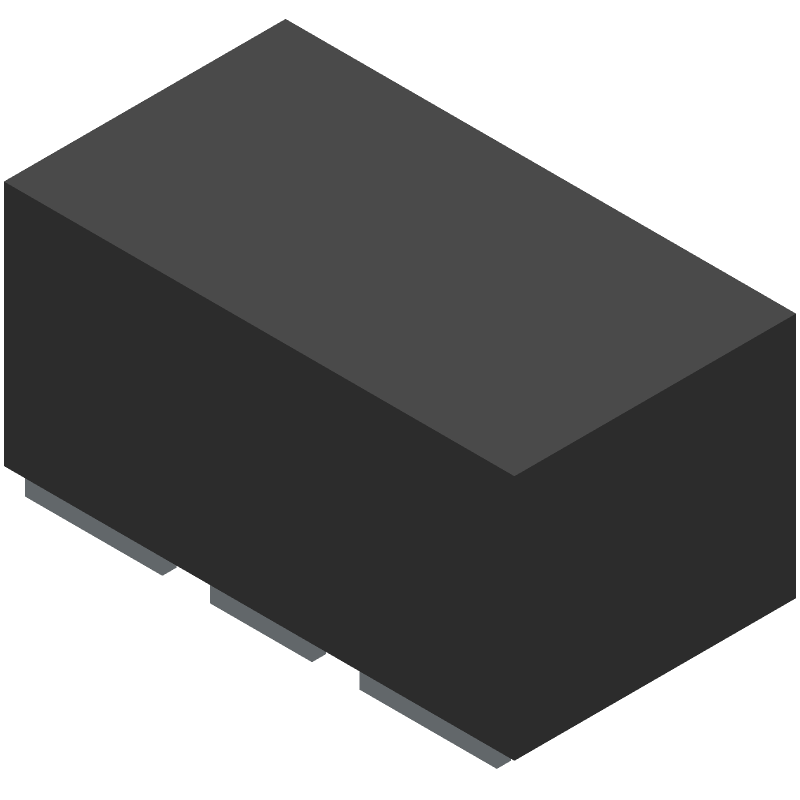

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TC4S66F,LF by Toshiba America Electronic Components
Results Overview of TC4S66F,LF by Toshiba America Electronic Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
TC4S66F,LF Information
TC4S66F,LF by Toshiba America Electronic Components is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TC4S66F,LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
264-TC4S66FLFCT-ND
|
DigiKey | IC SWITCH SPST-NO X 1 160OHM SMV Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
31984 In Stock |
|
$0.0636 / $0.2000 | Buy Now |
|
DISTI #
757-TC4S66FLF
|
Mouser Electronics | Analog Switch ICs L-MOS Standard Series RoHS: Compliant | 47079 |
|
$0.0670 / $0.2000 | Buy Now |
Part Details for TC4S66F,LF
TC4S66F,LF CAD Models
TC4S66F,LF Part Data Attributes
|
|
TC4S66F,LF
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TC4S66F,LF
Toshiba America Electronic Components
IC SWITCH SPST SMV5
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | SSOP-5 | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Toshiba | |
| Analog IC - Other Type | SPST | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | ||
| JESD-30 Code | R-PDSO-G5 | |
| Length | 2.9 mm | |
| Normal Position | NO | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| On-state Resistance-Max (Ron) | 950 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | SEPARATE OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | SOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Seated Height-Max | 1.4 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 80 ns | |
| Switch-on Time-Max | 120 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Width | 1.6 mm |
TC4S66F,LF Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the TC4S66F,LF is 2.7V to 5.5V, although the absolute maximum rating is 6.5V.
-
To minimize power consumption, ensure that the input voltage is reduced to 0V or a logic low level, and the output is in a high-impedance state.
-
The maximum allowable power dissipation for the TC4S66F,LF is 500mW, and it's essential to ensure the device is properly heat-sinked to prevent overheating.
-
While the TC4S66F,LF is suitable for high-frequency applications, it's essential to consider the device's propagation delay, rise and fall times, and ensure proper signal termination to minimize signal reflections and ringing.
-
To prevent electrostatic discharge (ESD) damage, handle the TC4S66F,LF by its package, avoid touching the pins, and use an ESD wrist strap or mat when handling the device.
