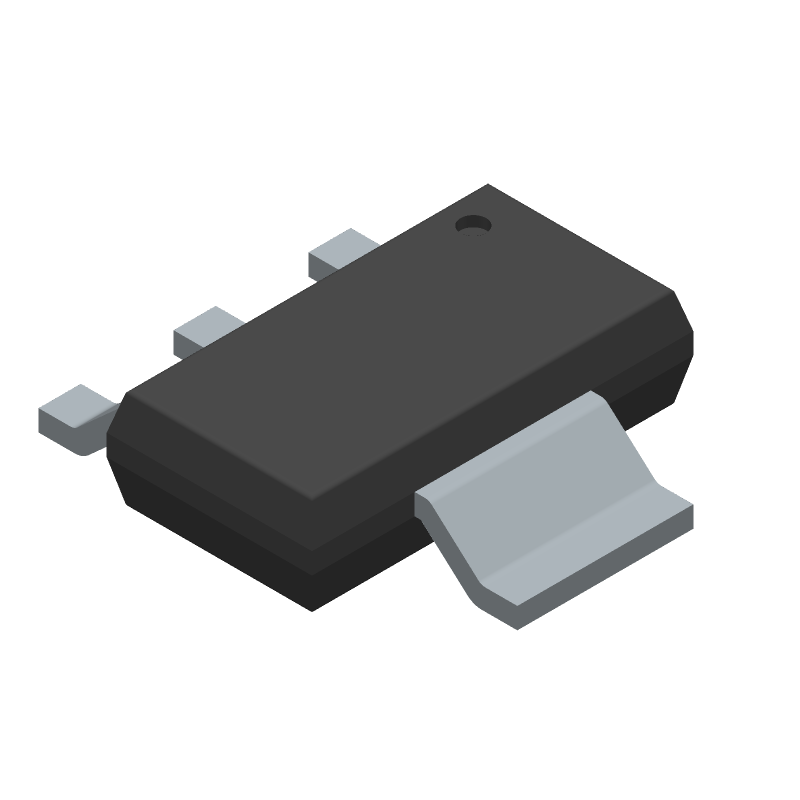

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TC2117-3.0VDBTR by Microchip Technology Inc
Results Overview of TC2117-3.0VDBTR by Microchip Technology Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TC2117-3.0VDBTR Information
TC2117-3.0VDBTR by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TC2117-3.0VDBTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
27C9091
|
Newark | Voltage Regulator Rohs Compliant: Yes |Microchip TC2117-3.0VDBTR RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.7950 | Buy Now |
|
DISTI #
150-TC2117-3.0VDBTRCT-ND
|
DigiKey | IC REG LINEAR 3V 800MA SOT-223-3 Min Qty: 1 Lead time: 52 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3496 In Stock |
|
$0.7500 / $0.9900 | Buy Now |
|
DISTI #
TC2117-3.0VDBTR
|
Avnet Americas | LDO Regulator Pos 3V 0.8A 4-Pin(3+Tab) SOT-223 T/R - Tape and Reel (Alt: TC2117-3.0VDBTR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 52 Weeks, 0 Days Container: Reel | 0 |
|
$0.6432 / $0.6566 | Buy Now |
|
DISTI #
579-TC2117-3.0VDBTR
|
Mouser Electronics | LDO Voltage Regulators 800mA Fixed Output RoHS: Compliant | 0 |
|
$0.7500 | Order Now |
|
DISTI #
TC2117-3.0VDBTR
|
Microchip Technology Inc | 800mA Fixed Low Dropout Positive Regulator, SOT-223, Projected EOL: 2034-05-16 COO: Taiwan, Thailand ECCN: EAR99 RoHS: Compliant Container: Reel |
11667 Alternates Available |
|
$0.7200 / $0.9900 | Buy Now |
|
DISTI #
70568264
|
RS | 800mA Fixed Low Dropout Positive Regulator Min Qty: 4000 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$1.1700 / $1.3800 | RFQ |
|
|
Onlinecomponents.com | RoHS: Compliant | 8000 Factory Stock |
|
$0.6700 / $1.4040 | Buy Now |
|
|
NAC | 800mA Fixed Low Dropout Positive Regulator - Package: 3 SOT-223 T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 | 0 |
|
$0.7900 / $0.9700 | Buy Now |
|
DISTI #
TC2117-3.0VDBTR
|
Avnet Silica | LDO Regulator Pos 3V 08A 4Pin3Tab SOT223 TR (Alt: TC2117-3.0VDBTR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 38 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Master Electronics | RoHS: Compliant | 8000 Factory Stock |
|
$0.6700 / $1.4040 | Buy Now |
Part Details for TC2117-3.0VDBTR
TC2117-3.0VDBTR CAD Models
TC2117-3.0VDBTR Part Data Attributes
|
|
TC2117-3.0VDBTR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
TC2117-3.0VDBTR
Microchip Technology Inc
3 V FIXED POSITIVE LDO REGULATOR, 1.3 V DROPOUT, PDSO3, PLASTIC, SOT-223, 4 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOT-223 | |
| Package Description | PLASTIC, SOT-223, 4 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 52 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 1.3 V | |
| Dropout Voltage1-Nom | 0.45 V | |
| Input Voltage Absolute-Max | 6.5 V | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 4 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Line Regulation-Max | 0.0105% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.8 A | |
| Output Voltage1-Max | 3.075 V | |
| Output Voltage1-Min | 2.925 V | |
| Output Voltage1-Nom | 3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOT-223 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.8 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.3 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Voltage Tolerance-Max | 2.5% | |
| Width | 3.5 mm |
