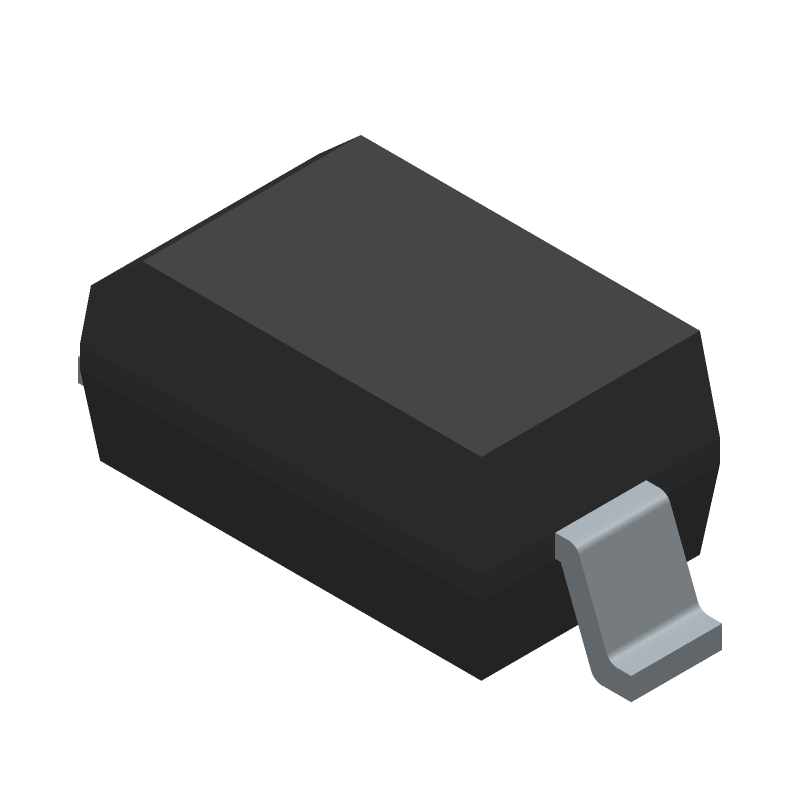

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SZMMSZ15T1G by onsemi
Results Overview of SZMMSZ15T1G by onsemi
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Renewable Energy
SZMMSZ15T1G Information
SZMMSZ15T1G by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SZMMSZ15T1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y7340
|
Newark | Zener Diode, 15V, Sod-123, Zener Voltage Vz Typ:15V, Power Dissipation Pd:500Mw, Diode Case Style:Sod-123, Zener Tolerance ±:5%, No. Of Pins:2Pins, Operating Temperature Max:150°C, Product Range:Szmms Series, Automotive Qualificationrohs Compliant: Yes |Onsemi SZMMSZ15T1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 330 |
|
$0.1650 / $0.3890 | Buy Now |
|
DISTI #
76T7671
|
Newark | Zen Sod123 Reg 0.5W 15V/ Reel |Onsemi SZMMSZ15T1G RoHS: Not Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0530 / $0.0750 | Buy Now |
|
DISTI #
SZMMSZ15T1GOSCT-ND
|
DigiKey | DIODE ZENER 15V 500MW SOD123 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
32466 In Stock |
|
$0.0499 / $0.3600 | Buy Now |
|
DISTI #
SZMMSZ15T1G
|
Avnet Americas | Zener Single Diode, 15 V, 500 mW, SOD-123, 2 Pins, 150 ?C - Tape and Reel (Alt: SZMMSZ15T1G) RoHS: Compliant Min Qty: 15000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 93000 Factory Stock |
|
$0.0459 / $0.0512 | Buy Now |
|
DISTI #
863-SZMMSZ15T1G
|
Mouser Electronics | Zener Diodes ZEN REG 0.5W 15V RoHS: Compliant | 9817 |
|
$0.0490 / $0.3600 | Buy Now |
|
DISTI #
V36:1790_07296902
|
Arrow Electronics | Diode Zener Single 15V 5% 500mW 2-Pin SOD-123 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2408 | Americas - 3000 |
|
$0.0478 / $0.0560 | Buy Now |
|
DISTI #
V72:2272_07296902
|
Arrow Electronics | Diode Zener Single 15V 5% 500mW 2-Pin SOD-123 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2401 Container: Cut Strips | Americas - 1577 |
|
$0.0566 / $0.2689 | Buy Now |
|
DISTI #
70467721
|
RS | SZMMSZ15T1G Zener Diode, 15V 5% 500 mW SMT 2-Pin SOD-123 Min Qty: 100 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1010 / $0.1190 | RFQ |
|
|
Onlinecomponents.com | SZMMSZ15T1G Zener Diode, 15V 5% 500 mW SMT 2-Pin SOD-123 | ON Semiconductor SZMMSZ15T1G RoHS: Compliant | 0 |
|
$0.0483 / $0.0547 | Buy Now |
|
DISTI #
88118369
|
Verical | Diode Zener Single 15V 5% 500mW 2-Pin SOD-123 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 93000 |
|
$0.0502 | Buy Now |
Part Details for SZMMSZ15T1G
SZMMSZ15T1G CAD Models
SZMMSZ15T1G Part Data Attributes
|
|
SZMMSZ15T1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
SZMMSZ15T1G
onsemi
500 mW; 5% Zener Diode Voltage Regulator 15 V, SOD-123 2 LEAD, 3000-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-123 2 LEAD | |
| Pin Count | 2 | |
| Manufacturer Package Code | 425-04 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 30 Ω | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Reference Standard | AEC-Q101 | |
| Reference Voltage-Nom | 15 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 5 mA |
SZMMSZ15T1G Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the SZMMSZ15T1G is -55°C to 150°C.
-
To ensure reliability, follow the recommended storage and handling procedures, and ensure that the device is operated within the recommended operating conditions. Additionally, consider using a radiation-hardened version of the device if it will be used in a high-reliability application.
-
The maximum allowable power dissipation for the SZMMSZ15T1G is 1.5 watts. Exceeding this limit can cause the device to overheat and fail.
-
To protect the SZMMSZ15T1G from ESD, handle the device in an ESD-controlled environment, use ESD-protective packaging and handling materials, and ensure that all personnel handling the device are grounded.
-
The recommended soldering temperature profile for the SZMMSZ15T1G is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
