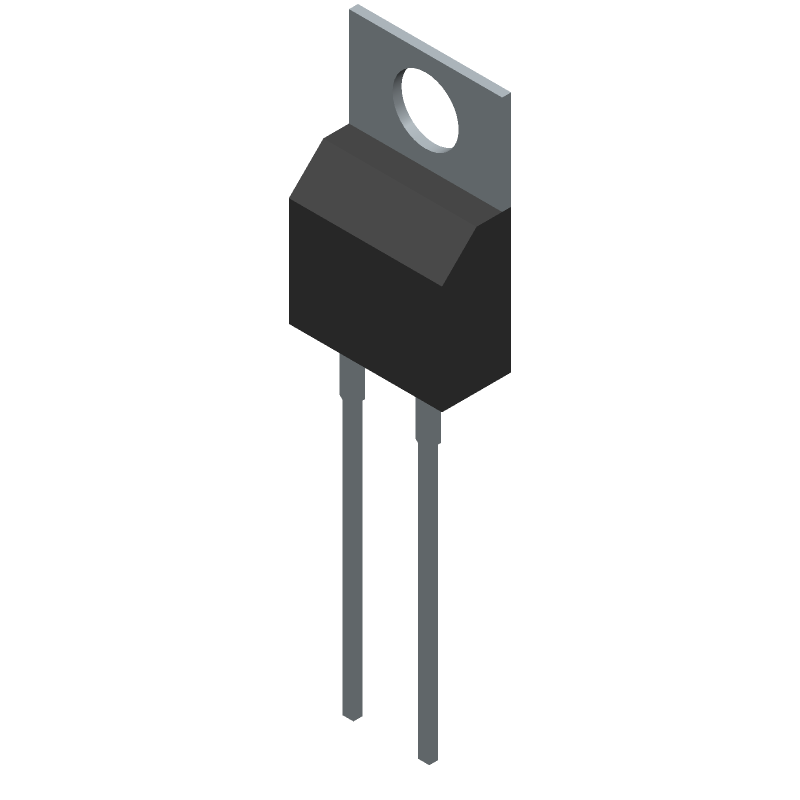

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STTH12R06DIRG by STMicroelectronics
Results Overview of STTH12R06DIRG by STMicroelectronics
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Space Technology
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Electronic Manufacturing
Communication and Networking
Robotics and Drones
STTH12R06DIRG Information
STTH12R06DIRG by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STTH12R06DIRG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-4403-5-ND
|
DigiKey | DIODE STD 600V 12A TO220AC INS Min Qty: 1 Lead time: 15 Weeks Container: Tube |
966 In Stock |
|
$0.6342 / $2.1200 | Buy Now |
|
DISTI #
STTH12R06DIRG
|
Avnet Americas | Fast / Ultrafast Diode, 600 V, 12 A, Single, 2.9 V, 25 ns, 100 A, TO-220AC - Rail/Tube (Alt: STTH12R06DIRG) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Tube | 0 |
|
$1.0824 / $1.1545 | Buy Now |
|
DISTI #
511-STTH12R06DI
|
Mouser Electronics | Rectifiers 12 Amp 600 Volt RoHS: Compliant | 1625 |
|
$0.6340 / $2.1000 | Buy Now |
|
DISTI #
E02:0323_00042927
|
Arrow Electronics | Diode Switching 600V 12A 2-Pin(2+Tab) TO-220AC Tube Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2510 | Europe - 55448 |
|
$0.4378 / $1.0887 | Buy Now |
|
|
STMicroelectronics | 600 V, 12 A Turbo 2 Ultrafast Diode COO: France RoHS: Compliant Min Qty: 1 | 1362 |
|
$0.7900 / $2.0600 | Buy Now |
|
|
Bristol Electronics | 10 |
|
RFQ | ||
|
|
Future Electronics | STTH12R06 Series Turbo 2 12 A 600 V Ultrafast Rectifier Flange Mount -TO-220AC Min Qty: 50 Package Multiple: 50 |
4900 null |
|
$0.4150 / $0.4600 | Buy Now |
|
DISTI #
STTH12R06DIRG
|
TME | Diode: rectifying, THT, 600V, 12A, tube, Ifsm: 100A, TO220ACIns, 25ns Min Qty: 1 | 280 |
|
$0.6500 / $1.6200 | Buy Now |
|
|
ComSIT USA | TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER Rectifier Diode, 1 Phase, 1 Element, 12A, 600V V(RRM), Silicon, TO-220AC ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
STTH12R06DIRG
|
IBS Electronics | STTH12R06 SERIES TURBO 2 12 A 600 V ULTRAFAST RECTIFIER FLANGE MOUNT -TO-220AC Min Qty: 1000 Package Multiple: 1 | 6000 |
|
$0.5460 / $0.5655 | Buy Now |
Part Details for STTH12R06DIRG
STTH12R06DIRG CAD Models
STTH12R06DIRG Part Data Attributes
|
|
STTH12R06DIRG
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STTH12R06DIRG
STMicroelectronics
600 V, 12 A Turbo 2 Ultrafast Diode
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-220AC | |
| Package Description | PLASTIC PACKAGE-2 | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | HIGH VOLTAGE ULTRA FAST RECOVERY | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.8 V | |
| JEDEC-95 Code | TO-220AC | |
| JESD-30 Code | R-PSFM-T2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 100 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Output Current-Max | 12 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Recovery Time-Max | 0.045 µs | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
