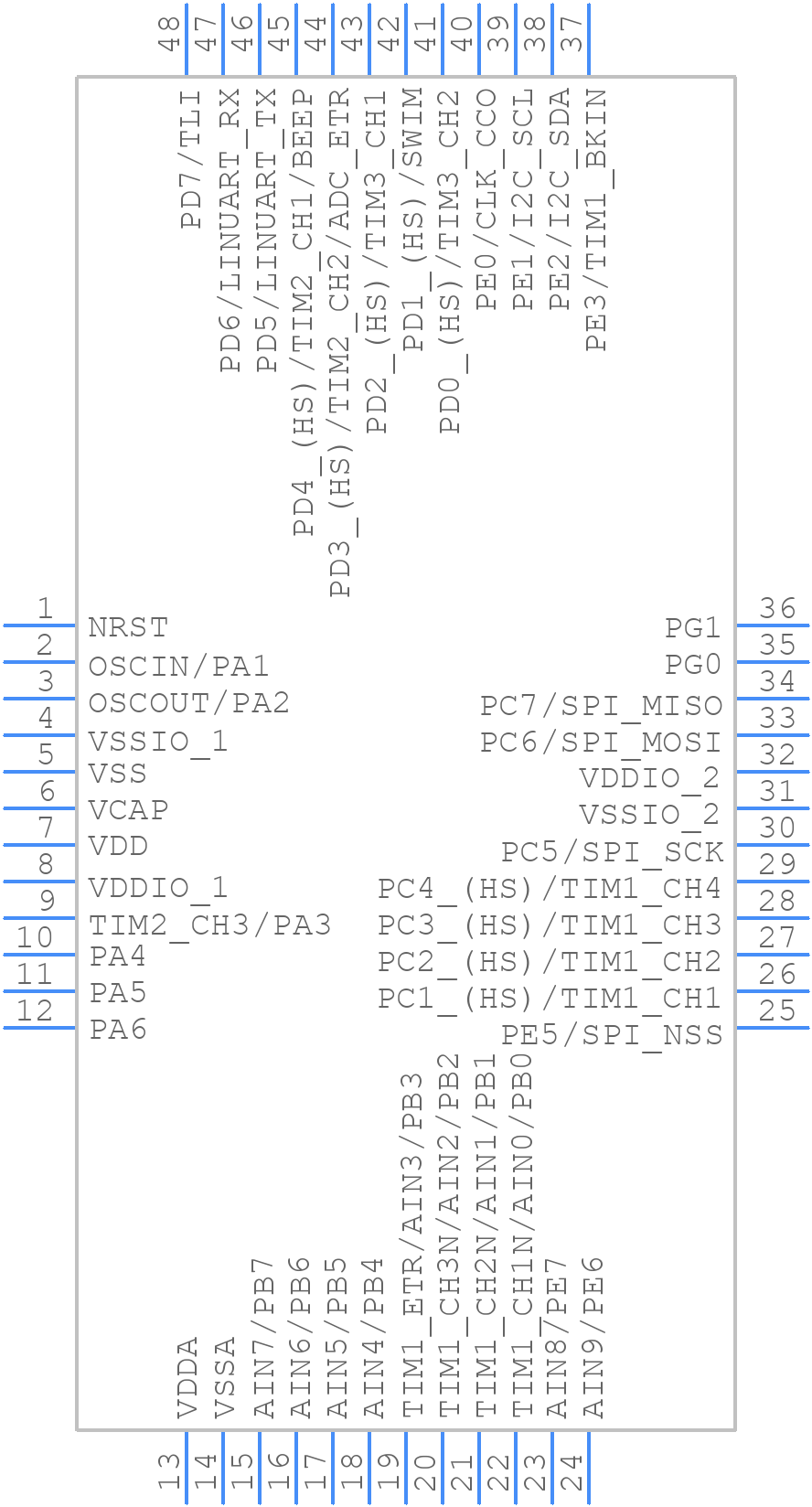

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM8AF6248TAY by STMicroelectronics
Results Overview of STM8AF6248TAY by STMicroelectronics
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
STM8AF6248TAY Information
STM8AF6248TAY by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM8AF6248TAY
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73T2383
|
Newark | Stm8Af-Auto |Stmicroelectronics STM8AF6248TAY RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.6300 / $2.0800 | Buy Now |
|
DISTI #
STM8AF6248TAY-ND
|
DigiKey | IC MCU 8BIT 16KB FLASH 48LQFP Min Qty: 1500 Lead time: 16 Weeks Container: Tray | Temporarily Out of Stock |
|
$1.7447 | Buy Now |
|
DISTI #
STM8AF6248TAY
|
Avnet Americas | MCU 8-bit STM8A STM8 CISC 16KB Flash 3.3V/5V 48-Pin LQFP Tray - Trays (Alt: STM8AF6248TAY) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 53 Weeks, 1 Days Container: Tray | 0 |
|
$1.5811 / $1.6137 | Buy Now |
|
|
STMicroelectronics | Automotive 8-bit MCU with 16 Kbytes Flash, LIN, 16 MHz CPU, integrated EEPROM RoHS: Compliant Min Qty: 1 | 0 |
|
$2.0600 / $3.2900 | Buy Now |
|
DISTI #
STM8AF6248TAY
|
Avnet Silica | MCU 8bit STM8A STM8 CISC 16KB Flash 33V5V 48Pin LQFP Tray (Alt: STM8AF6248TAY) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STM8AF6248TAY
|
EBV Elektronik | MCU 8bit STM8A STM8 CISC 16KB Flash 33V5V 48Pin LQFP Tray (Alt: STM8AF6248TAY) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for STM8AF6248TAY
STM8AF6248TAY CAD Models
STM8AF6248TAY Part Data Attributes
|
|
STM8AF6248TAY
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM8AF6248TAY
STMicroelectronics
Automotive 8-bit MCU with 16 Kbytes Flash, LIN, 16 MHz CPU, integrated EEPROM
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | QFP | |
| Package Description | 7 X 7 MM, ROHS COMPLIANT, LQFP-48 | |
| Pin Count | 48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 53 Weeks, 1 Day | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | NO | |
| CPU Family | STM8 | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e4 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 38 | |
| Number of Terminals | 48 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 2048 | |
| ROM (words) | 16384 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 16 MHz | |
| Supply Current-Max | 14 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for STM8AF6248TAY
This table gives cross-reference parts and alternative options found for STM8AF6248TAY. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM8AF6248TAY, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| STM8AF6268TAY | STMicroelectronics | $2.3250 | Automotive 8-bit MCU with 32 Kbytes Flash, LIN, 16 MHz CPU, integrated EEPROM | STM8AF6248TAY vs STM8AF6268TAY |
| STM8AF6168TAX | STMicroelectronics | Check for Price | 8-BIT, FLASH, 16MHz, MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 | STM8AF6248TAY vs STM8AF6168TAX |
STM8AF6248TAY Frequently Asked Questions (FAQ)
-
The maximum clock frequency that can be used with the internal oscillator is 16 MHz.
-
To configure the watchdog timer to reset the microcontroller, set the WDPG bit in the WWDG_CFR register to 0, and then set the W bit in the WWDG_CFR register to 1. This will enable the watchdog timer and configure it to reset the microcontroller if it times out.
-
The maximum current that can be sourced or sunk by the GPIO pins is 20 mA.
-
To use the UART in asynchronous mode, set the M bit in the USART_CR2 register to 0, and then configure the baud rate using the USART_BRR register. The UART will then operate in asynchronous mode, using the TX and RX pins to transmit and receive data.
-
The NPOR and NPER bits in the FLASH_CR2 register are used to configure the flash memory protection. NPOR (Number of Pages to be Written) specifies the number of pages to be written, and NPER (Number of Pages to be Erased) specifies the number of pages to be erased.
