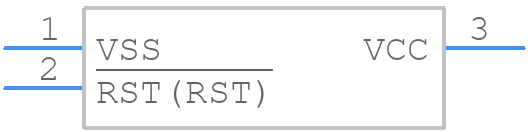

Part Symbol
-
Footprint
-

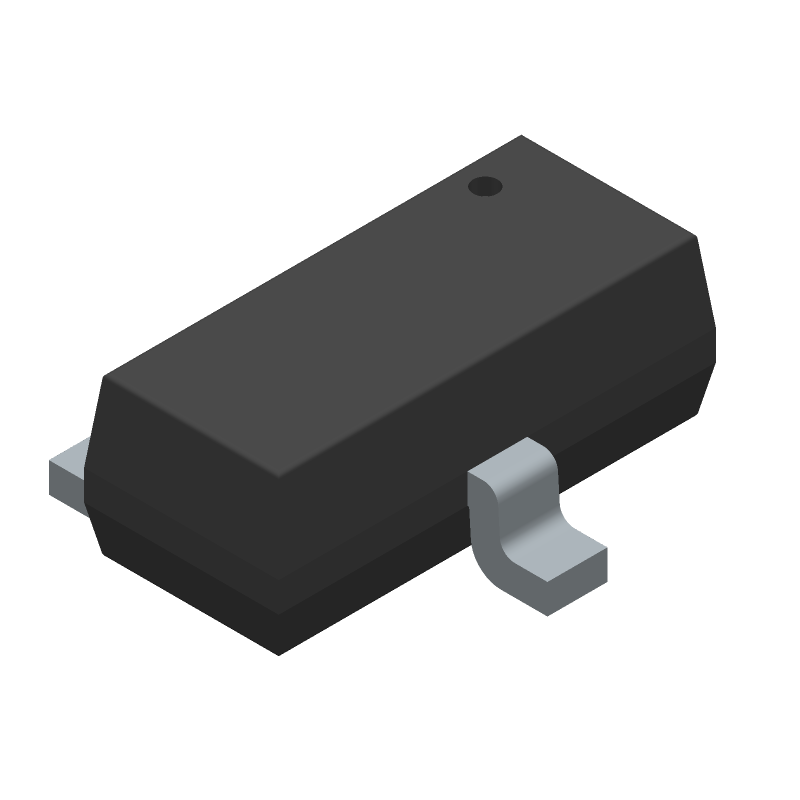

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM810LWX6F by STMicroelectronics
Results Overview of STM810LWX6F by STMicroelectronics
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Telecommunications
Automotive
STM810LWX6F Information
STM810LWX6F by STMicroelectronics is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for STM810LWX6F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97J2742
|
Newark | Mpu High Reset 4.63V, Sot-23-3, 810, Threshold Voltage:4.63V, No. Of Supervisors/Monitors:1Monitors, Supply Voltage Min:1.2V, Supply Voltage Max:5.5V, Reset Type:Active-High, Digital Ic Case:Sot-23, No. Of Pins:3Pins, Delay Rohs Compliant: Yes |Stmicroelectronics STM810LWX6F RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3465 |
|
$0.2620 | Buy Now |
|
DISTI #
497-3340-1-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL SOT23-3 Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4587 In Stock |
|
$0.2350 / $0.5700 | Buy Now |
|
DISTI #
STM810LWX6F
|
Avnet Americas | Processor Supervisor 4.63V 3V/3.3V/5V 3-Pin SOT-23 T/R - Tape and Reel (Alt: STM810LWX6F) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$0.1893 / $0.1931 | Buy Now |
|
DISTI #
511-STM810LWX6F
|
Mouser Electronics | Supervisory Circuits 4.63V Reset 140ms RoHS: Compliant | 0 |
|
$0.2290 / $0.2430 | Order Now |
|
DISTI #
70391164
|
RS | IC MPU RESET CIRC 4.63V SOT23 Min Qty: 50 Package Multiple: 1 Container: Bulk | 0 |
|
$0.3600 / $0.5000 | RFQ |
|
|
Bristol Electronics | 921 |
|
RFQ | ||
|
|
Quest Components | 736 |
|
$0.2952 / $0.9840 | Buy Now | |
|
DISTI #
STM810LWX6F
|
TME | IC: supervisor circuit, power on reset monitor (PoR), push-pull Min Qty: 1 | 0 |
|
$0.2150 / $0.5900 | RFQ |
|
|
ComSIT USA | RESET CIRCUIT Power Supply Support Circuit, Fixed, 1 Channel, +4.63V, PDSO3 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
STM810LWX6F
|
IBS Electronics | PROCESSOR SUPERVISOR 4.63V 1 ACTIVE HIGH/PUSH-PULL 3-PIN SOT-23 T/R Min Qty: 6000 Package Multiple: 1 | 0 |
|
$0.0963 / $0.1047 | Buy Now |
Part Details for STM810LWX6F
STM810LWX6F CAD Models
STM810LWX6F Part Data Attributes
|
|
STM810LWX6F
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM810LWX6F
STMicroelectronics
Reset circuit
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOT-23 | |
| Package Description | LEAD FREE, SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.92 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 mm | |
| Supply Current-Max (Isup) | 0.015 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +4.63V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.3 mm |
