Microcontrollers and Processors / Microprocessors / STM32MP151AAD3
Datasheets
STM32MP151AAD3 by: STMicroelectronics

MPU with Arm Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, TFT display

Part Details for STM32MP151AAD3 by STMicroelectronics

Results Overview of STM32MP151AAD3 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STM32MP151AAD3 Information

STM32MP151AAD3 by STMicroelectronics is a Microprocessor.
Microprocessors are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32MP151AAD3

Part # Distributor Description Stock Price Buy
DISTI # 02AH2556
Newark Mpu, 32Bit, 650Mhz, -40 To 125Deg C, Product Range:Stm32 Family Stm32Mp1 Series Microprocessors, Mpu Core Size:32Bit, Program Memory Size:128Kb, No. Of Pins:257Pins, Mpu Case Style:Tfbga, Supply Voltage Min:1.18V, Supply Voltage Rohs Compliant: Yes |Stmicroelectronics STM32MP151AAD3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 9
  • 1 $7.1500
$7.1500 Buy Now
DISTI # 497-STM32MP151AAD3-ND
DigiKey IC MPU STM32MP1 650MHZ 257TFBGA Min Qty: 1104 Lead time: 13 Weeks Container: Tray Temporarily Out of Stock
  • 1,104 $6.1575
$6.1575 Buy Now
DISTI # STM32MP151AAD3
Avnet Americas MPU STM32MP151 RISC 32-Bit 650MHz 5V 257-Pin TFBGA Tray - Trays (Alt: STM32MP151AAD3) RoHS: Not Compliant Min Qty: 1104 Package Multiple: 1104 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 1,104 $5.6363
  • 2,208 $5.4988
  • 4,416 $5.4325
  • 6,624 $5.3679
  • 8,832 $5.3047
$5.3047 / $5.6363 Buy Now
DISTI # 511-STM32MP151AAD3
Mouser Electronics Microprocessors - MPU MPU Arm Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, TFT display RoHS: Compliant 0
  • 1,104 $6.1500
$6.1500 Order Now
STMicroelectronics MPU with Arm Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, TFT display COO: Philippines RoHS: Compliant Min Qty: 1 0
  • 1 $10.7500
  • 10 $9.7100
  • 25 $9.1400
  • 100 $8.0100
  • 250 $7.6300
  • 500 $6.9100
$6.9100 / $10.7500 Buy Now
Future Electronics MPU with Arm Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, TFT display RoHS: Compliant pbFree: Yes Min Qty: 1104 Package Multiple: 1104 Lead time: 13 Weeks Container: Tray 15456
Tray
  • 1,104 $5.7200
$5.7200 Buy Now
Future Electronics MPU with Arm Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, TFT display Min Qty: 1104 Package Multiple: 1104 15456
null
  • 1,104 $5.7200
$5.7200 Buy Now
DISTI # STM32MP151AAD3
IBS Electronics MICROPROCESSOR ARM CORTEX-A7 RISC 650MHZ 32-BIT PROCESSOR 257-PIN TFBGA SURFACE MOUNT Min Qty: 1104 Package Multiple: 1 15456
  • 1,104 $7.4360
$7.4360 Buy Now
DISTI # STM32MP151AAD3
Avnet Silica MPU STM32MP151 RISC 32Bit 650MHz 5V 257Pin TFBGA Tray (Alt: STM32MP151AAD3) RoHS: Compliant Min Qty: 184 Package Multiple: 184 Lead time: 14 Weeks, 0 Days Silica - 552
Buy Now
DISTI # STM32MP151AAD3
EBV Elektronik MPU STM32MP151 RISC 32Bit 650MHz 5V 257Pin TFBGA Tray (Alt: STM32MP151AAD3) RoHS: Compliant Min Qty: 184 Package Multiple: 184 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
LCSC ARM-ASeries TFBGA-257 Microcontrollers (MCU/MPU/SOC) ROHS 10
  • 1 $19.6296
  • 30 $19.0171
$19.0171 / $19.6296 Buy Now

Part Details for STM32MP151AAD3

STM32MP151AAD3 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

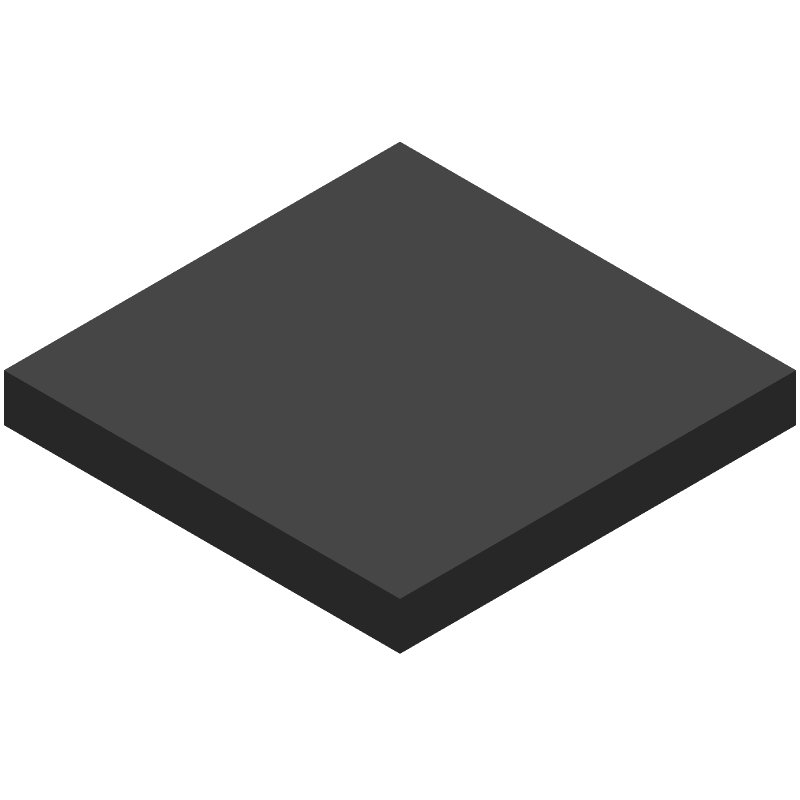

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32MP151AAD3 Part Data Attributes

Parametric Data
STM32MP151AAD3 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32MP151AAD3 STMicroelectronics MPU with Arm Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, TFT display
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description TFBGA-257
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Address Bus Width 26
Bit Size 32
Boundary Scan YES
Clock Frequency-Max 48 MHz
External Data Bus Width 16
Format FLOATING POINT
Integrated Cache YES
JESD-30 Code S-PBGA-B257
Length 10 mm
Low Power Mode YES
Number of DMA Channels 48
Number of Serial I/Os 8
Number of Terminals 257
On Chip Data RAM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TFBGA
Package Equivalence Code BGA257,19X19,25/20
Package Shape SQUARE
Package Style GRID ARRAY, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
RAM (words) 724992
Seated Height-Max 1.2 mm
Speed 650 MHz
Supply Current-Max 940 mA
Supply Voltage-Max 1.25 V
Supply Voltage-Min 1.18 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Technology CMOS
Terminal Form BALL
Terminal Pitch 0.65 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 10 mm
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC

STM32MP151AAD3 Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the STM32MP151AAD3 is 650 MHz.

  • The STM32MP151AAD3 has 512 KB of flash memory.

  • The STM32MP151AAD3 has 128 KB of RAM.

  • Yes, the STM32MP151AAD3 supports USB OTG (On-The-Go) functionality.

  • The power consumption of the STM32MP151AAD3 varies depending on the operating mode, but it can be as low as 20 μA/MHz in low-power mode.
