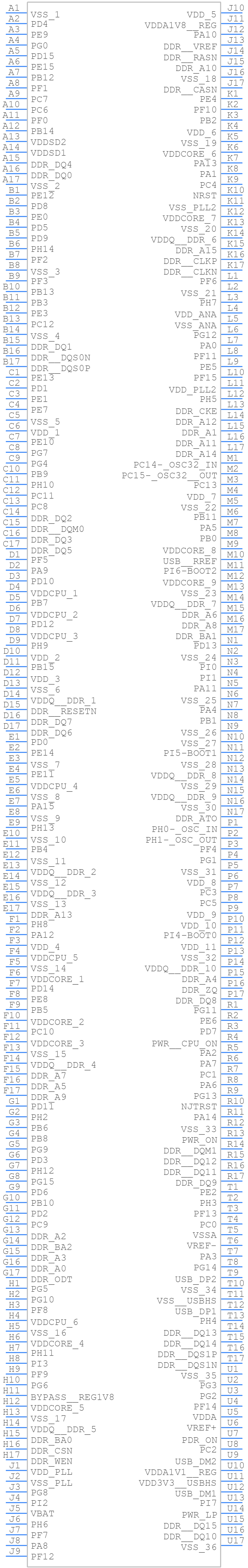

Part Symbol
-

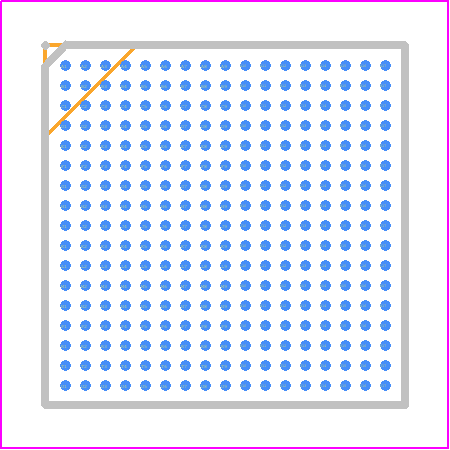

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM32MP135DAG7 by STMicroelectronics
Results Overview of STM32MP135DAG7 by STMicroelectronics
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STM32MP135DAG7 Information
STM32MP135DAG7 by STMicroelectronics is a Microprocessor.
Microprocessors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32MP135DAG7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68AK9976
|
Newark | Mpu, 32Bit, 1Ghz, -40 To 105Deg C, Product Range:Stm32 Family Stm32Mp1 Series Microprocessors, No. Of Cpu Cores:1Cores, Program Memory Size:-, Ic Case/Package:Tfbga, No. Of Pins:289Pins, Supply Voltage Min:1.71V, Qualification:- Rohs Compliant: Yes |Stmicroelectronics STM32MP135DAG7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 242 |
|
$4.8400 / $6.1500 | Buy Now |
|
DISTI #
497-STM32MP135DAG7-ND
|
DigiKey | 32-BIT ARM CORTEX-A7 900MHZ MPU Min Qty: 1 Lead time: 13 Weeks Container: Tray |
150 In Stock |
|
$4.8461 / $7.1200 | Buy Now |
|
DISTI #
68AK9976
|
Avnet Americas | Microprocessor, 1 GHz, STM32 Family, 1 Core, -40 ?C to 105 ?C, TFBGA-289 - Bulk (Alt: 68AK9976) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Bulk | 150 Partner Stock |
|
$4.8400 / $7.1200 | Buy Now |
|
DISTI #
STM32MP135DAG7
|
Avnet Americas | Microprocessor, 1 GHz, STM32 Family, 1 Core, -40 ?C to 105 ?C, TFBGA-289 - Trays (Alt: STM32MP135DAG7) RoHS: Not Compliant Min Qty: 1560 Package Multiple: 1560 Lead time: 13 Weeks, 0 Days Container: Tray | 0 |
|
$4.5613 / $4.8464 | Buy Now |
|
DISTI #
511-STM32MP135DAG7
|
Mouser Electronics | Microprocessors - MPU 32-bit Arm Cortex-A7 900MHz MPU for Industrial and Graphics RoHS: Compliant | 146 |
|
$4.8400 / $6.7800 | Buy Now |
|
DISTI #
V99:2348_26871284
|
Arrow Electronics | MPU STM32 RISC 32bit 1GHz 289-Pin TFBGA Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2249 | Americas - 150 |
|
$4.9210 | Buy Now |
|
|
STMicroelectronics | 32-bit Arm Cortex-A7 1GHz MPU for Graphics COO: Taiwan RoHS: Compliant Min Qty: 1 | 146 |
|
$4.7400 / $6.6400 | Buy Now |
|
DISTI #
84951008
|
Verical | MPU STM32 RISC 32bit 1GHz 289-Pin TFBGA Tray RoHS: Compliant Min Qty: 7 Package Multiple: 1 | Americas - 200 |
|
$3.7800 / $4.7200 | Buy Now |
|
DISTI #
STM32MP135DAG7
|
IBS Electronics | STM32MP135DAG7 by ST MICROELECTRONICS is a microprocessor with Arm Cortex-A7 core, 650 MHz frequency, supports Linux OS, features 3D GPU, and offers advanced security features for IoT applications. Min Qty: 3 Package Multiple: 1 | 0 |
|
$5.7590 / $6.2400 | Buy Now |
|
DISTI #
STM32MP135DAG7
|
Avnet Silica | Microprocessor 1 GHz STM32 Family 1 Core 40 C to 105 C TFBGA289 (Alt: STM32MP135DAG7) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for STM32MP135DAG7
STM32MP135DAG7 CAD Models
STM32MP135DAG7 Part Data Attributes
|
|
STM32MP135DAG7
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32MP135DAG7
STMicroelectronics
RISC Microprocessor, 32-Bit, 1000MHz, CMOS, PBGA289
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 16 Weeks, 3 Days | |
| Samacsys Manufacturer | STMicroelectronics | |
| Address Bus Width | 26 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 48 MHz | |
| External Data Bus Width | 16 | |
| Format | FIXED POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PBGA-B289 | |
| Length | 9 mm | |
| Low Power Mode | YES | |
| Number of DMA Channels | 56 | |
| Number of Serial I/Os | 10 | |
| Number of Terminals | 289 | |
| On Chip Data RAM Width | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFBGA | |
| Package Equivalence Code | BGA289,17X17,20 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH | |
| RAM (words) | 172032 | |
| Seated Height-Max | 1.2 mm | |
| Speed | 1000 MHz | |
| Supply Current-Max | 268 mA | |
| Supply Voltage-Max | 1.38 V | |
| Supply Voltage-Min | 1.32 V | |
| Supply Voltage-Nom | 1.35 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Width | 9 mm | |
| uPs/uCs/Peripheral ICs Type | MICROPROCESSOR, RISC |
