Microcontrollers and Processors / Microcontrollers / STM32F103T4U6A
Datasheets
STM32F103T4U6A by: STMicroelectronics

Mainstream Performance line, Arm Cortex-M3 MCU with 16 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN

Part Details for STM32F103T4U6A by STMicroelectronics

Results Overview of STM32F103T4U6A by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Robotics and Drones

STM32F103T4U6A Information

STM32F103T4U6A by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F103T4U6A

Part # Distributor Description Stock Price Buy
DISTI # 497-8318-ND
DigiKey IC MCU 32BIT 16KB FLASH 36VFQFPN Min Qty: 1 Lead time: 13 Weeks Container: Tray 2250
In Stock
  • 1 $4.4100
  • 10 $3.3620
  • 25 $3.1004
  • 100 $2.8133
  • 490 $2.6642
$2.6642 / $4.4100 Buy Now
DISTI # STM32F103T4U6A
Avnet Americas MCU 32-Bit STM32 ARM Cortex M3 RISC 16KB Flash 2.5V/3.3V 36-Pin VFQFPN EP Tray - Trays (Alt: STM32F103T4U6A) RoHS: Compliant Min Qty: 2940 Package Multiple: 2940 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 2,940 $2.6645
  • 5,880 $2.5995
  • 11,760 $2.5802
  • 17,640 $2.5669
  • 23,520 $2.5536
$2.5536 / $2.6645 Buy Now
DISTI # 511-STM32F103T4U6A
Mouser Electronics ARM Microcontrollers - MCU 32BIT Cortex M3 L/D PERF LINE 16KB RoHS: Compliant 3730
  • 1 $4.1500
  • 10 $3.1700
  • 25 $2.9200
  • 100 $2.6700
  • 2,940 $2.6600
$2.6600 / $4.1500 Buy Now
STMicroelectronics Mainstream Performance line, Arm Cortex-M3 MCU with 16 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN RoHS: Compliant Min Qty: 1 3725
  • 1 $4.0700
  • 10 $3.1100
  • 25 $2.8600
  • 100 $2.6200
  • 250 $2.6200
  • 500 $2.6200
$2.6200 / $4.0700 Buy Now
DISTI # STM32F103T4U6A
TME IC: STM32 ARM microcontroller, 72MHz, VFQFPN36, 2÷3.6VDC, STM32F1 Min Qty: 1 0
  • 1 $3.4400
  • 10 $3.1500
  • 25 $2.8600
  • 100 $2.5800
$2.5800 / $3.4400 RFQ
DISTI # STM32F103T4U6A
Avnet Silica MCU 32Bit STM32 ARM Cortex M3 RISC 16KB Flash 25V33V 36Pin VFQFPN EP Tray (Alt: STM32F103T4U6A) RoHS: Compliant Min Qty: 490 Package Multiple: 490 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F103T4U6A
EBV Elektronik MCU 32Bit STM32 ARM Cortex M3 RISC 16KB Flash 25V33V 36Pin VFQFPN EP Tray (Alt: STM32F103T4U6A) RoHS: Compliant Min Qty: 490 Package Multiple: 490 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Peripheral ICs 2981
RFQ

Part Details for STM32F103T4U6A

STM32F103T4U6A CAD Models

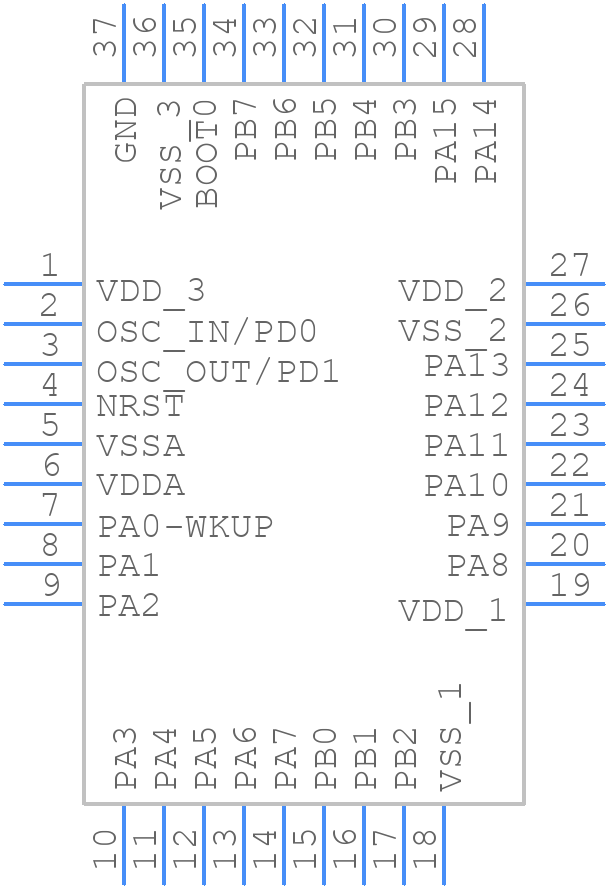

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F103T4U6A Part Data Attributes

Parametric Data
STM32F103T4U6A STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F103T4U6A STMicroelectronics Mainstream Performance line, Arm Cortex-M3 MCU with 16 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFN
Pin Count 36
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan NO
CPU Family CORTEX-M3
Clock Frequency-Max 16 MHz
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQCC-N36
JESD-609 Code e3
Length 6 mm
Moisture Sensitivity Level 3
Number of I/O Lines 26
Number of Terminals 36
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC36,.25SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 6144
ROM (words) 16384
ROM Programmability FLASH
Speed 72 MHz
Supply Current-Max 45 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 6 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F103T4U6A

This table gives cross-reference parts and alternative options found for STM32F103T4U6A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F103T4U6A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F103T4U6AXXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CMOS,LLCC,36PIN,PLASTIC STM32F103T4U6A vs STM32F103T4U6AXXXTR
STM32F103T4U7AXXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, QCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-36 STM32F103T4U6A vs STM32F103T4U7AXXX
STM32F103T4U7 STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,LLCC,36PIN,PLASTIC STM32F103T4U6A vs STM32F103T4U7
STM32F103T4U7ATR STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, QCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-36 STM32F103T4U6A vs STM32F103T4U7ATR
STM32F103T4U6 STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,LLCC,36PIN,PLASTIC STM32F103T4U6A vs STM32F103T4U6
STM32F103T4U7TR STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, QCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-36 STM32F103T4U6A vs STM32F103T4U7TR
Part Number Manufacturer Composite Price Description Compare
STM32F103T4U6AXXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, QCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-36 STM32F103T4U6A vs STM32F103T4U6AXXX
STM32F103T4U7XXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, QCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-36 STM32F103T4U6A vs STM32F103T4U7XXX
STM32F103T4U6TR STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, QCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-36 STM32F103T4U6A vs STM32F103T4U6TR
STM32F103T6U6XXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, QCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-36 STM32F103T4U6A vs STM32F103T6U6XXX
STM32F103T6U6AXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-36 STM32F103T4U6A vs STM32F103T6U6AXX
STM32F103T6U7A STMicroelectronics Check for Price Mainstream Performance line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN STM32F103T4U6A vs STM32F103T6U7A
STM32F103T6U7TR STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, QCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-36 STM32F103T4U6A vs STM32F103T6U7TR
STM32F103T6U6TR STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, QCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-36 STM32F103T4U6A vs STM32F103T6U6TR
STM32F103T6U7AXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-36 STM32F103T4U6A vs STM32F103T6U7AXX
STM32F103T6U6AXXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, QCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-36 STM32F103T4U6A vs STM32F103T6U6AXXX

STM32F103T4U6A Related Parts

STM32F103T4U6A Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F103T4U6A is 72 MHz.

  • The STM32F103T4U6A has 512 KB of flash memory.

  • Yes, the STM32F103T4U6A can operate with a power supply voltage range of 2.0V to 3.6V, making it compatible with 3.3V systems.

  • Yes, the STM32F103T4U6A has a built-in USB 2.0 full-speed device interface.

  • The STM32F103T4U6A has three UARTs (USART1, USART2, and USART3).
