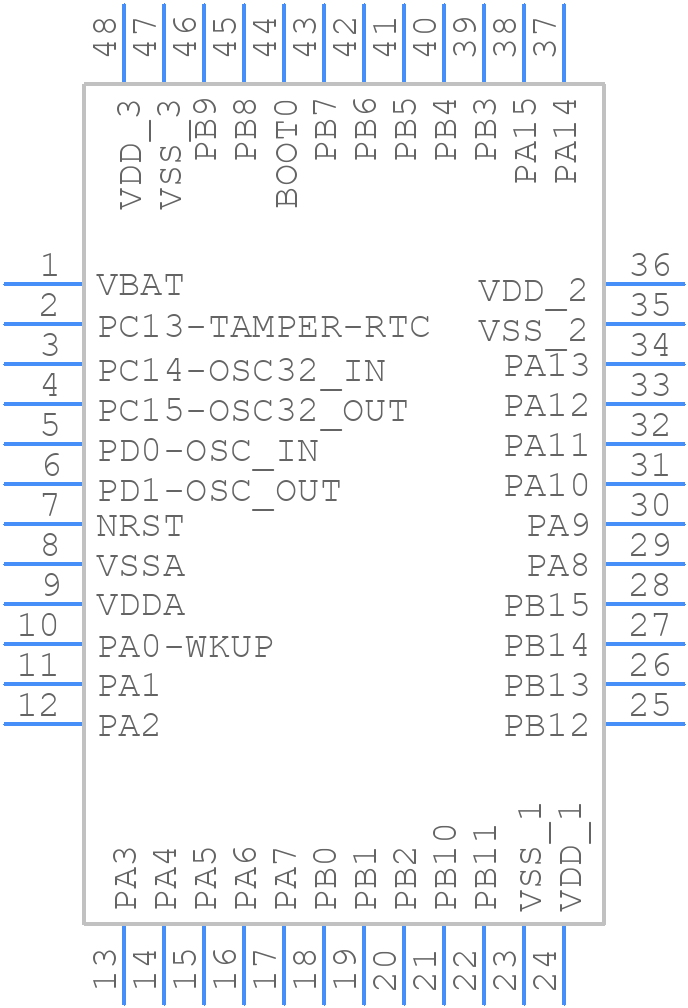

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM32F101C6T6A by STMicroelectronics
Results Overview of STM32F101C6T6A by STMicroelectronics
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
STM32F101C6T6A Information
STM32F101C6T6A by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32F101C6T6A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86T4680
|
Newark | Mcu, 32 Bit, 32Kb, 36Mhz, Lqfp-48, Product Range:Stm32 Family Stm32F1 Series Microcontrollers, Device Core:Arm Cortex-M3, Data Bus Width:32 Bit, Operating Frequency Max:36Mhz, Program Memory Size:32Kb, No. Of Pins:48Pins Rohs Compliant: Yes |Stmicroelectronics STM32F101C6T6A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 13009 |
|
$3.3500 | Buy Now |
|
DISTI #
497-11505-ND
|
DigiKey | IC MCU 32BIT 32KB FLASH 48LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray | Temporarily Out of Stock |
|
$2.6467 / $4.7900 | Buy Now |
|
DISTI #
STM32F101C6T6A
|
Avnet Americas | ARM MCU, STM32 Family STM32F1 Series Microcontrollers, ARM Cortex-M3, 32 bit, 36 MHz, 32 KB - Trays (Alt: STM32F101C6T6A) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 13 Weeks, 0 Days Container: Tray | 0 |
|
$2.2948 / $2.4383 | Buy Now |
|
DISTI #
511-STM32F101C6T6A
|
Mouser Electronics | ARM Microcontrollers - MCU 32BIT Cortex M3 L/D Access Line RoHS: Compliant | 1378 |
|
$2.5300 / $2.5400 | Buy Now |
|
DISTI #
V36:1790_06561148
|
Arrow Electronics | MCU 32-bit ARM Cortex M3 RISC 32KB Flash 2.5V/3.3V 48-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2332 | Americas - 97 |
|
$2.2830 | Buy Now |
|
|
STMicroelectronics | Mainstream Access line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 36 MHz CPU RoHS: Compliant Min Qty: 1 | 1378 |
|
$2.4900 | Buy Now |
|
DISTI #
30593085
|
Verical | MCU 32-bit ARM Cortex M3 RISC 32KB Flash 2.5V/3.3V 48-Pin LQFP Tray RoHS: Compliant Min Qty: 13 Package Multiple: 1 | Americas - 1500 |
|
$2.5400 / $2.6500 | Buy Now |
|
DISTI #
86929284
|
Verical | MCU 32-bit ARM Cortex M3 RISC 32KB Flash 2.5V/3.3V 48-Pin LQFP Tray RoHS: Compliant Min Qty: 15 Package Multiple: 1 | Americas - 465 |
|
$4.5495 / $5.2756 | Buy Now |
|
DISTI #
80326622
|
Verical | MCU 32-bit ARM Cortex M3 RISC 32KB Flash 2.5V/3.3V 48-Pin LQFP Tray RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2407 | Americas - 459 |
|
$2.5683 | Buy Now |
|
|
Bristol Electronics | 70 |
|
RFQ |
Part Details for STM32F101C6T6A
STM32F101C6T6A CAD Models
STM32F101C6T6A Part Data Attributes
|
|
STM32F101C6T6A
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32F101C6T6A
STMicroelectronics
Mainstream Access line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 36 MHz CPU
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | QFP | |
| Pin Count | 48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| CPU Family | CORTEX-M3 | |
| Clock Frequency-Max | 25 MHz | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e4 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 37 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 8192 | |
| ROM (words) | 32768 | |
| ROM Programmability | FLASH | |
| Speed | 36 MHz | |
| Supply Current-Max | 26 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for STM32F101C6T6A
This table gives cross-reference parts and alternative options found for STM32F101C6T6A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F101C6T6A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| STM32F101C6T6XXXTR | STMicroelectronics | Check for Price | IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,QFP,48PIN,PLASTIC | STM32F101C6T6A vs STM32F101C6T6XXXTR |
| STM32F101C6T6TR | STMicroelectronics | Check for Price | 32-BIT, FLASH, 36MHz, RISC MICROCONTROLLER, QCC48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 | STM32F101C6T6A vs STM32F101C6T6TR |
STM32F101C6T6A Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM32F101C6T6A is 36 MHz, but it can be overclocked to 48 MHz with some limitations.
-
The clock settings for the STM32F101C6T6A can be configured using the Clock Control Register (RCC_CR) and the Flash Control Register (FLASH_ACR). You need to enable the HSE (High-Speed External) clock, configure the PLL (Phase-Locked Loop) multiplier, and select the clock source.
-
The BOOT0 and BOOT1 pins are used to select the boot mode of the microcontroller. BOOT0 is used to select between the internal flash and the system memory, while BOOT1 is used to select between the internal flash and the external memory.
-
To use the USART peripheral on the STM32F101C6T6A, you need to enable the USART clock, configure the USART registers (USART_CR1, USART_CR2, and USART_BRR), and set the baud rate and data bits. You can then use the USART_SendData() and USART_ReceiveData() functions to send and receive data.
-
The NVIC is used to handle interrupts generated by the peripherals. It allows you to prioritize interrupts, enable and disable interrupts, and handle interrupt requests.
