Microcontrollers and Processors / Microcontrollers / STM32F100C8T7BTR
Datasheets
STM32F100C8T7BTR by: STMicroelectronics

Mainstream Value line, Arm Cortex-M3 MCU with 64 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions

Part Details for STM32F100C8T7BTR by STMicroelectronics

Results Overview of STM32F100C8T7BTR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STM32F100C8T7BTR Information

STM32F100C8T7BTR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F100C8T7BTR

Part # Distributor Description Stock Price Buy
DISTI # 61AC2111
Newark Stm32 Mainstream Mcus Rohs Compliant: Yes |Stmicroelectronics STM32F100C8T7BTR RoHS: Compliant Min Qty: 2400 Package Multiple: 1 Date Code: 0 Container: Reel 14400
  • 1 $2.4300
$2.4300 Buy Now
DISTI # 497-18986-1-ND
DigiKey IC MCU 32BIT 64KB FLASH 48LQFP Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $4.7700
  • 10 $3.6290
  • 25 $3.3432
  • 100 $3.0294
  • 250 $2.8798
  • 500 $2.7896
  • 1,000 $2.7154
  • 2,400 $2.6401
$2.6401 / $4.7700 Buy Now
DISTI # STM32F100C8T7BTR
Avnet Americas MCU 32-bit STM32F ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 48-Pin LQFP T/R - Tape and Reel (Alt: STM32F100C8T7BTR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 13 Weeks, 0 Days Container: Reel 14400
  • 2,400 $2.4291
  • 4,800 $2.3699
  • 9,600 $2.3571
  • 14,400 $2.3449
  • 19,200 $2.3328
$2.3328 / $2.4291 Buy Now
DISTI # 511-STM32F100C8T7BTR
Mouser Electronics ARM Microcontrollers - MCU Value Line ARM 32Bit 64kB Flash 48-Pin RoHS: Compliant 1322
  • 1 $4.7800
  • 10 $3.3600
  • 100 $3.0400
  • 250 $2.8900
  • 500 $2.8000
  • 1,000 $2.7300
  • 2,400 $2.4300
$2.4300 / $4.7800 Buy Now
STMicroelectronics Mainstream Value line, Arm Cortex-M3 MCU with 64 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions RoHS: Compliant Min Qty: 1 1322
  • 1 $4.7700
  • 10 $3.3500
  • 100 $3.0300
  • 250 $2.8800
  • 500 $2.7900
$2.7900 / $4.7700 Buy Now
DISTI # STM32F100C8T7BTR
Avnet Silica MCU 32bit STM32F ARM Cortex M3 RISC 64KB Flash 25V33V 48Pin LQFP TR (Alt: STM32F100C8T7BTR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F100C8T7BTR
EBV Elektronik MCU 32bit STM32F ARM Cortex M3 RISC 64KB Flash 25V33V 48Pin LQFP TR (Alt: STM32F100C8T7BTR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now

Part Details for STM32F100C8T7BTR

STM32F100C8T7BTR CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

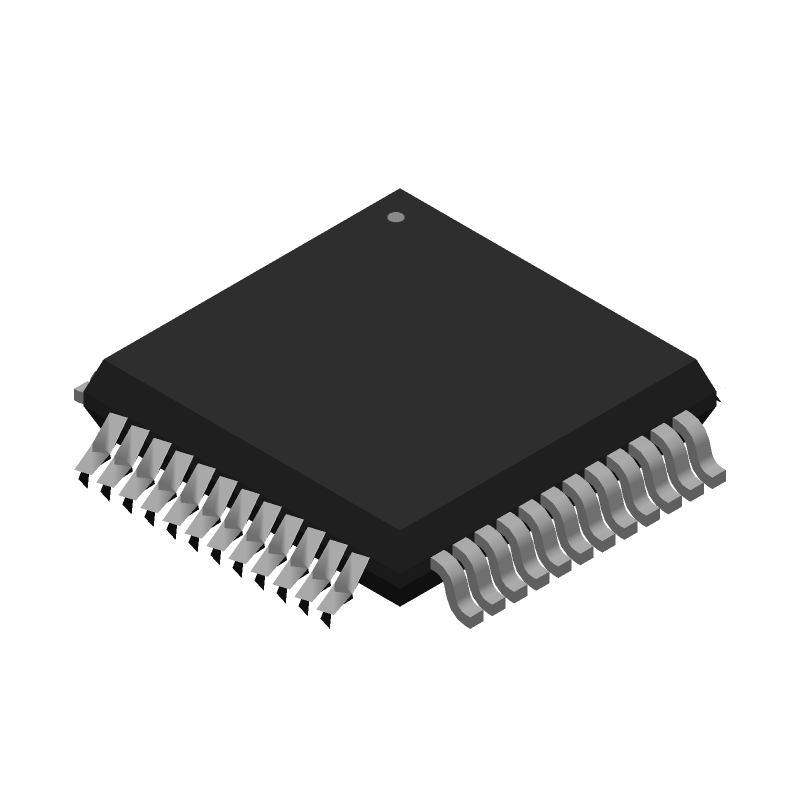

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F100C8T7BTR Part Data Attributes

Parametric Data
STM32F100C8T7BTR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F100C8T7BTR STMicroelectronics Mainstream Value line, Arm Cortex-M3 MCU with 64 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFP
Package Description LQFP-48
Pin Count 48
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan NO
CPU Family CORTEX-M3
Clock Frequency-Max 24 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQFP-G48
Length 7 mm
Number of I/O Lines 37
Number of Terminals 48
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP48,.35SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
RAM (bytes) 8192
ROM (words) 65536
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 24 MHz
Supply Current-Max 15.7 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F100C8T7BTR

This table gives cross-reference parts and alternative options found for STM32F100C8T7BTR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F100C8T7BTR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F100C8T6BTR STMicroelectronics $4.1573 Mainstream Value line, Arm Cortex-M3 MCU with 64 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C8T7BTR vs STM32F100C8T6BTR
STM32F100C8T7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F100C8T7BTR vs STM32F100C8T7BXXX
STM32F100C8T6BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F100C8T7BTR vs STM32F100C8T6BXXX

STM32F100C8T7BTR Related Parts

STM32F100C8T7BTR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F100C8T7BTR is 24 MHz.

  • The STM32F100C8T7BTR has 64 KB of flash memory.

  • Yes, the STM32F100C8T7BTR can operate in the industrial temperature range of -40°C to 85°C.

  • No, the STM32F100C8T7BTR does not have a built-in USB interface. However, it has a USB-friendly interface that can be used with an external USB transceiver.

  • The STM32F100C8T7BTR has three UARTs (USART1, USART2, and USART3).
