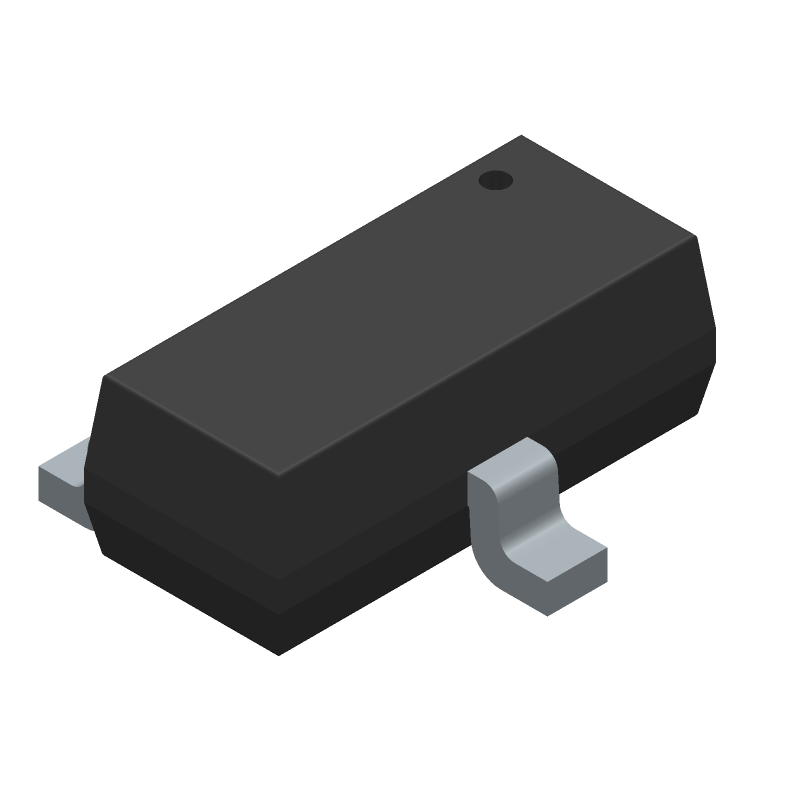

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM1061N22WX6F by STMicroelectronics
Results Overview of STM1061N22WX6F by STMicroelectronics
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
Healthcare
STM1061N22WX6F Information
STM1061N22WX6F by STMicroelectronics is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for STM1061N22WX6F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2806995
|
Farnell | VOLTAGE DETECTOR, 6V, SOT-23-3 RoHS: Compliant Min Qty: 1 Lead time: 18 Weeks, 1 Days Container: Each | 8920 |
|
$0.3700 / $0.8643 | Buy Now |
|
DISTI #
497-4951-1-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL SOT23-3 Min Qty: 1 Lead time: 24 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
8570 In Stock |
|
$0.3417 / $0.7900 | Buy Now |
|
DISTI #
STM1061N22WX6F
|
Avnet Americas | Processor Supervisor 2.2V 3-Pin SOT-23 T/R - Tape and Reel (Alt: STM1061N22WX6F) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$0.1882 / $0.1921 | Buy Now |
|
DISTI #
511-STM1061N22WX6F
|
Mouser Electronics | Supervisory Circuits 2.2V Active Lo Open Drain Voltage Detect RoHS: Compliant | 8635 |
|
$0.3490 / $0.7900 | Buy Now |
|
|
STMicroelectronics | Low Power Voltage Detector COO: China RoHS: Compliant Min Qty: 1 | 8635 |
|
$0.3900 / $0.7700 | Buy Now |
|
|
Bristol Electronics | Min Qty: 7 | 200 |
|
$0.2250 / $0.7500 | Buy Now |
|
|
Bristol Electronics | 157 |
|
RFQ | ||
|
|
Quest Components | POWER SUPPLY SUPPORT CIRCUIT, FIXED, 1 CHANNEL, +2.2V, PDSO3 | 6192 |
|
$2.8350 / $5.6700 | Buy Now |
|
|
Quest Components | POWER SUPPLY SUPPORT CIRCUIT, FIXED, 1 CHANNEL, +2.2V, PDSO3 | 197 |
|
$0.7688 / $1.5375 | Buy Now |
|
|
Quest Components | POWER SUPPLY SUPPORT CIRCUIT, FIXED, 1 CHANNEL, +2.2V, PDSO3 | 160 |
|
$0.3000 / $1.0000 | Buy Now |
Part Details for STM1061N22WX6F
STM1061N22WX6F CAD Models
STM1061N22WX6F Part Data Attributes
|
|
STM1061N22WX6F
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM1061N22WX6F
STMicroelectronics
Low Power Voltage Detector
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOT-23 | |
| Package Description | LEAD FREE, SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE DETECTOR | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.92 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 mm | |
| Supply Current-Max (Isup) | 0.0036 mA | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 0.7 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.96 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +2.2V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.3 mm |
Alternate Parts for STM1061N22WX6F
This table gives cross-reference parts and alternative options found for STM1061N22WX6F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM1061N22WX6F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| STM1061N23WX6F | STMicroelectronics | $0.2443 | Low Power Voltage Detector | STM1061N22WX6F vs STM1061N23WX6F |
| STM1061N28WX6F | STMicroelectronics | $0.2689 | Low Power Voltage Detector | STM1061N22WX6F vs STM1061N28WX6F |
| STM1061N27WX6F | STMicroelectronics | $0.3914 | Low Power Voltage Detector | STM1061N22WX6F vs STM1061N27WX6F |
| STM1061N26WX6F | STMicroelectronics | $0.4438 | Low Power Voltage Detector | STM1061N22WX6F vs STM1061N26WX6F |
| STM1061N25WX6F | STMicroelectronics | $0.5387 | Low Power Voltage Detector | STM1061N22WX6F vs STM1061N25WX6F |
| STM1061N17WX6F | STMicroelectronics | $0.6956 | Low Power Voltage Detector | STM1061N22WX6F vs STM1061N17WX6F |
| STM1061N44WX6F | STMicroelectronics | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, LEAD FREE, SC-70, SOT-23, 3 PIN | STM1061N22WX6F vs STM1061N44WX6F |
| STM1061N40WX6F | STMicroelectronics | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, LEAD FREE, SC-70, SOT-23, 3 PIN | STM1061N22WX6F vs STM1061N40WX6F |
| STM1061N39WX6F | STMicroelectronics | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, LEAD FREE, SC-70, SOT-23, 3 PIN | STM1061N22WX6F vs STM1061N39WX6F |
| STM1061N50WX6F | STMicroelectronics | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, LEAD FREE, SC-70, SOT-23, 3 PIN | STM1061N22WX6F vs STM1061N50WX6F |
STM1061N22WX6F Frequently Asked Questions (FAQ)
-
STMicroelectronics provides a recommended PCB layout in their application note AN5046, which includes guidelines for thermal pad connection, thermal vias, and copper pouring to ensure optimal thermal performance.
-
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal interface materials, such as thermal pads or thermal grease, to improve heat transfer between the device and the heat sink.
-
The STM1061N22WX6F has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. For latch-up prevention, ensure that the device is operated within the recommended operating conditions, and consider using a latch-up protection circuit if necessary.
-
To optimize the device for low power consumption, consider using the low-power modes, such as sleep mode or shutdown mode, when the device is not in use. Additionally, optimize the system design to minimize power consumption, such as using low-power peripherals and optimizing the clock frequency.
-
STMicroelectronics provides recommended soldering and assembly guidelines in their application note AN5156, which includes information on soldering temperatures, reflow profiles, and assembly techniques to ensure reliable assembly and minimize defects.
