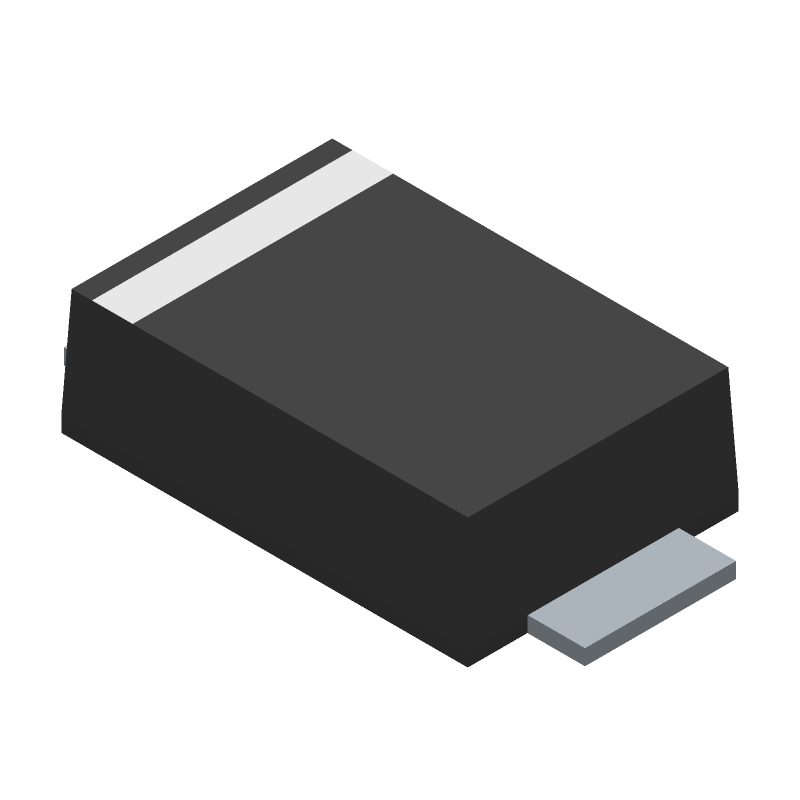

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SS14FL-TP by Micro Commercial Components
Results Overview of SS14FL-TP by Micro Commercial Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
SS14FL-TP Information
SS14FL-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SS14FL-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SS14FL-TPMSCT-ND
|
DigiKey | DIODE SCHOTTKY 40V 1A DO221AC Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
10000 In Stock |
|
$0.0350 / $0.2900 | Buy Now |
|
DISTI #
833-SS14FL-TP
|
Mouser Electronics | Schottky Diodes & Rectifiers 1A,40V - Schottky, RoHS: Compliant | 9685 |
|
$0.0380 / $0.2600 | Buy Now |
|
DISTI #
SS14FL-TP
|
IBS Electronics | RECTIFIER DIODE SCHOTTKY 1 PHASE 1 ELEMENT 1A 40V V(RRM) SILICON DO-221AC Min Qty: 20000 Package Multiple: 1 | 0 |
|
$0.0429 / $0.0455 | Buy Now |
|
DISTI #
SMC-SS14FL-TP
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 225 |
|
RFQ | |
|
|
Vyrian | Diodes | 12024 |
|
RFQ |
Part Details for SS14FL-TP
SS14FL-TP CAD Models
SS14FL-TP Part Data Attributes
|
|
SS14FL-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
SS14FL-TP
Micro Commercial Components
Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-221AC, SMA-FL, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | MCC | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.5 V | |
| JEDEC-95 Code | DO-221AC | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Reverse Current-Max | 100 µA | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for SS14FL-TP
This table gives cross-reference parts and alternative options found for SS14FL-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SS14FL-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SS14FL-TP-HF | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-221AC, SMA-FL, 2 PIN | SS14FL-TP vs SS14FL-TP-HF |
| SS14F_R2_00001 | PanJit Semiconductor | Check for Price | 1A, 40V, SILICON, SIGNAL DIODE, SMAF, 2 PIN | SS14FL-TP vs SS14F_R2_00001 |
| SS14F_R1_00001 | PanJit Semiconductor | Check for Price | 1A, 40V, SILICON, SIGNAL DIODE, SMAF, 2 PIN | SS14FL-TP vs SS14F_R1_00001 |
SS14FL-TP Frequently Asked Questions (FAQ)
-
The recommended storage temperature for SS14FL-TP is -40°C to 100°C.
-
Yes, the SS14FL-TP is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The maximum forward current rating for the SS14FL-TP is 1A.
-
Yes, the SS14FL-TP can be used in high-temperature applications up to 150°C, but the power rating should be derated accordingly.
-
Yes, the SS14FL-TP is suitable for automotive applications, but it's essential to ensure that the device meets the specific requirements of the automotive industry, such as AEC-Q101 qualification.
