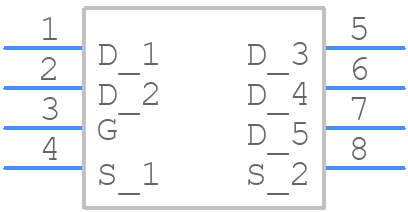

Part Symbol
-
Footprint
-

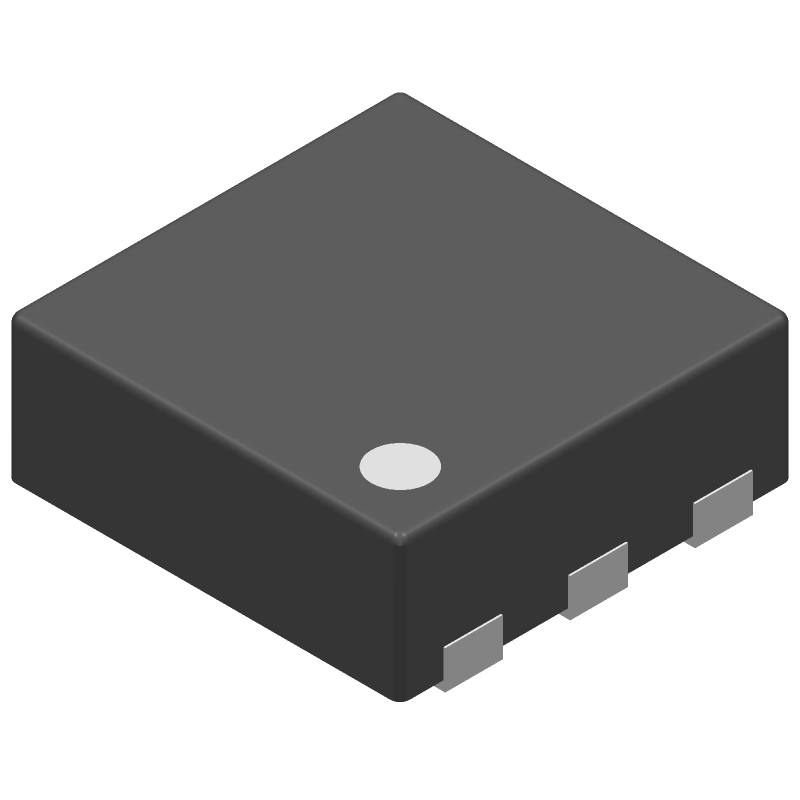

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SQA410EJ-T1_GE3 by Vishay Intertechnologies
Results Overview of SQA410EJ-T1_GE3 by Vishay Intertechnologies
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
Energy and Power Systems
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Automotive
Robotics and Drones
SQA410EJ-T1_GE3 Information
SQA410EJ-T1_GE3 by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for SQA410EJ-T1_GE3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SQA410EJ-T1_GE3
|
Avnet Americas | N-CHANNEL 20-V (D-S) 175C MOSFET - Tape and Reel (Alt: SQA410EJ-T1_GE3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.1898 / $0.2016 | Buy Now |
|
DISTI #
781-SQA410EJ-T1_GE3
|
Mouser Electronics | MOSFETs 20V 7.8A 13.6W AEC-Q101 Qualified RoHS: Compliant | 199183 |
|
$0.2190 / $0.7700 | Buy Now |
|
DISTI #
SQA410EJ-T1_GE3
|
EBV Elektronik | NCHANNEL 20V DS 175C MOSFET (Alt: SQA410EJ-T1_GE3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for SQA410EJ-T1_GE3
SQA410EJ-T1_GE3 CAD Models
SQA410EJ-T1_GE3 Part Data Attributes
|
|
SQA410EJ-T1_GE3
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SQA410EJ-T1_GE3
Vishay Intertechnologies
Power Field-Effect Transistor, 7.8A I(D), 20V, 0.028ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SC-70, 6 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SC-70, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Avalanche Energy Rating (Eas) | 5 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 20 V | |
| Drain Current-Max (ID) | 7.8 A | |
| Drain-source On Resistance-Max | 0.028 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | S-PDSO-N3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | N-CHANNEL | |
| Pulsed Drain Current-Max (IDM) | 24 A | |
| Surface Mount | YES | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Element Material | SILICON |
SQA410EJ-T1_GE3 Frequently Asked Questions (FAQ)
-
The recommended storage condition for SQA410EJ-T1_GE3 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
-
Yes, SQA410EJ-T1_GE3 is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
Yes, SQA410EJ-T1_GE3 is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
-
The maximum operating temperature range for SQA410EJ-T1_GE3 is -40°C to 125°C, with a derating of capacitance above 85°C.
-
Yes, SQA410EJ-T1_GE3 is suitable for high-voltage applications up to 250 VDC, making it suitable for power supply and filtering applications.
