SPM10040T-4R7M-HZR Information
SPM10040T-4R7M-HZR by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for SPM10040T-4R7M-HZR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70AK3128
|
Newark | Power Inductor, 4.7Uh, Shielded, 8.7A Rohs Compliant: Yes |Tdk SPM10040T-4R7M-HZR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 90 |
|
$1.0100 / $1.8900 | Buy Now |
|
DISTI #
67AK9951
|
Newark | -/Tape And Reel Rohs Compliant: Yes |Tdk SPM10040T-4R7M-HZR RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
445-SPM10040T-4R7M-HZRCT-ND
|
DigiKey | FIXED IND 4.7UH 9.1A 0.0159OHM Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
455 In Stock |
|
$0.9500 / $1.9300 | Buy Now |
|
DISTI #
SPM10040T-4R7M-HZR
|
Avnet Americas | - Tape and Reel (Alt: SPM10040T-4R7M-HZR) Min Qty: 500 Package Multiple: 500 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.8740 / $0.9652 | Buy Now |
|
DISTI #
810-SPM100404R7MHZR
|
Mouser Electronics | Power Inductors - SMD 4.7uH 20% 9.1A 15.9Mohm RoHS: Compliant | 186 |
|
$0.9500 / $1.9300 | Buy Now |
|
DISTI #
SPM10040T-4R7M-HZR
|
Avnet Abacus | (Alt: SPM10040T-4R7M-HZR) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 33 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for SPM10040T-4R7M-HZR

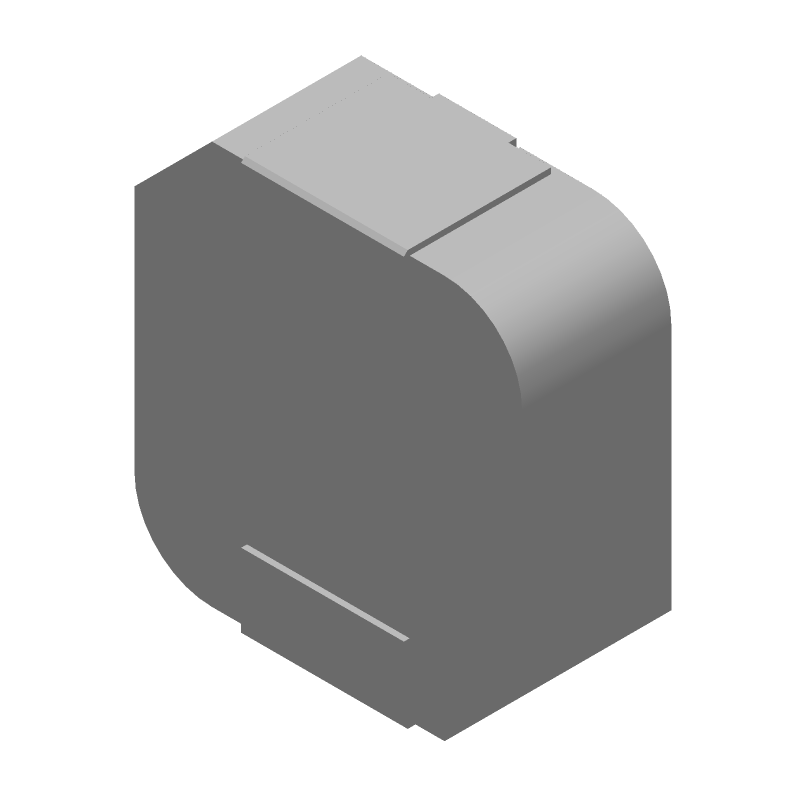

SPM10040T-4R7M-HZR CAD Models
SPM10040T-4R7M-HZR Part Data Attributes
|
|
SPM10040T-4R7M-HZR
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
SPM10040T-4R7M-HZR
TDK Corporation
General Purpose Inductor, 4.7uH, 20%, 1 Element, Metal-Core, SMD, 4239, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 4239 | |
| Construction | Rectangular | |
| Core Material | Metal | |
| DC Resistance | 0.0159 Ω | |
| Inductance-Nom (L) | 4.7 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 4 mm | |
| Package Length | 10.7 mm | |
| Package Style | SMT | |
| Package Width | 10 mm | |
| Packing Method | TR, Embossed Plastic, 13 Inch | |
| Rated Current-Max | 9.1 A | |
| Reference Standard | AEC-Q200 | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
