SPFJ300.X Information
SPFJ300.X by Littelfuse Inc is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Price & Stock for SPFJ300.X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
90T9242
|
Newark | 300A 1000Vdc Photovoltaic Class J Fuse/ Box |Littelfuse SPFJ300.X RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$209.6000 / $228.8000 | Buy Now |
|
DISTI #
5666-SPFJ300.X-ND
|
DigiKey | FUSE CARTRIDGE 300A 600VAC/1KVDC Min Qty: 1 Lead time: 7 Weeks Container: Bulk |
1 In Stock |
|
$248.8320 / $325.8000 | Buy Now |
|
DISTI #
576-SPFJ300.X
|
Mouser Electronics | Specialty Fuses 1000V 300A SOLAR FUSE RoHS: Compliant | 9 |
|
$239.1400 / $325.8000 | Buy Now |
|
DISTI #
75569151
|
RS | 300A 1000VDC PHOTOVOLTAIC CLASS J FUSE Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$445.7800 / $484.5400 | RFQ |
|
|
Onlinecomponents.com | 300A 1000VDC Photovoltaic Class J Fuse RoHS: Compliant | 0 |
|
$266.9000 / $282.9600 | Buy Now |
|
DISTI #
SPFJ300.X
|
IBS Electronics | FUSE CLASS J 300A 600V BOLT TAP 50.8 X 85.7MM MELAMINE UL/VDE/CUL Min Qty: 1 Package Multiple: 1 | 0 |
|
$517.1790 / $543.0360 | Buy Now |
|
DISTI #
000000000007223771
|
Sager | 300A 1000VDC PHOTOVOLTAIC CLASS J FUSE Min Qty: 1 | 0 |
|
$238.8100 / $271.1900 | Buy Now |
Part Details for SPFJ300.X

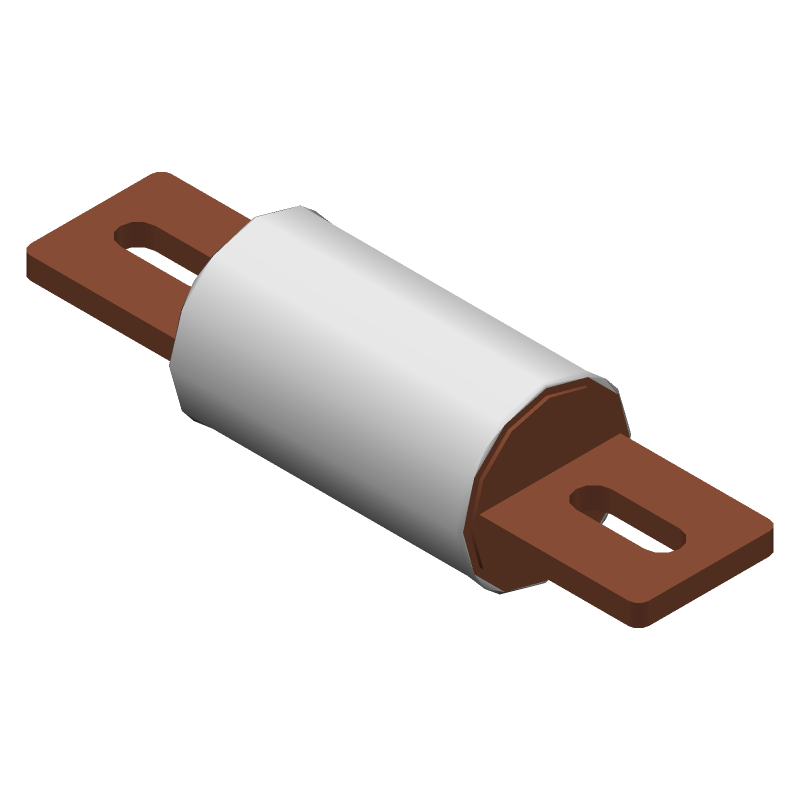

SPFJ300.X CAD Models
SPFJ300.X Part Data Attributes
|
|
SPFJ300.X
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
SPFJ300.X
Littelfuse Inc
Electric Fuse, Fast Blow, 300A, 200000A (IR), J, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | RATED BREAKING CAPACITY AT 1000 VDC: 20000 A | |
| Blow Characteristic | FAST | |
| Body Height | 85.7 mm | |
| Body Length or Diameter | 50.8 mm | |
| Circuit Protection Type | ELECTRIC FUSE | |
| Joule Integral-Nom | 143000 J | |
| Mounting Feature | INLINE/HOLDER | |
| Packing Method | BULK | |
| Rated Breaking Capacity | 200000 A | |
| Rated Current | 300 A | |
| Rated Voltage(AC) | 600 V | |
| Rated Voltage(DC) | 1000 V | |
| Reference Standard | CE; IEC; UL; VDE | |
| Surface Mount | NO | |
| Terminal Shape | TAB/BLADE | |
| Trip Time or Delay | 720 s |
