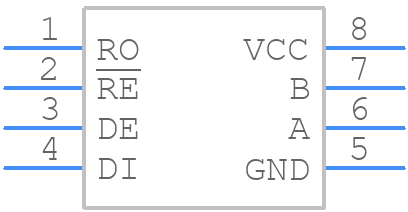

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SP485CN-L by MaxLinear Inc
Results Overview of SP485CN-L by MaxLinear Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SP485CN-L Information
SP485CN-L by MaxLinear Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SP485CN-L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1016-1167-5-ND
|
DigiKey | IC TRANSCEIVER HALF 1/1 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Tube |
4431 In Stock |
|
$0.2678 / $0.6100 | Buy Now |
|
DISTI #
SP485CN-L
|
Avnet Americas | RS-485 5MBPS HALF-DUPLEX TRANSCEIVER, 5V - Rail/Tube (Alt: SP485CN-L) RoHS: Compliant Min Qty: 98 Package Multiple: 98 Lead time: 5 Weeks, 0 Days Container: Tube | 0 |
|
$0.2166 / $0.2546 | Buy Now |
|
DISTI #
701-SP485CN-L
|
Mouser Electronics | RS-422/RS-485 Interface IC RS485 5000 kbps temp 0C to 70C RoHS: Compliant | 336 |
|
$0.2500 / $0.6100 | Buy Now |
|
|
Future Electronics | SP485 Series 5 Mbps 5 V Low Power Half Duplex RS-485 Transceiver - NSOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 1274 Package Multiple: 98 Lead time: 12 Weeks Container: Tube | 0Tube |
|
$0.2300 / $0.2600 | Buy Now |
|
DISTI #
SP485CN-L
|
TME | IC: interface, transceiver, half duplex,RS422,RS485, 5Mbps, SO8 Min Qty: 1 | 862 |
|
$0.3400 / $0.5000 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 98 | 1764 |
|
$0.3769 / $0.4083 | Buy Now |
Part Details for SP485CN-L
SP485CN-L CAD Models
SP485CN-L Part Data Attributes
|
|
SP485CN-L
MaxLinear Inc
Buy Now
Datasheet
|
Compare Parts:
SP485CN-L
MaxLinear Inc
Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, BICMOS, PDSO8, SOIC-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MAXLINEAR INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | MaxLinear, Inc. | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-422; EIA-485 | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 1.5 V | |
| Output Low Current-Max | 0.004 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 200 ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 60 ns | |
| Width | 3.9 mm |
