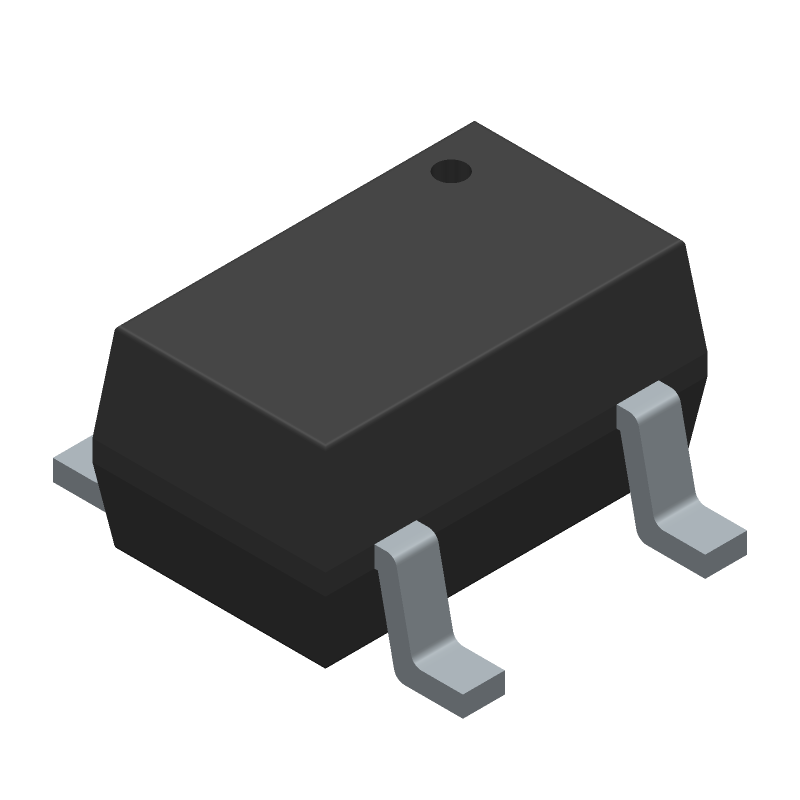

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SP1002-02JTG by Littelfuse Inc
Results Overview of SP1002-02JTG by Littelfuse Inc
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SP1002-02JTG Information
SP1002-02JTG by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SP1002-02JTG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64R7516
|
Newark | Transient Voltage Suppressor, Tvs, Spa Sp1002 Series, Bidirectional, 6 V, Sc-70, 5 Rohs Compliant: Yes |Littelfuse SP1002-02JTG RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1180 / $0.1920 | Buy Now |
|
DISTI #
F4238CT-ND
|
DigiKey | TVS DIODE 6VWM 16VC SC705 Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2249 In Stock |
|
$0.1143 / $0.4100 | Buy Now |
|
DISTI #
576-SP1002-02JTG
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 2 Ch 8kV 5V TVS Diode Array RoHS: Compliant | 6370 |
|
$0.1140 / $0.4000 | Buy Now |
|
DISTI #
V72:2272_06478379
|
Arrow Electronics | ESD Suppressor TVS Bi-Dir 6V 5-Pin SC-70 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2503 Container: Cut Strips | Americas - 6000 |
|
$0.1172 / $0.2988 | Buy Now |
|
|
Future Electronics | SP1002 Series 13 V 5 pF Bi-Directional SMT ESD Protection Array - SC-70-5 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks Container: Reel | 9000Reel |
|
$0.1180 / $0.1240 | Buy Now |
|
DISTI #
87721238
|
Verical | ESD Suppressor TVS Bi-Dir 6V 5-Pin SC-70 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 51 Package Multiple: 1 Date Code: 2503 | Americas - 6000 |
|
$0.1172 / $0.2345 | Buy Now |
|
DISTI #
88137681
|
Verical | ESD Suppressor TVS Bi-Dir 6V 5-Pin SC-70 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2512 | Americas - 6000 |
|
$0.2017 | Buy Now |
|
DISTI #
36532802
|
Verical | ESD Suppressor TVS Bi-Dir 6V 5-Pin SC-70 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 758 Package Multiple: 1 Date Code: 1901 | Americas - 2242 |
|
$0.3920 | Buy Now |
|
DISTI #
81004315
|
Verical | ESD Suppressor TVS Bi-Dir 6V 5-Pin SC-70 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 224 Package Multiple: 1 | Americas - 1197 |
|
$0.1980 / $0.2860 | Buy Now |
|
|
Bristol Electronics | 2315 |
|
RFQ |
Part Details for SP1002-02JTG
SP1002-02JTG CAD Models
SP1002-02JTG Part Data Attributes
|
|
SP1002-02JTG
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
SP1002-02JTG
Littelfuse Inc
Trans Voltage Suppressor Diode, 6V V(RWM), Bidirectional, 4 Element, Silicon, MO-203AA, MO-203, SC-70, 5 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Part Package Code | SC-70 | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | LOW CAPACITANCE | |
| Clamping Voltage-Max | 11.2 V | |
| Configuration | 2 BANKS, COMMON ANODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | MO-203AA | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Number of Elements | 4 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 6 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
SP1002-02JTG Frequently Asked Questions (FAQ)
-
The recommended PCB layout and land pattern for the SP1002-02JTG can be found in the Littelfuse application note AN9313. It provides guidelines for optimal PCB design, including pad sizes, spacing, and thermal considerations.
-
The SP1002-02JTG is designed to handle high surge currents. According to Littelfuse, it can withstand surge currents up to 100A (8/20μs) and 200A (10/1000μs). However, it's essential to consult the datasheet and application notes for specific surge current handling capabilities.
-
The SP1002-02JTG has an operating temperature range of -40°C to 150°C. As the temperature increases, the device's performance may be affected, including changes in leakage current, capacitance, and surge current handling. Consult the datasheet for specific temperature-related performance characteristics.
-
The SP1002-02JTG is suitable for high-frequency applications up to 1 GHz. However, its performance may degrade at higher frequencies due to parasitic inductance and capacitance. Consult the datasheet and application notes for specific high-frequency performance characteristics and limitations.
-
The SP1002-02JTG provides ESD protection up to ±30kV (IEC 61000-4-2) and meets the requirements of IEC 61000-4-5 for surge protection. Compared to other TVS diodes, the SP1002-02JTG offers high surge current handling and low clamping voltage, making it suitable for high-reliability applications.
