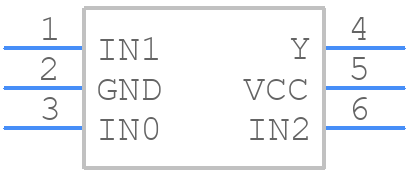

Part Symbol
-
Footprint
-

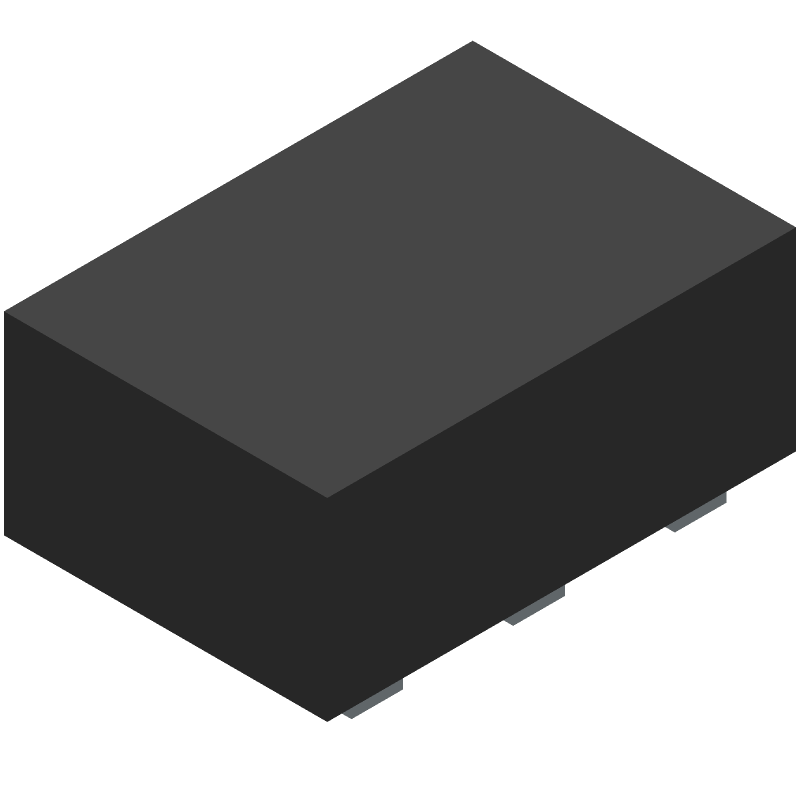

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LVC1G97DRYR by Texas Instruments
Results Overview of SN74LVC1G97DRYR by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74LVC1G97DRYR Information
SN74LVC1G97DRYR by Texas Instruments is an Other Logic IC.
Other Logic ICs are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVC1G97DRYR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-29874-1-ND
|
DigiKey | IC MF CFG 1-CIR 3-IN 6SON Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
9403 In Stock |
|
$0.0770 / $0.2200 | Buy Now |
|
DISTI #
595-SN74LVC1G97DRYR
|
Mouser Electronics | Logic Gates Config Mult-Function Gate RoHS: Compliant | 11521 |
|
$0.0740 / $0.2200 | Buy Now |
|
DISTI #
V72:2272_07352869
|
Arrow Electronics | Multi Function Gate 1-Element 2-IN CMOS 6-Pin USON T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2233 Container: Cut Strips | Americas - 3 |
|
$0.0740 / $0.1106 | Buy Now |
|
|
Rochester Electronics | SN74LVC1G97 Configurable Multiple-Function Gate RoHS: Compliant Status: Active Min Qty: 1 | 240 |
|
$0.0599 / $0.0966 | Buy Now |
|
DISTI #
SN74LVC1G97DRYR
|
TME | IC: digital, configurable,multiple-function, IN: 3, CMOS, SMD, SON6 Min Qty: 3 | 0 |
|
$0.1920 / $0.3600 | RFQ |
|
|
Win Source Electronics | IC CONFIG MULTI-FUNC GATE 6SON | 147700 |
|
$0.0923 / $0.1384 | Buy Now |
Part Details for SN74LVC1G97DRYR
SN74LVC1G97DRYR CAD Models
SN74LVC1G97DRYR Part Data Attributes
|
|
SN74LVC1G97DRYR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVC1G97DRYR
Texas Instruments
Configurable Multiple-Function Gate 6-SON -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SON | |
| Package Description | GREEN, SON-6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-N6 | |
| JESD-609 Code | e4 | |
| Length | 1.45 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | LOGIC CIRCUIT | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 3 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSON | |
| Package Equivalence Code | SOLCC6,.04,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.01 mA | |
| Prop. Delay@Nom-Sup | 9.3 ns | |
| Propagation Delay (tpd) | 16.4 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 0.6 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1 mm |
SN74LVC1G97DRYR Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74LVC1G97DRYR is 150 MHz.
-
Yes, the SN74LVC1G97DRYR is compatible with both 3.3V and 5V systems, making it a versatile component for various applications.
-
The propagation delay of the SN74LVC1G97DRYR is approximately 3.5 ns.
-
Yes, the SN74LVC1G97DRYR is suitable for high-speed applications due to its low propagation delay and high operating frequency.
-
The power consumption of the SN74LVC1G97DRYR is relatively low, with a typical quiescent current of 10 μA.
