SN74LVC08APWRG3 by: Texas Instruments

Four-channel two-input 1.65V to 3.6V AND gate 14-TSSOP -40 to 125

Part Details for SN74LVC08APWRG3 by Texas Instruments

Results Overview of SN74LVC08APWRG3 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Financial Technology (Fintech) Healthcare

SN74LVC08APWRG3 Information

SN74LVC08APWRG3 by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for SN74LVC08APWRG3

Part # Distributor Description Stock Price Buy
DISTI # 2156-SN74LVC08APWRG3-ND
DigiKey IC GATE AND 4CH 2-INP 14TSSOP Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT 9592
In Stock
  • 1,409 $0.2100
$0.2100 Buy Now
DISTI # 296-31897-1-ND
DigiKey IC GATE AND 4CH 2-INP 14TSSOP Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 5746
In Stock
  • 1 $0.4800
  • 10 $0.3390
  • 25 $0.3032
  • 100 $0.2633
  • 250 $0.2442
  • 500 $0.2327
  • 1,000 $0.2249
  • 2,000 $0.2155
  • 4,000 $0.2091
  • 6,000 $0.2059
  • 10,000 $0.2023
  • 14,000 $0.2003
  • 20,000 $0.1983
  • 50,000 $0.1940
$0.1940 / $0.4800 Buy Now
DISTI # 595-SN74LVC08APWRG3
Mouser Electronics Logic Gates Quad 2-Inp Pos-AND G ate RoHS: Compliant 5479
  • 1 $0.2900
  • 10 $0.2160
  • 25 $0.2020
  • 100 $0.1860
  • 250 $0.1740
  • 1,000 $0.1710
  • 2,000 $0.1640
  • 10,000 $0.1620
  • 20,000 $0.1590
$0.1590 / $0.2900 Buy Now
DISTI # V72:2272_07352173
Arrow Electronics AND Gate 4-Element 2-IN CMOS 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2237 Container: Cut Strips Americas - 769
  • 1 $0.1748
  • 10 $0.1599
  • 25 $0.1554
  • 100 $0.1553
  • 250 $0.1552
$0.1552 / $0.1748 Buy Now
DISTI # 86028439
Verical AND Gate 4-Element 2-IN CMOS 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 1765 Package Multiple: 1 Date Code: 1001 Americas - 7593
  • 1,765 $0.2125
  • 10,000 $0.1895
  • 100,000 $0.1588
$0.1588 / $0.2125 Buy Now
DISTI # 88046083
Verical AND Gate 4-Element 2-IN CMOS 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 1765 Package Multiple: 1 Americas - 1999
  • 1,765 $0.2125
  • 10,000 $0.1895
  • 100,000 $0.1588
$0.1588 / $0.2125 Buy Now
Rochester Electronics SN74LVC08A Quadruple 2-Input Positive-AND Gate RoHS: Compliant Status: Active Min Qty: 1 9592
  • 100 $0.2048
  • 500 $0.1843
  • 1,000 $0.1700
  • 10,000 $0.1516
  • 100,000 $0.1270
$0.1270 / $0.2048 Buy Now
DISTI # SN74LVC08APWRG3
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 1836
  • 5 $0.1760
  • 50 $0.1750
  • 500 $0.1730
  • 1,000 $0.1690
  • 32,000 $0.1480
  • 128,000 $0.1470
$0.1470 / $0.1760 Buy Now
Win Source Electronics IC GATE AND 4CH 2-INP 14-TSSOP 111460
  • 410 $0.0818
  • 875 $0.0765
  • 1,355 $0.0739
  • 1,945 $0.0687
  • 2,530 $0.0660
  • 3,160 $0.0633
$0.0633 / $0.0818 Buy Now

Part Details for SN74LVC08APWRG3

SN74LVC08APWRG3 CAD Models

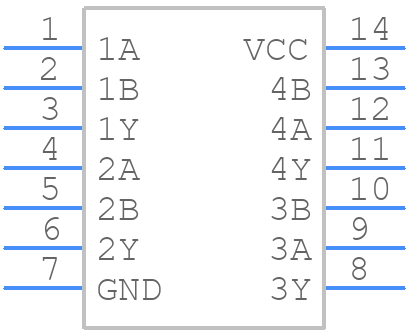

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SN74LVC08APWRG3 Part Data Attributes

Parametric Data
SN74LVC08APWRG3 Texas Instruments
Buy Now Datasheet
Compare Parts:
SN74LVC08APWRG3 Texas Instruments Four-channel two-input 1.65V to 3.6V AND gate 14-TSSOP -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code TSSOP
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Date Of Intro 1993-04-01
Samacsys Manufacturer Texas Instruments
Family LVC/LCX/Z
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 5 mm
Load Capacitance (CL) 50 pF
Logic IC Type AND GATE
Max I(ol) 0.024 A
Moisture Sensitivity Level 1
Number of Functions 4
Number of Inputs 2
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TR, 13 INCH
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.04 mA
Prop. Delay@Nom-Sup 5.5 ns
Propagation Delay (tpd) 11.3 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 1.2 mm
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 1.65 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 mm

Alternate Parts for SN74LVC08APWRG3

This table gives cross-reference parts and alternative options found for SN74LVC08APWRG3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVC08APWRG3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SN74LVC08APWRG4 Texas Instruments $0.1041 Four-channel two-input 1.65V to 3.6V AND gate 14-TSSOP -40 to 125 SN74LVC08APWRG3 vs SN74LVC08APWRG4
74LVC08APW,112 Nexperia $0.1519 74LVC08A - Quad 2-input AND gate@en-us TSSOP 14-Pin SN74LVC08APWRG3 vs 74LVC08APW,112
74LVC08APWDH-T NXP Semiconductors Check for Price IC LVC/LCX/Z SERIES, QUAD 2-INPUT AND GATE, PDSO14, Gate SN74LVC08APWRG3 vs 74LVC08APWDH-T
74LVC08ATTR STMicroelectronics Check for Price LVC/LCX/Z SERIES, QUAD 2-INPUT AND GATE, PDSO14, TSSOP-14 SN74LVC08APWRG3 vs 74LVC08ATTR
74LVC08APW/G,118 NXP Semiconductors Check for Price 74LVC08APW SN74LVC08APWRG3 vs 74LVC08APW/G,118
PI74LVC08AL Pericom Semiconductor Corporation Check for Price AND Gate, LVC/LCX/Z Series, 4-Func, 2-Input, CMOS, PDSO14, 0.173 INCH, PLASTIC, TSSOP-14 SN74LVC08APWRG3 vs PI74LVC08AL
935250040112 Nexperia Check for Price AND Gate, LVC/LCX/Z Series, 4-Func, 2-Input, CMOS, PDSO14 SN74LVC08APWRG3 vs 935250040112
74LVC08APW-Q100 NXP Semiconductors Check for Price LVC/LCX/Z SERIES, QUAD 2-INPUT AND GATE, PDSO14, 4.40 MM, PLASTIC, MO-153, SOT402-1, TSSOP-14 SN74LVC08APWRG3 vs 74LVC08APW-Q100
74LVC08APW-T NXP Semiconductors Check for Price IC LVC/LCX/Z SERIES, QUAD 2-INPUT AND GATE, PDSO14, Gate SN74LVC08APWRG3 vs 74LVC08APW-T
Part Number Manufacturer Composite Price Description Compare
74LVC10APW,118 Nexperia $0.1316 74LVC10A - Triple 3-input NAND gate@en-us TSSOP 14-Pin SN74LVC08APWRG3 vs 74LVC10APW,118
SN74LVC08APWE4 Texas Instruments Check for Price Quadruple 2-Input Positive-AND Gate 14-TSSOP -40 to 125 SN74LVC08APWRG3 vs SN74LVC08APWE4
SN74LVC02D Texas Instruments Check for Price Quadruple 2-Input Positive-NOR Gate 14-SOIC -40 to 85 SN74LVC08APWRG3 vs SN74LVC02D
SN74ALVC00DE4 Texas Instruments Check for Price 4-ch, 2-input, 1.65-V to 3.6-V NAND gates 14-SOIC -40 to 85 SN74LVC08APWRG3 vs SN74ALVC00DE4
74LCX02SJ Fairchild Semiconductor Corporation Check for Price Low Voltage Quad 2-Input NOR Gate with 5V Tolerant Inputs, 14LD,SOP,EIAJ TYPE II, 5.3MM WIDE, 47/RAIL SN74LVC08APWRG3 vs 74LCX02SJ
74LVC02AD,118 NXP Semiconductors Check for Price 74LVC02A - Quad 2-input NOR gate SOIC 14-Pin SN74LVC08APWRG3 vs 74LVC02AD,118
PI74LVC08AW Pericom Semiconductor Corporation Check for Price AND Gate, LVC/LCX/Z Series, 4-Func, 2-Input, CMOS, PDSO14, 0.150 INCH, PLASTIC, SOIC-14 SN74LVC08APWRG3 vs PI74LVC08AW
SN74LVC02ADT Texas Instruments Check for Price LVC/LCX/Z SERIES, QUAD 2-INPUT NOR GATE, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 SN74LVC08APWRG3 vs SN74LVC02ADT
PI74LVC02AWE Pericom Semiconductor Corporation Check for Price NOR Gate, LVC/LCX/Z Series, 4-Func, 2-Input, CMOS, PDSO14, 0.150 INCH, PLASTIC, SOIC-14 SN74LVC08APWRG3 vs PI74LVC02AWE
74LVC02ADR2G onsemi Check for Price Low Voltage CMOS Quad 2-Input NOR Gate, 2500-REEL SN74LVC08APWRG3 vs 74LVC02ADR2G

SN74LVC08APWRG3 Related Parts

SN74LVC08APWRG3 Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the SN74LVC08APWRG3 is typically 100 MHz, but it can vary depending on the specific application and operating conditions.

  • To ensure signal integrity, use proper PCB design techniques, such as using short signal traces, minimizing impedance mismatches, and adding termination resistors as needed.

  • Yes, the SN74LVC08APWRG3 is compatible with 3.3V systems, as it operates from 1.65V to 5.5V.

  • The power consumption of the SN74LVC08APWRG3 depends on the operating frequency and input signals, but typically it is around 10-20 μA per gate.

  • The SN74LVC08APWRG3 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device.
